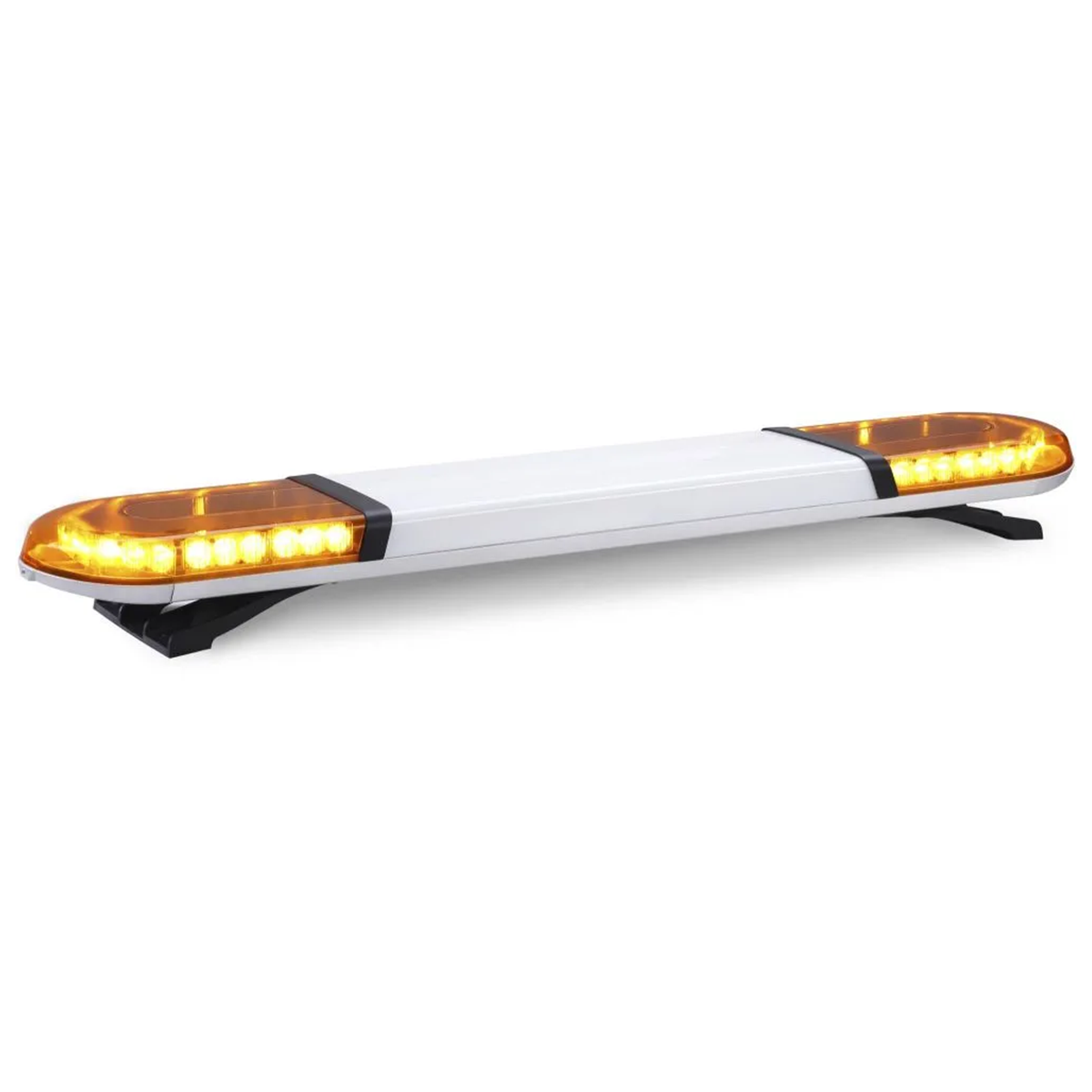

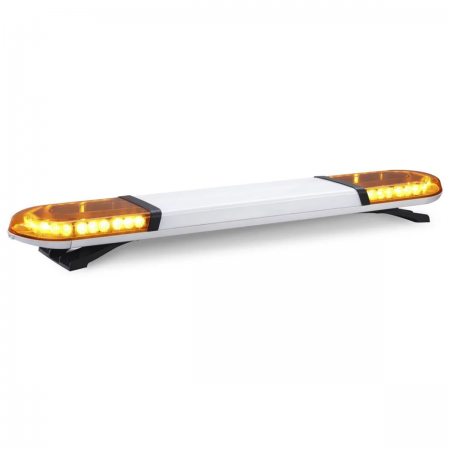

Instructor ramp Air Ambre - 1194mm 12/24V
Ref.
SY540
This low-profile LED strip light provides even illumination thanks to a dedicated LED strip in the central panel. Robust and economical. Its aluminum chassis ensures excellent heat dissipation, while the polycarbonate caps and full encapsulation resist humidity, vibration and corrosion. 19 flash modes, operation from -30 °C to +65 °C.
SY540
Low-profile design, high-quality, economical ramp. An LED strip ensures even illumination of the central panel.
Several lengths to choose from, suitable for different applications.
A 4-wire harness allows simple control of functions.
Excellent heat dissipation thanks to the aluminum chassis.
Robust, durable structure with polycarbonate caps.
Fully encapsulated to resist humidity, vibration and corrosion.
Lighting features :
- Light source: 2 rings of 21 x 3W powerleds
- Independent central panel backlighting
- 19 flash modes
Electrical characteristics:
- Supply voltage: 10-33V
- Max. power consumption: Signaling: 70W
Physical characteristics:
- Length: 1194mm
- Base: aluminum profile
- Covers/panel: PMMA
- Mounting: clamps
- Protection rating: IP67
- Operating temperature : -30°C to +65° C
Approvals :
- ECE R65 Class 1
- ECE Reg.10
Other lengths and configurations on request
