☀️ PROMO SUMMER
Simrad

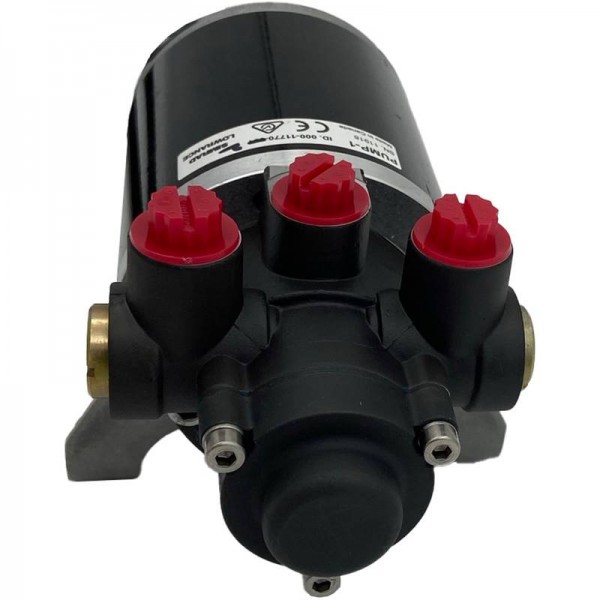

POMPE-1 12V 0,8L for PILOTE H-B

Ref. NA893

The Simrad PUMP-1 12 V hydraulic pump is designed for use with autopilots on out--board boats equipped with hydraulic steering. Reversible and compact, it is suitable for balanced cylinders ranging from 100 to 180 cm³ and compatible SeaStar manual rudder pumps. It has a capacity of 0.8 L and includes three ORB fittings—-, and 5 to 9/16 UNF—to facilitate installation. Model: 000-11770-002

€616.58 Tax included
-17%
€691.95
🤩 Summer Sale
€691.95
€567.58
with the code SUMMER26
-17%
Offre valable encore
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
OUT OF STOCK
616 loyalty points Earn €6.16 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
NA893

Data sheet

Description

SIMRAD - PUMP-1 - HYDRAULIC PUMP FOR Autopilot OUTBOARD-

The Simrad PUMP-1 is installed on outboard-boats equipped with hydraulic steering. When paired with the NAC-1 control unit, it activates the cylinder to adjust the engine’s angle based on the autopilot ’s corrections. It is compatible with balanced cylinders ranging from 100 to 180 CC and boats up to 10 meters in length.

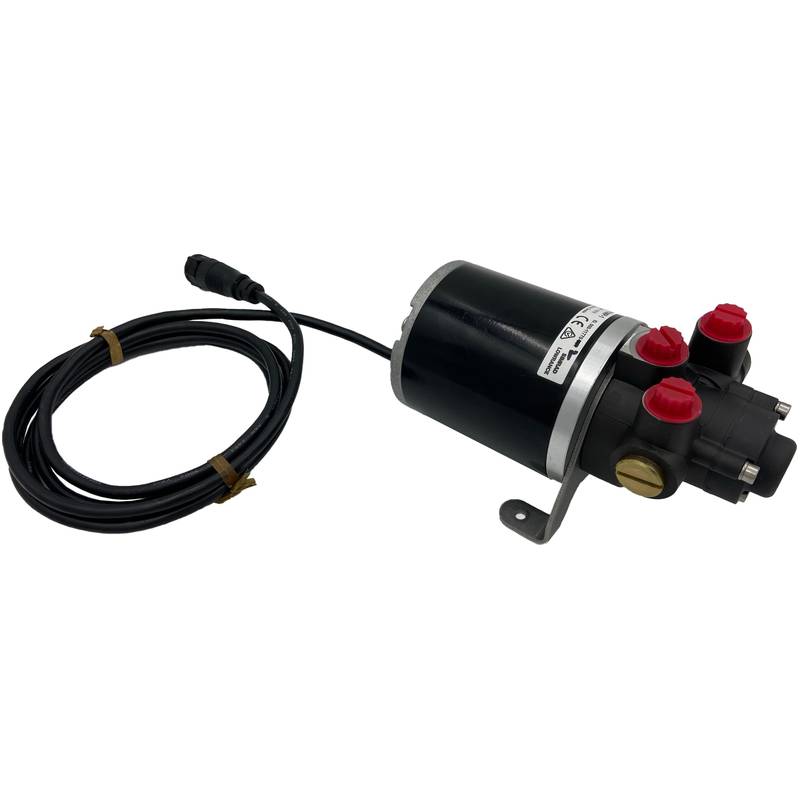

Pompe Hydraulique Pump-1 12V 0.8L pour PILOTE H-B

A REVERSIBLE PUMP FOR HYDRAULIC STEERING

The PUMP-1 is installed in the hydraulic steering circuit. Each time a correction is requested by the autopilot, it circulates oil to the cylinder to steer the engine to port or starboard.

Since it operates in both directions, the pump can adjust the heading as the vessel navigates. The boat thus follows the programmed course without the need for constant corrections at the helm.

  • Reversible hydraulic pump
  • 12 V power supply
  • Hydraulic capacity of 0.8 L
  • Compatible with the NAC-1 controller

This model is suitable for balanced hydraulic cylinders ranging from 100 to 180 CC and for outboard--d boats up to 35 feet, or approximately 10 meters.

How to Choose a Reversible Hydraulic Pump?

PUMP-1PUMP-2 PUMP-3 -PUMP 1 and-PUMP 2
Maximum boat size 35 feet / 10 meters 35 feet / 10 meters 50 feet / 15 meters 70 feet / 21 meters
Maximum boat displacement Not disclosed 7.5 metric tons 15 metric tons 20 metric tons
Recommended jack capacity 100,-,180 CC 80,-, 250 CC 160,-,550 CC 290-960 CC
Recommended Calculator NAC-1 AC12/NAC-2 AC42/NAC-3 AC42/NAC-3
Flow Type Moderate Moderate Moderate High

KEY POINTS:

  • 12 V power supply
  • Hydraulic volume of 0.8 L
  • Reversible operation
  • For boats up to 10 meters
  • For balanced cylinders from 100 to 180 CC

PACKAGE CONTENTS:

  • 1 - PUMP-1
  • 3 - Hydraulic fittings
  • 1 - PDF documentation
