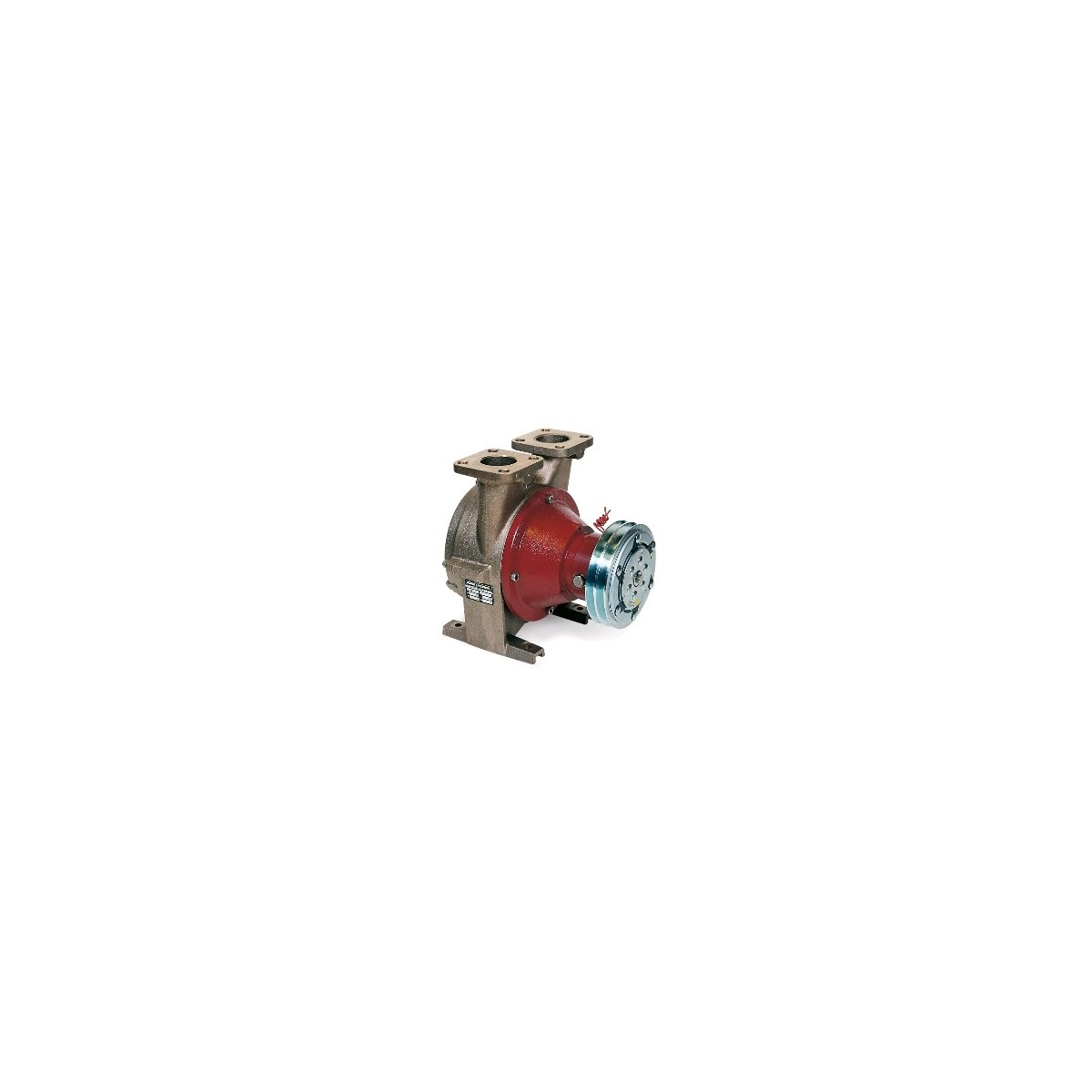

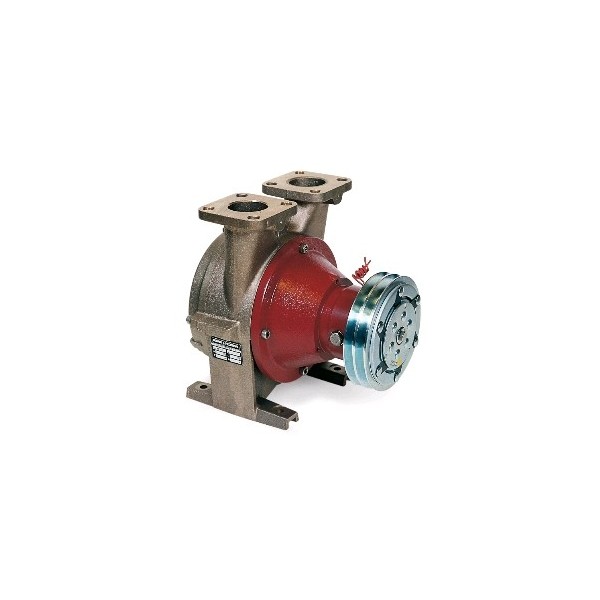

Forani PC40B14 series pump with 24V electromagnetic clutch

Self-priming side channel centrifugal pumps.

PC40B14 pump
With 24V electromagnetic clutch, Ø 152mm pulley, 1 SPB type groove .

• Flow rate up to 22 m3/h.
• Hmt up to 45 mCE.
• Bronze body and impeller.
• Double direction of rotation.
• Stainless steel shaft and screws.
• Mechanical seal.

Freshwater / clean seawater, engine cooling, dewatering, washing, fire-fighting.

Compatible with diesel fuel.

PC25, PC32 and PC40 pumps in 24V, single-phase and three-phase 50 Hz or 60 Hz electro-pump versions on request.

Belt cross-section (lxh): type A groove: 13x8 - type B groove: 17x11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x13.
