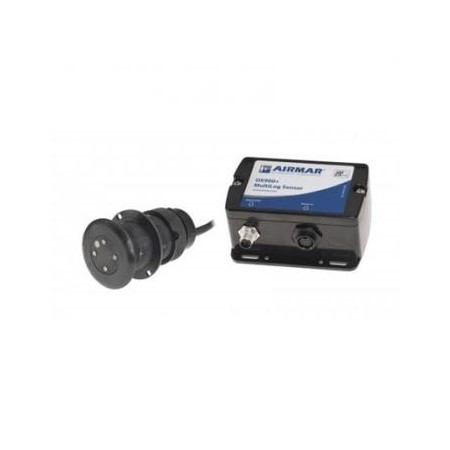

DX900+ D/S/T sensor - 3m cable - Box + Bluetooth - 6m NMEA2000 cable

DX900+ NMEA2000 and bluetooth depth/velocity/temperature sensor

• Measures transverse and longitudinal speed and instantly calculates angle of passage and speed through the water without latency.
• Displays speed, depth (optional) and 2-axis water temperature with no moving parts.
• Offers a lightweight alternative to multiple sensor installation
• Retrofits to existing P617V AIRMAR housing
• Links and shares data via a new CAST AIRMAR ™ app (Bluetooth ® -Enabled)
• Featuring patented Smart Sensor technology Airmar
• Depth frequency: 360kHz
• Depth range: 60m
• Transverse speed range: ± 6 knots
• Longitudinal speed range: ± 60 knots
• Transverse and longitudinal speed accuracy:
• ± 0.1 knots for speeds below 10 knots
• ± 1% for speeds above 10 knots
• Display resolution: 0.01 knots
• Operating temperature: -15°C to 55°C (5°F to 131°F)
• Output: NMEA2000
• Configurable data update rate: up to 10 Hz
• Supply voltage: 9 VDC to 16 VDC
• Average power consumption: 5.0W (DST) / 2.5W (ST)
• Sensor cable length: see brochure for configurations
• Blanking plug: yes
• Weight (sensor, housing and cable): 1 kg
• CE compliant: Yes to IEC60945
