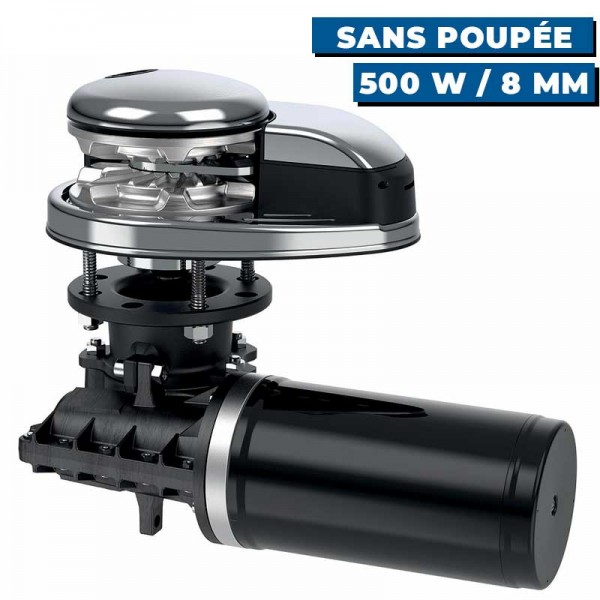

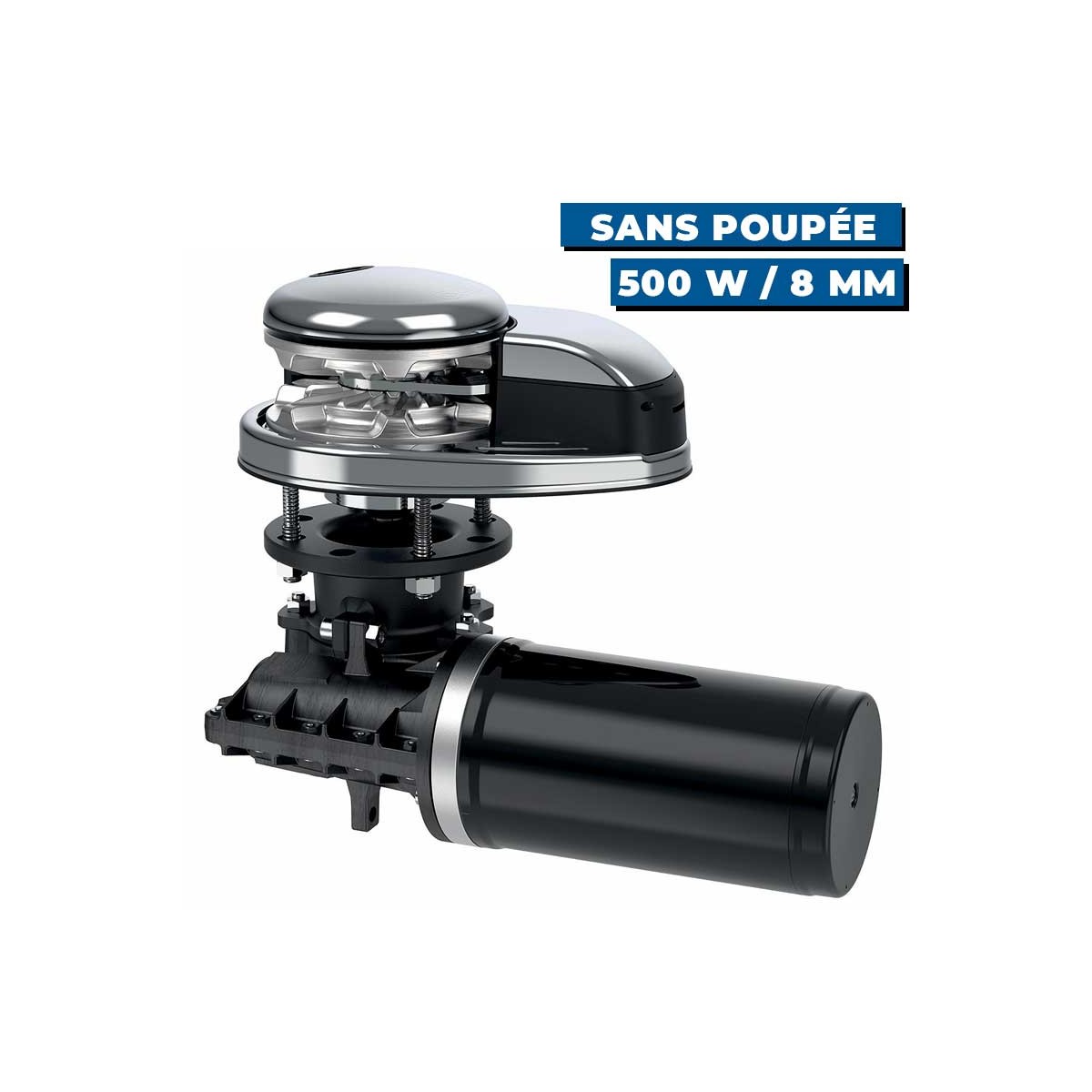

Prince DP2 12V vertical windlass

Name: Prince DP2 12V vertical windlass
Brand: Quick

Suitable for boats from 5 to 13 metres , the electric vertical windlass Quick DP2 P is available in 3 motor power ratings : 500, 700 or 1000 W .You can also choose whether to use it with or without a headstock , depending on your application, as well as the size of the sprocket: for 6 or 8 mm chain.

QUICK- PRINCE DP2 12 V / 500 - 700 - 1 000 W - A WINDLASS WITH MIXED BARTOTIN

The Quick Prince DP2 P is a highly versatile motorized vertical windlass for a wide range of needs and boats. Depending on the size of your boat, the weight of your mooring line or the different mooring situations, you can choose between 3 motor outputs , all available with or without headstock .

It features a mixed sprocket , chain and rope, with a guiding arm for rope line. A chain counter sensor is integrated for improved anchor management.

VERSATILE AND ROBUST

To help you choose the power best suited to your boat, here are a few recommendations from the manufacturer :

For a 5 to 9 m boat: 500 W
For a 7 to 12 m boat: 700 W
For an 8-13 m boat: 1,000 W

The 500 W motor is fitted with an IP66 waterproof housing , while the 700 and 1000 W motors are mounted on IP67 waterproof housings .

The base and headstock are made of AISI 316 stainless steel for maximum resistance to marine conditions.

For full installation instructions, please refer to the enclosed PDF file.

PRINCE DP2 TECHNICAL SPECIFICATIONS

	QP51306	QP51308	QP51406	QP51408	QP71406	QP71408	QP71506	QP71508	QP11406	QP11408	QP11506	QP11508
Doll	❌		✔️		❌		✔️		❌		✔️
Motor power	500 W				700 W				1 000 W
Sprocket: chain (mm)	6 mm	8 mm	6 mm	8 mm	6 mm	8 mm	6 mm	8 mm	6 mm	8 mm	6 mm	8 mm
Voltage	12 V / 80 A				12 V / 95 A				12 V / 130 A
Pull-out force	660 kg				680 kg				930 kg
Max. lifting force	200 kg				300 kg				420 kg
Lifting force	65 kg				100 kg				140 kg
Lifting speed	28.9 m/min				11.6 m/min				16.5 m/min
Order no. Circuit breaker	QD060								QD080
Bridge thickness	20-30 mm				25-50 mm
Weight	9.8 kg		10.7 kg		15.6 kg		16.3 kg		16.7 kg		17.4 kg

MAIN POINTS :

Vertical windlass
With or without headstock
Inspection cover
IP66 and IP67 waterproof motor
Manual free-fall system
Mixed spool (rope / chain)
Technopolymer transmission
Integrated sensor and magnet for chain counter
Base in AISI 36 stainless steel and hard-oxide anodized aluminum

BOX CONTENTS :

1 - Prince DP2 windlass
1 - Base gasket
1 - Pressure lever
1 - Drilling template
1 - Headstock (depending on model)
1 - Remote reverser box
1 - Mounting screw, top/gearbox
1 - PDF documentation

Download

DP Windlass User Guide

User and installation guide for DP series windlasses Quick

Download (1.36M)
