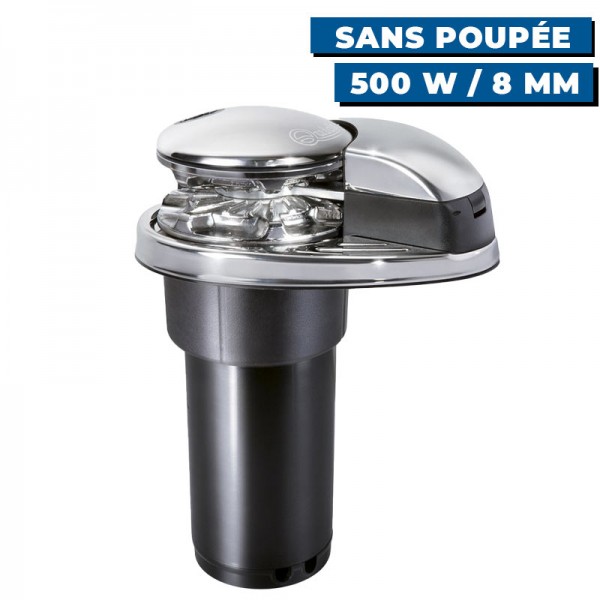

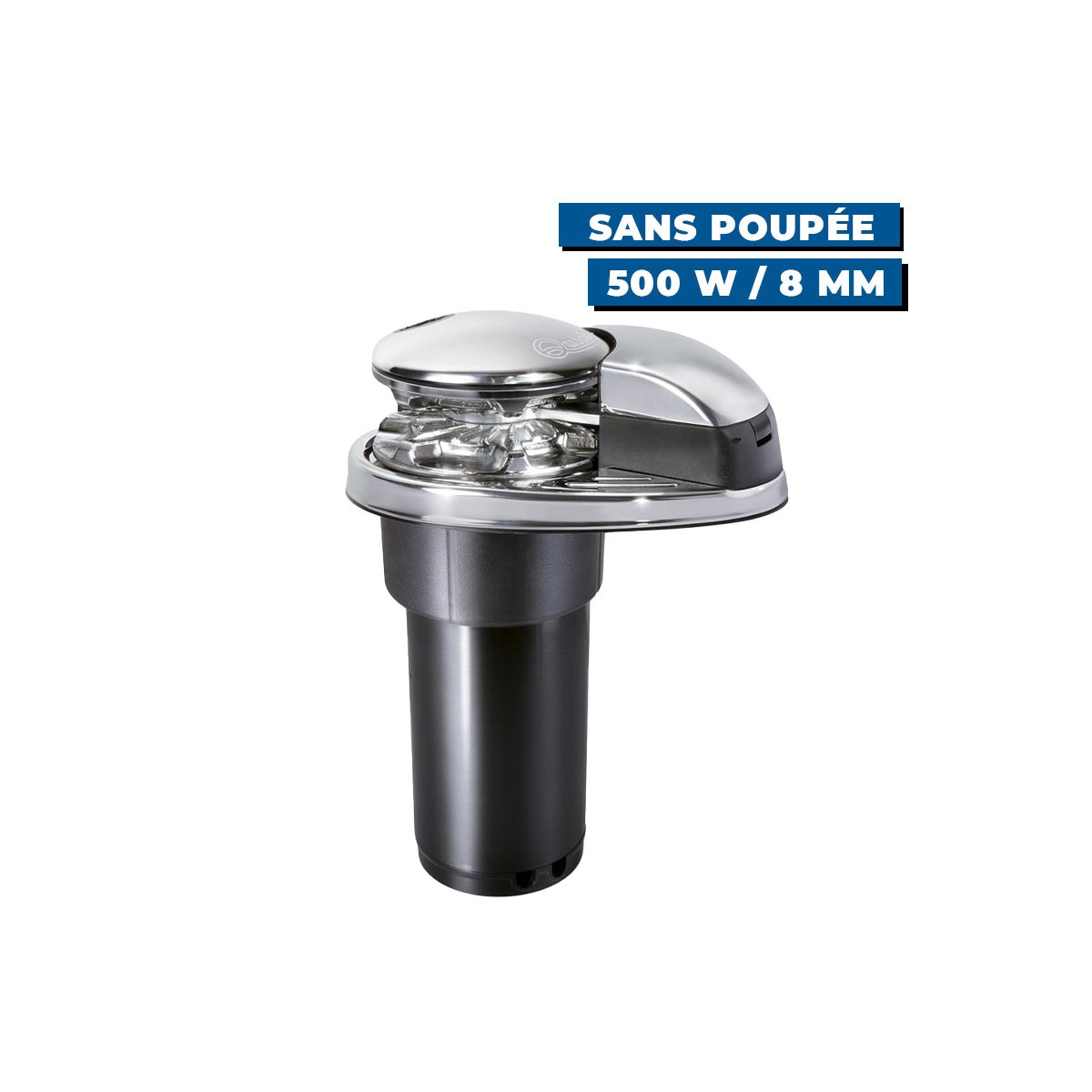

Prince DP2E 12V vertical windlass

Ref. QP61006

The Quick Prince DP2E vertical shaft windlass is suitable for boats between 6 and 12 m . It is available in 500 W or 800 W motor power, with or without headstock .

This model is available in 12 V .

Read more Features
€1,268.90 Tax included
Public price
€1,425.60
-10%
🔥 Black Friday
Public price
€1,425.60
€1,142.10
with the code BLACK24
-19%
Offre valable encore
or pay in
10x 60x
Price tax excl. / DOM TOM €1,057.42
Power / Chain diameter
Model
Quantity
IN SUPPLIER STOCK
Delivery times and costs
By buying this product you can collect up to 1268 loyalty points. Your cart will total 1268 points that can be converted into a voucher of €12.68.
QP61006

Data sheet

Voltage
12V
Product type
Windlass
Power
500 W, 800 W
Doll
With doll, Without doll
Sprocket diameter
6 mm, 8 mm
Description

QUICK- PRINCE DP2E 12 V / 500 - 800 W - A VERTICAL AXIS WINDLASS

The Quick Prince DP2E is a vertical-axis windlass with a planetary gearbox. With this model, you can choose the spool size to suit your mooring line. The mixed rope/chain sprocket is available in 6 mm or 8 mm .

An integrated chain counter sensor facilitates mooring management.
Guindeau vertical quick DP2E

HIGH RESISTANCE TO MARINE CONDITIONS

With its AISI 316 stainless steel base, your windlass is built to last.

An IP66-rated motor housing ensures watertightness.

To help you choose the power best suited to your boat, here are a few recommendations from the manufacturer :

  • For a 6-10 m boat: 500 W
  • For a 7 to 12 m boat: 800 W

You'll find full installation instructions in the enclosed PDF documentation.

PRINCE DP2E TECHNICAL SPECIFICATIONS

QP61006QP61008QP61106QP61108QP81006QP81008QP81106QP81108
Doll ❌ ✔️ ❌ ✔️
Motor power 500 W 800 W
Sprocket: chain (mm) 6 mm 8 mm 6 mm 8 mm 6 mm 8 mm 6 mm 8 mm
Voltage 12 V / 60 A 12 V / 84 A
Pull-out force 620 kg 820 kg
Max. lifting force 200 kg 290 kg
Lifting force 65 kg 95 kg
Lifting speed 18.6 m/min 22.9 m/min 15.2 m/min
Order no. Circuit breaker QD050 QD080
Bridge thickness
20-40 mm
Weight 9.5 kg 10.7 kg 9.5 kg 10.7 kg

MAIN POINTS :

  • Vertical windlass
  • IP66 waterproof motor
  • With or without headstock
  • Inspection cover
  • Supplied with pressure lever
  • Manual free-fall system
  • Anodized aluminum transmission
  • Rope and chain on a single ride
  • Integrated sensor and magnet for chain counter
  • AISI 316 stainless steel and anodized aluminum base

BOX CONTENTS :

  • 1 - Prince DP2E windlass
  • 1 - Base gasket
  • 1 - Pressure lever
  • 1 - Drilling template
  • 1 - Headstock (depending on model)
  • 1 - Remote reverser box
  • 1 - Mounting screw, top/gearbox
  • 1 - PDF documentation

Download

DP2E Windlass User Guide

DP2E Windlass User's Guide Quick

Download (488.16k)
