- -€176.50

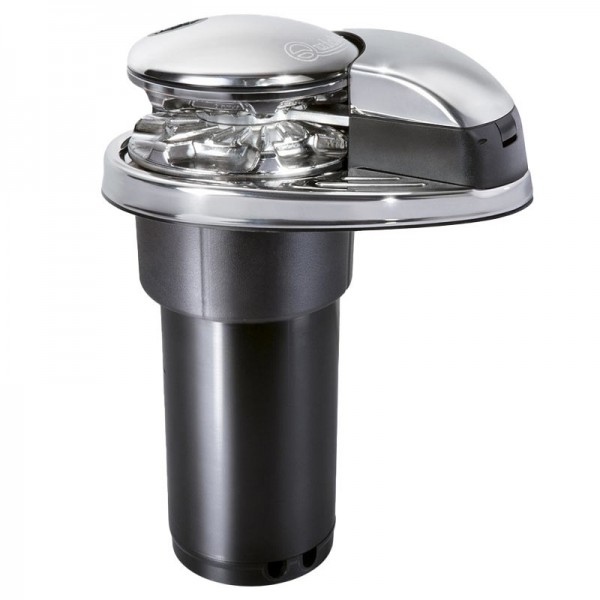

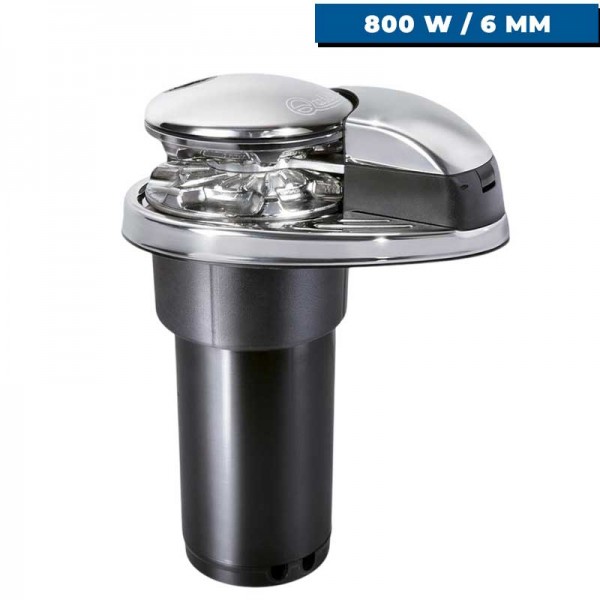

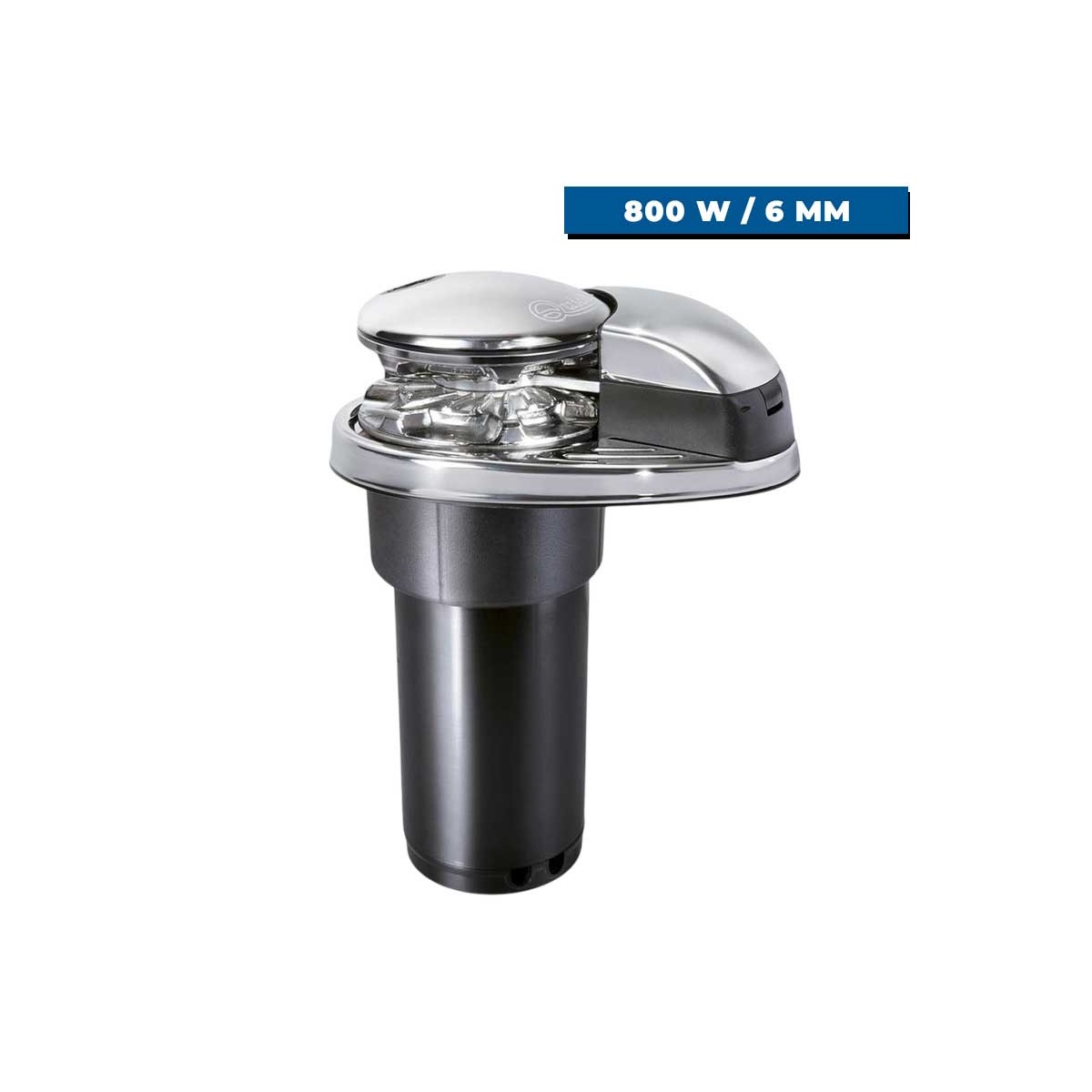

Prince DP2E 24V vertical windlass
Ref.
QP82006
The Quick Prince DP2E vertical shaft windlass is suitable for boats between 6 and 12 m. It is available in 800 W motor power without headstock. This model is 24 V.
🚨 The models offered here are equipped with a left-hand hawse ladder. 🚨
QP82006
Data sheet
- Voltage
- 24V
- Product type
- Windlass
- Power
- 800 W
- Doll
- Without doll
- Sprocket diameter
- 6 mm, 8 mm
QUICK- PRINCE DP2E 24 V / 800 W - A VERTICAL AXIS WINDLASS
The Quick Prince DP2E is a vertical-axis windlass with a planetary gearbox. With this model, you can choose the spool size to suit your mooring line. The mixed rope/chain sprocket is available in 6 mm or 8 mm.
An integrated chain counter sensor facilitates mooring management.
 |
HIGH RESISTANCE TO MARINE CONDITIONSWith its AISI 316 stainless steel base, your windlass is built to last. An IP66-rated motor housing ensures watertightness. To help you choose the power best suited to your boat, here are a few recommendations from the manufacturer :
You'll find full installation instructions in the enclosed PDF documentation. |
PRINCE DP2E TECHNICAL SPECIFICATIONS
| QP82006 | QP82008 | |
|---|---|---|
| Headstock | ❌ | |
| Motor power | 800 W | |
| Sprocket: chain (mm) | 6 mm | 8 mm |
| Voltage | 12 V / 84 A | |
| Pulling force | 820 kg | |
| Max. lifting force | 290 kg | |
| Lifting force | 95 kg | |
| Lifting speed | 16.8 m/min | |
| Order no. Circuit breaker | QD080 | |
| Bridge thickness |
20-40 mm | |
| Weight | 8.3 kg | |
MAIN POINTS :
|
BOX CONTENTS :
|
