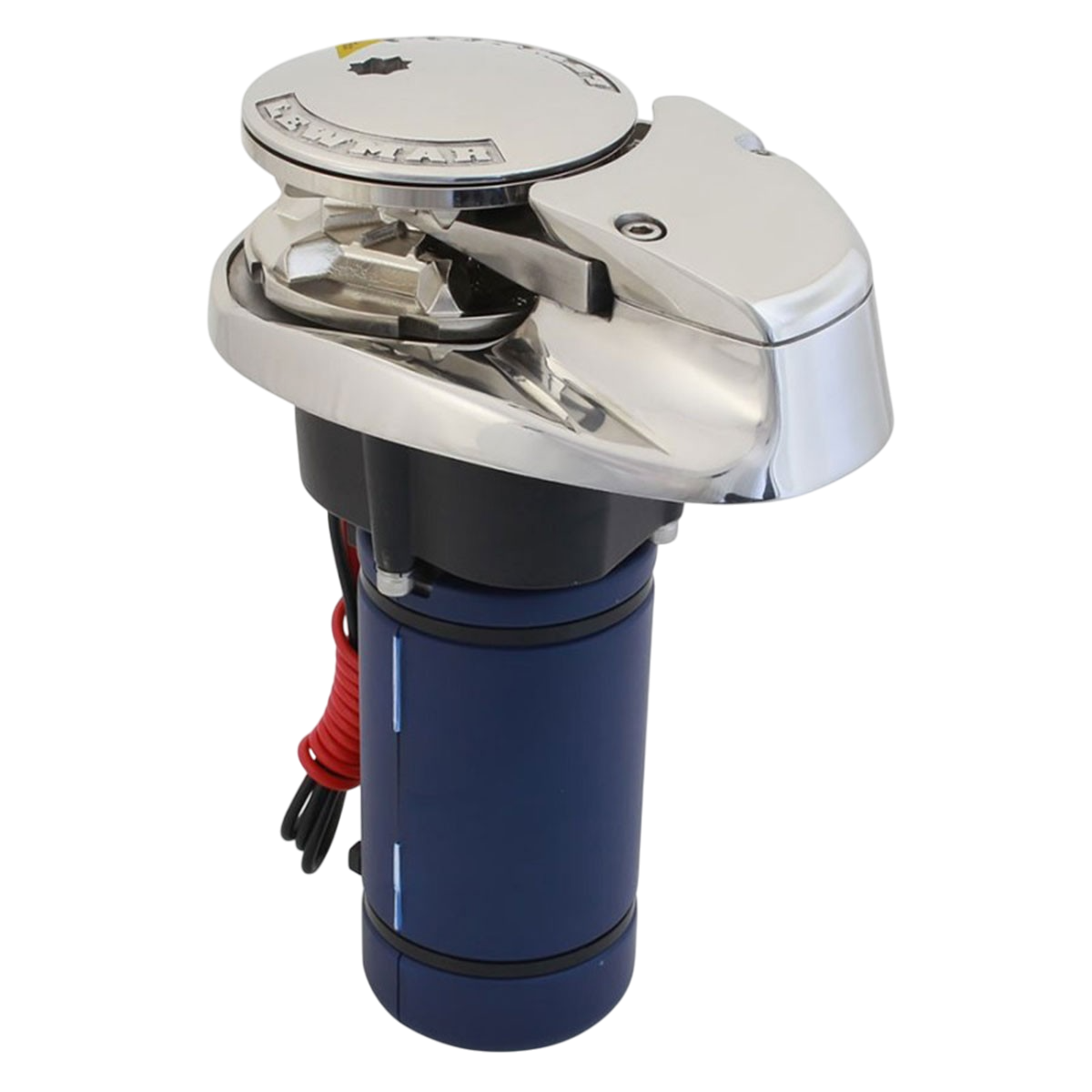

Vertical windlass V700 - 6/7 mm - 12V - 320 W without headstock

Ref. 6670011108-312
1 avis

The V700 vertical windlass boasts an elegant design with flush-mounting concealing an IP67 motor, water-resistant to 1m. It is one of the most attractive and durable products in its class.

The V700 is available in 320 W for a voltage of 12 V, and is suitable for 6 and 7 mm calibrated chains.

Only available without headstock.

Read more Features
€692.90 Tax included
Public price
€729.00
or pay in
10x 60x
Price tax excl. / DOM TOM €577.42
Quantity
IN SUPPLIER STOCK
Delivery times and costs
1 avis
By buying this product you can collect up to 692 loyalty points. Your cart will total 692 points that can be converted into a voucher of €6.92.
6670011108-312

Data sheet

Voltage
12V
Power
320 W
Doll
Without doll
Sprocket diameter
6-7 mm
Description

LEWMAR - VERTICAL WINDLASS V700 6-7MM - 12V - 320 W

The V700 vertical windlass operates very easily at the touch of a button and has two built-in functions that make it unique: motor protection and anchor locking.

What's more, it's made entirely of 316 stainless steel, making it particularly resistant and rustproof.
Guindeau vertical V700 lewmar avec motoréducteur V700

V700: AN AFFORDABLE YET POWERFUL WINDLASS

The V700 vertical windlass requires minimal space in the anchor locker, as its motor is mounted below deck. This takes up less deck space.

It has very few parts for greater reliability, making it ready for installation when you receive it.

You'll find all the installation instructions in the attached PDF file.

V700 WINDLASS TECHNICAL SPECIFICATIONS

V700

66710011108-312

Headstock ❌
Motor power 320 W
Sprocket: chain (mm) 6-7mm
Rope type 12-14 mm
Voltage 12 V
For boats up to up to 10.5 m
Maximum pull 320 kg
Working load limit 79 kg
Normal current draw 45 A
Maximum lifting speed 35 m/min
Circuit breaker 45 A
Weight 6.5 kg

MAIN POINTS :

  • Vertical windlass
  • Without headstock
  • 6-7 mm spool, ISO 4565 standard
  • IP67 geared motor
  • 316 stainless steel deck unit
  • 5-year warranty

BOX CONTENTS :

  • 1 - Windlass V700
  • 1 - Intelligent system of nuts, dowels and washers
  • 1 - Barbotin
  • 1 - IP67 gearmotor
  • 1 - Relay box
  • 1 - Circuit breaker
  • 1 - Rocker switch
  • 1 - Base gasket
  • 1 - Safety instructions
  • 1 - Warranty registration card
  • 1 - Assembly key and "All-in-one" manual lift lever
  • 1 - Instruction manual

Download

Windlass V700 instruction manual

V700 Vertical Windlass PDF User's Manual Lewmar

Download (1.57M)
