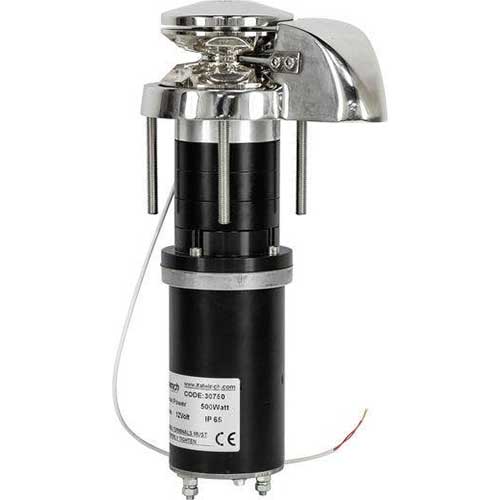

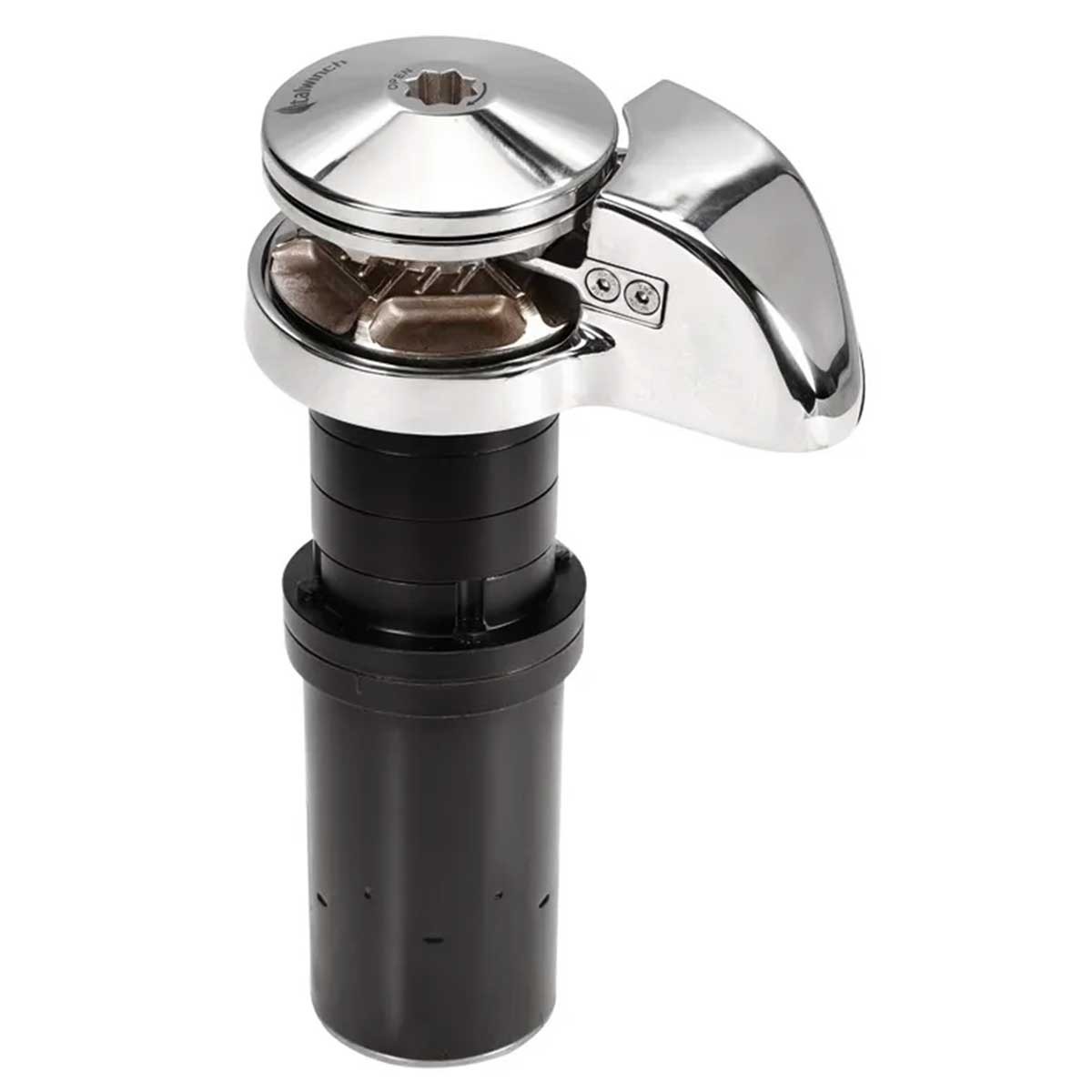

Smart V vertical windlass 500 W 12 V
Ref.
OSC-02.402.01
The Smart V 500 W 12 V vertical windlass makes daily mooring manoeuvres easier and more worry-free on boats up to 8 metres long.
Its compact size is well suited to bows where space is limited, while offering fast and smooth chain retrieval.
| Article |
|
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
OSC-02.402.01
In stock in 8 to 10 days
|
|
€795.75
|
OSC-02.402.01
Data sheet
- Voltage
- 12V
- Power
- 500 W
- Doll
- Without doll
- Sprocket diameter
- 6 mm
Italwinch - Smart V vertical windlass 500 W 12 V
Designed for pleasure boating, the Smart V 500 W 12 V vertical windlass provides smooth, reassuring mooring maneuvering. With its vertical design, it frees up deck space and is easily integrated near the davit.
It accepts a 6 mm chain, offers a retrieve speed of up to 23 m/min and a maximum working load of 270 kg. It's a practical choice for securing anchor maneuvers and saving time at every mooring.
 |
A compact windlass for the deckThe Smart V's vertical configuration is ideal when space is at a premium on the bow. It also helps keep the deck area clear, while maintaining precise anchor handling.
Before installation, we recommend a flat surface, good alignment with the davit and sufficient chain passage to the chain well. |
SMART V WINDLASS TECHNICAL SPECIFICATIONS
| SMART V 500 W | |
|---|---|
| Headstock | ❌ |
| Motor power | 500 W |
| Sprocket: chain (mm) | 6 mm |
| Voltage | 12 V / 60 A |
| Working force | 90 kg |
| Max. working force | 270 kg |
| Max. lifting speed | 23 m/min |
| Bridge thickness |
18-40 mm |
| Rope compatibility | 12 mm 3-strand |
| Weight | 10.4 kg |
