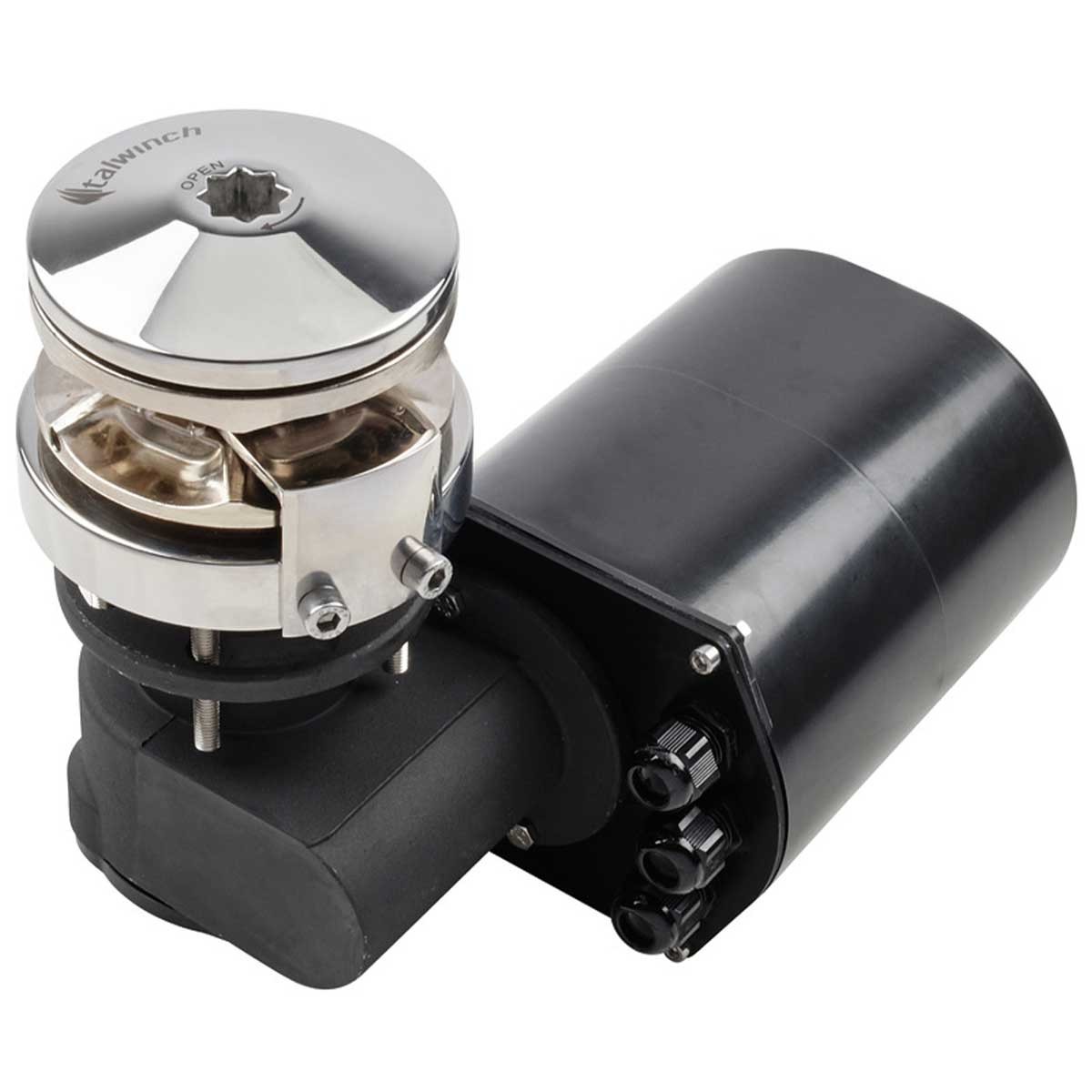

Smart R3 12V 1000 W vertical windlass
Ref.
OSC-02.414.01
The Italwinch Smart R3 12V 1000 W vertical windlass is designed to make daily mooring easier. Its vertical design frees up space on deck while providing smooth traction.
Compatible with 8 mm chain, it makes anchor handling easier and more comfortable on boats up to 16 meters.
| Article |
|
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
OSC-02.414.01
In stock in 8 to 10 days
|
|
€899.60
|
OSC-02.414.01
Data sheet
- Voltage
- 12V
- Power
- 1000 W
- Doll
- Without doll
- Sprocket diameter
- 8 mm

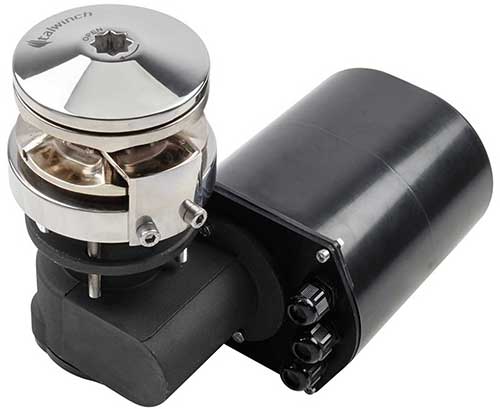

Italwinch - Smart R3 12V 1000 W vertical windlass
The Smart R3 is a vertical electric windlass designed to facilitate anchor handling on board. With a 12V, 1000 W geared motor, it provides the power needed to raise and lower anchors with greater peace of mind.
Its vertical configuration makes for clean integration on deck and more comfortable daily use. This model is designed for 8 mm chain, a common standard on many pleasure boats.
 |
Clean, space-saving installationThe vertical format of the Smart R3 helps to keep the deck uncluttered, while offering an unobtrusive installation. It's an appreciated solution when you want efficient mooring without cluttering up the front of the boat.
Every day, you'll find it easier to anchor and less effort to raise the anchor. |
SMART R3 1000W WINDLASS TECHNICAL SPECIFICATIONS
| Headstock | ❌ |
| Motor power | 1000 W |
| Sprocket: chain (mm) | 8 mm |
| Voltage | 12 V / 115 A |
| Working force | 130 kg |
| Max. pulling force | 1020 kg |
| Max. lifting speed | 25 m/min |

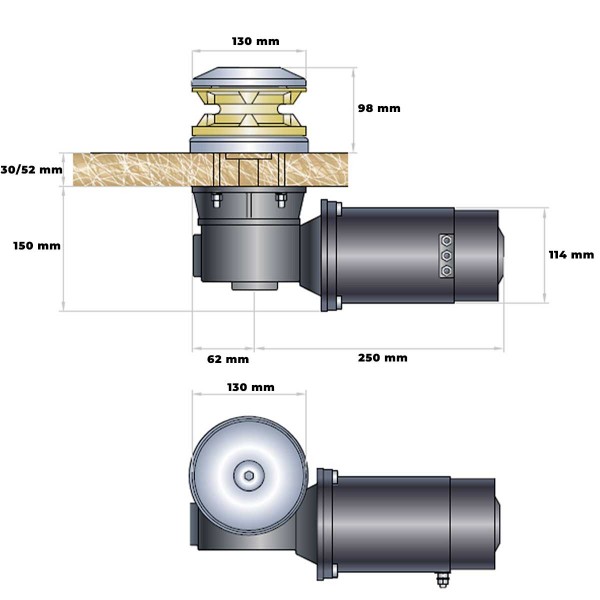

| Deck thickness |
30-52 mm |
| Weight | 16.7 kg |
MAIN POINTS :
|
BOX CONTENTS :
|
