Italwinch

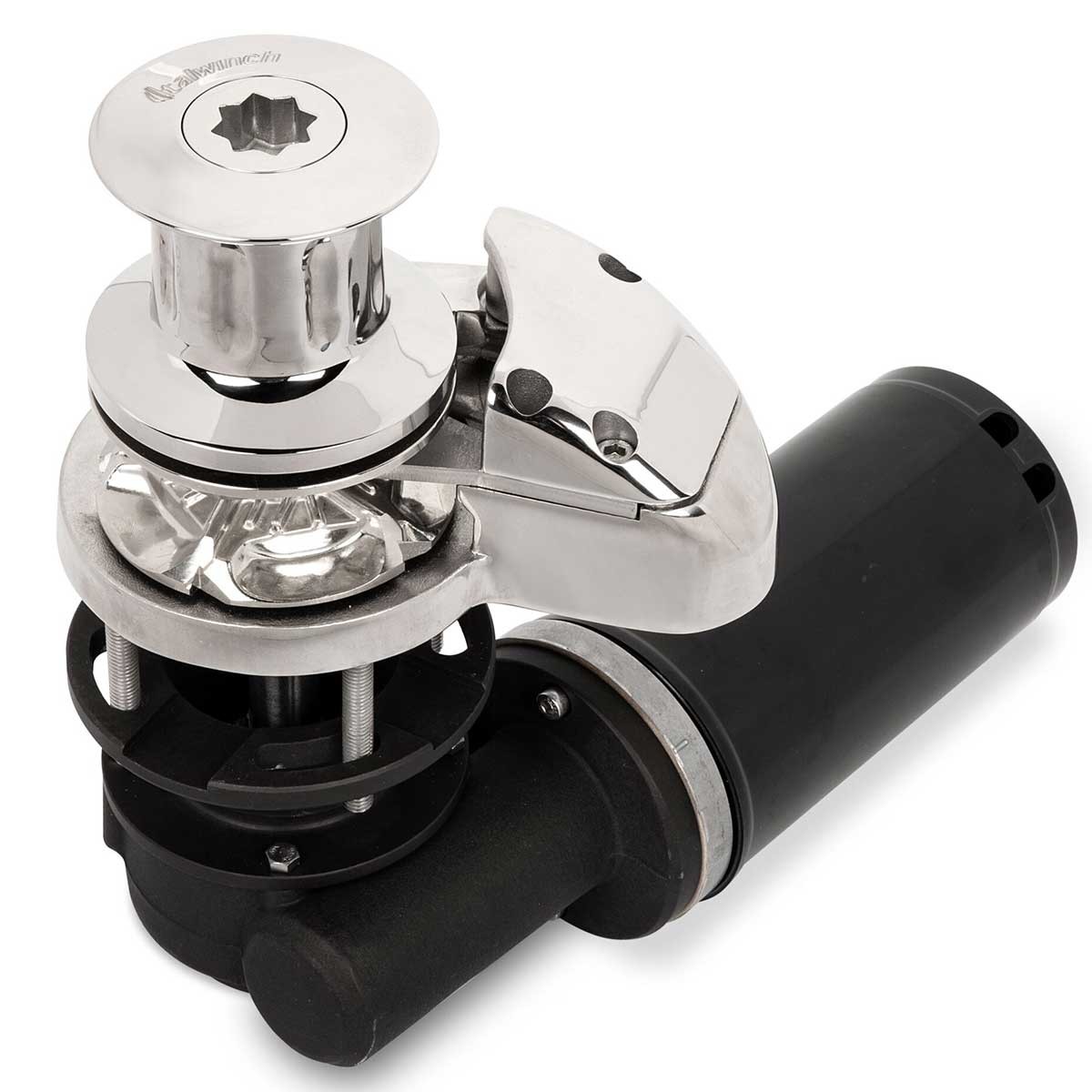

CLS 12V 500W vertical windlass with headstock

Ref. OSC-02.411.31

The CLS 500 W 12 V vertical windlass with headstock simplifies mooring maneuvers on boats where space is at a premium. Designed for a 6 mm chain, it offers fast retrieval at up to 23 m/min and a maximum pull of 650 kg.

Made from AISI 316 stainless steel, it is ideal for boats up to 13 meters long.

from
€696.58 Tax included
-10%
€778.25
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
696 loyalty points Earn €6.96 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Variant Motor - V Motor - W Average consumption A Sprocket Ø chain mm Ø end mm Max. towing capacity kg Working load kg Recovery speed m/min peso
    In stock in 8 to 10 days
    Bottom without bell 12 500 60 6 12 650 90 23 9
    €606.58
    In stock in 8 to 10 days
    Bottom without bell 12 700 90 6 12 750 100 25 9,5/10,5
    €716.58
    In stock in 8 to 10 days
    Bottom without bell 12 700 90 8 12 750 100 25 9,5/10,5
    €716.58
    In stock in 8 to 10 days
    Bottom without bell 12 1000 115 8 14 930 130 26 13/14,5
    €899.92
    In stock in 8 to 10 days
    Haut cloche + barbotin 12 500 60 6 12 650 90 23 9/10
    €696.58
    In stock in 8 to 10 days
    Haut cloche + barbotin 12 1000 115 8 14 930 130 26 13/14,5
    €1,094.00
    OSC-02.411.31

    Data sheet

    Voltage
    12V
    Power
    500 W
    Doll
    With doll
    Sprocket diameter
    6 mm
    Description

    Italwinch - CLS 12V 500W vertical windlass with headstock

    Compact, efficient and designed for pleasure boating, the CLS 500 W vertical windlass helps you to anchor and retrieve anchor with greater peace of mind. With the headstock, you can maneuver the rope without necessarily dragging the chain.

    Compatible with 6 mm chain, it offers a retrieve speed of up to 23 m/min, a working load of 90 kg and a maximum instantaneous pull of up to 650 kg.
    Guindeau vertical CLS 500 W 12 V sans poupée

    Streamlined bow installation

    In its headstock version, the CLS concentrates on chain work, but can also be used to wind up a rope. It's a welcome choice when you want a clearer deck, but still want clean guidance and ease of use at anchor.

    • Version with headstock
    • 6 mm compatible chain
    • Weight: 10 kg
    • Deck thickness 18-35 mm

    For reliable installation, mount your windlass on a flat deck, with the sprocket well aligned with the davit and a free chain passage to the chain well.

    CLS 12V 500W WINDLASS TECHNICAL SPECIFICATIONS

    Headstock ✔️
    Motor power 500 W
    Sprocket: chain (mm) 8 mm
    Rope 12 mm, 3 strands
    Voltage 12 V / 60 A
    Max. pulling capacity 650 kg
    Working load 90 kg
    Lifting speed 23 m/min
    Deck thickness
    		18-35 mm
    Weight 10 kg

    MAIN FEATURES :

    • Headstock version
    • Matching 6 mm chain
    • Integrated chain sensor
    • 60 A circuit breaker recommended
    • 650 kg max. pull
    • Recovery up to 23 m/min

    CONTENTS OF BOX :

    • 1 - Windlass with CLS 12V 500W geared motor
    • 1 - Remote control switch
    • 1 - Drilling template
    • 1 - Lever
    • 1 - Screw kit
    • 1 - PDF documentation

    Download

    CLS windlass manual Italwinch

    CLS vertical windlass manual Italwinch (IT-EN-FR-DE-ES-HR)

    Download (743.74k)
