Italwinch

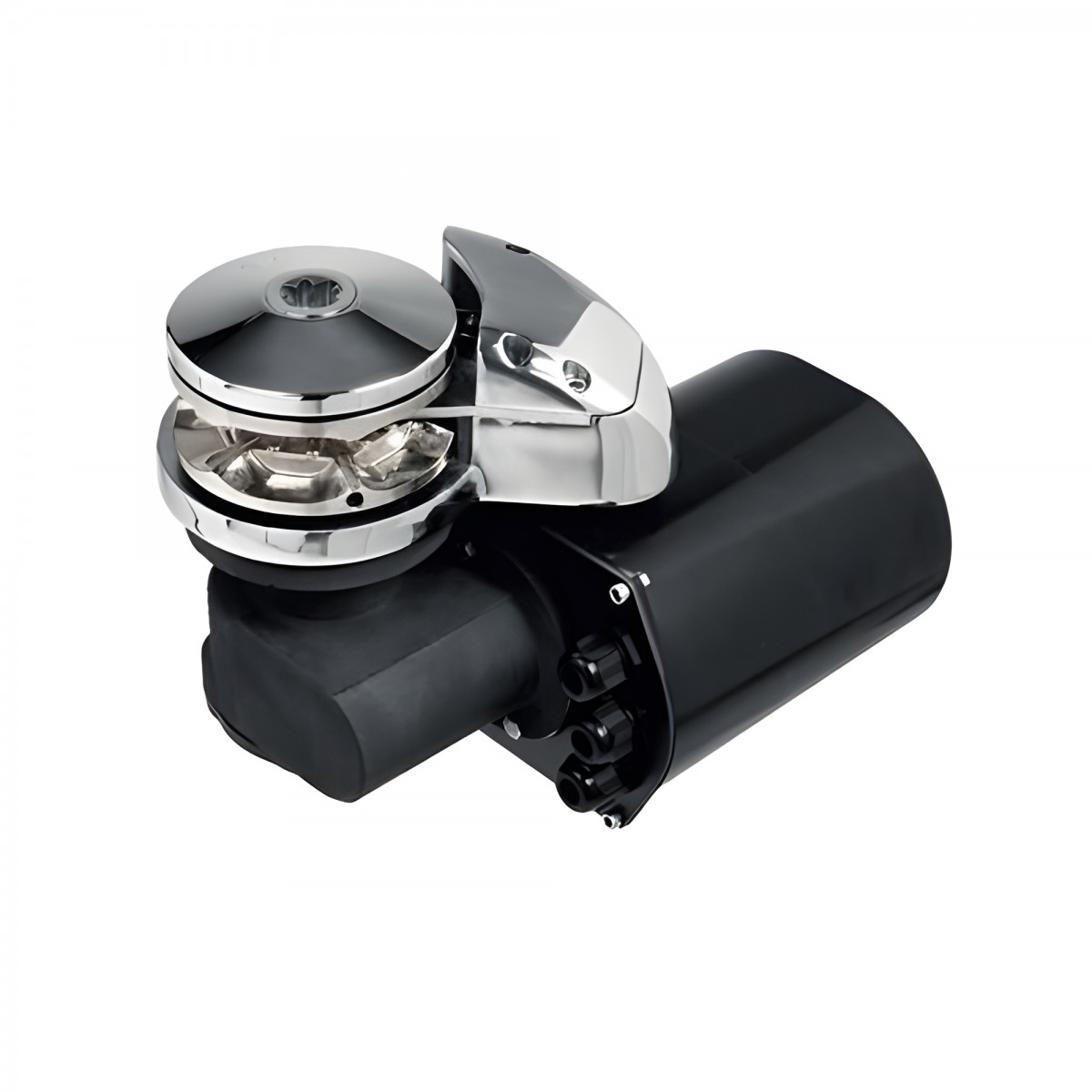

CLP 12V vertical windlass

Ref. OSC-02.414.32

The CLP 1000 W 12 V vertical windlass, without headstock, facilitates mooring maneuvers on boats with limited space on board. Designed for 8 mm chain, it ensures rapid retrieval at speeds of up to 25 m/min and develops a maximum pull of 1,020 kg.

Made from AISI 316 stainless steel, it is ideal for boats up to 16 meters.

from
€966.58 Tax included
-10%
€1,080.75
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
966 loyalty points Earn €9.66 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Variant Motor - V Motor - W Average consumption A Sprocket Ø chain mm Ø end mm Max. towing capacity kg Working load kg Recovery speed m/min peso
    In stock in 8 to 10 days
    Bottom without bell 12 1000 115 8 14 1020 130 25 16,7/18,1
    €966.58
    In stock in 8 to 10 days
    Bottom without bell 24 1000 60 8 14 1060 140 25 16,7/18,1
    €1,091.58
    In stock in 8 to 10 days
    Bottom without bell 12 1500 115 10 16 1250 150 26 16,9/18,3
    €1,299.92
    In stock in 8 to 10 days
    Bottom without bell 24 1500 60 10 16 1290 160 26 16,9/18,3
    €1,341.58
    In stock in 8 to 10 days
    Haut cloche + barbotin 12 1000 115 8 14 1020 130 25 16,7/18,1
    €1,141.58
    In stock in 8 to 10 days
    Haut cloche + barbotin 24 1000 60 8 14 1060 140 25 16,7/18,1
    €1,158.25
    In stock in 8 to 10 days
    Haut cloche + barbotin 12 1500 115 10 16 1250 150 26 16,9/18,3
    €1,341.58
    In stock in 8 to 10 days
    Haut cloche + barbotin 24 1500 60 10 16 1290 160 26 16,9/18,3
    €1,358.25
    OSC-02.414.32

    Data sheet

    Voltage
    12V
    Power
    1000 W
    Doll
    Without doll
    Sprocket diameter
    8 mm
    Description

    Italwinch - CLP 12V vertical windlass

    The CLP vertical windlass is designed to last in the marine environment, with an AISI 316 stainless steel body and a 12 V, 1000 W motor. The headstockless version can be easily integrated on the bow while keeping a clean line. It accepts 8 mm chain and features a cable tensioning system as well as an integrated chain counter sensor.

    Designed for boats up to 16 m, it offers smooth ascent and a real reserve of power for demanding anchorages. Its on-deck installation, large-scale wiring and simple operation keep you in control of every maneuver.
    Guindeau vertical Italwinch CLP 1000W 12V

    Traction and lifting speed

    When the bottom snags or the wind picks up, the CLP 1000W windlass is there. Its torque enables the anchor to be hauled up without-jerks, with a chain speed that remains comfortable for a succession of anchoring maneuvers.

    • Power supply: 12 V
    • Motor power: 1000 W
    • Maximum instantaneous pull: 1020 kg
    • Working load: 130 kg
    • Maximum retrieve speed: 25 m/min

    The CLP windlass is the perfect balance between robustness and ease of integration on board.

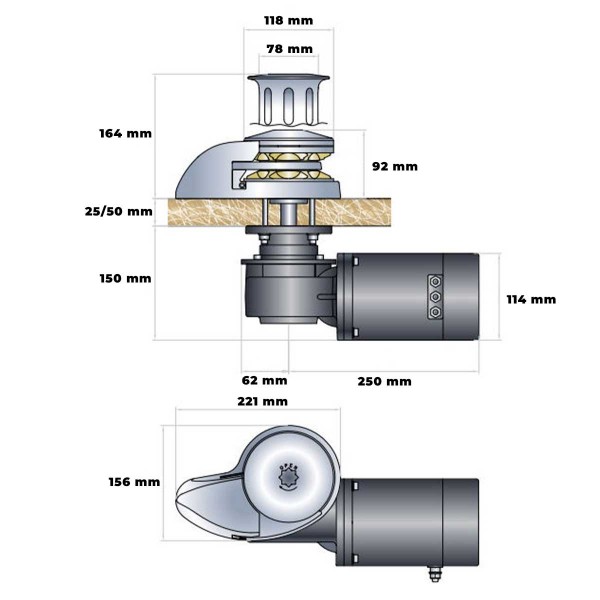

    CLP VERTICAL WINDLASS TECHNICAL SPECIFICATIONS

    CLP 12V 1000 W

    CLP 12V 1500 W

    CLP 24V 1000 W

    CLP 24V 1500 W
    Headstock ❌/✔️ ❌/✔️ ❌/✔️ ❌/✔️
    Motor power 1000 W 1500 W 1000 W 1500 W
    Sprocket: chain (mm) 8 mm 10 mm 8 mm 10 mm
    Rope 14 mm 3-strand / 14 mm 3-strand /
    Voltage 12 V / 115 A 12 V / 130 A 24 V / 60 A 24 V / 70 A
    Max. towing capacity 1020 kg 1250 kg 1060 kg 1290 kg
    Working load 130 kg 150 kg 140 kg 160 kg
    Lifting speed 25 m/min 26 m/min 25 m/min 26 m/min
    Bridge thickness
    		25-50 mm
    Weight 16.7 kg / 18.1 kg 16.9 kg / 18.3 kg 16.7 kg / 18.1 kg 16.9 kg / 18.3 kg

    MAIN POINTS :

    • IP67 motor
    • Stainless steel AISI 316 marine
    • Version without headstock
    • Recommended circuit breaker 100A
    • For boats up to 16 metres
    • Integrated chain counter sensor

    BOX CONTENTS :

    • 1 - CLP windlass with 12V 1000W geared motor
    • 1 - Remote control box
    • 1 - Drilling template
    • 1 - Crank handle
    • 1 - Screws and bolts
    • 1 - PDF documentation

    Download

    Manuel guindeau CLP Italwinch

    Manuel guindeau vertical CLP Italwinch (IT-EN-FR-DE-ES-HR)

    Download (777.14k)
