Smart vertical windlass
Ref.
601411

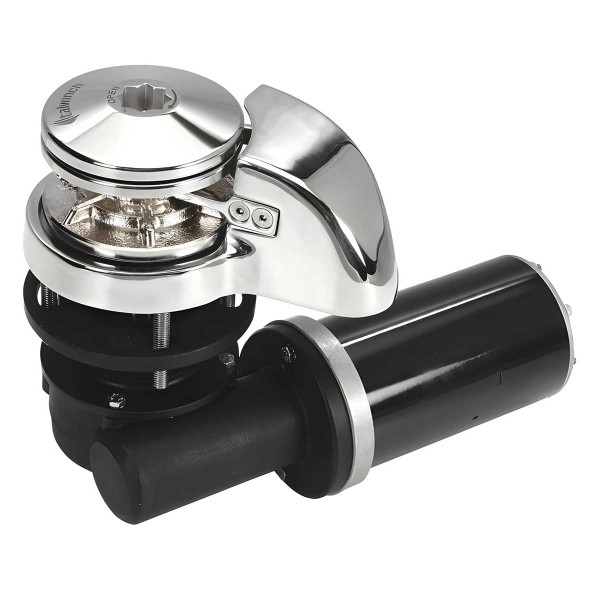

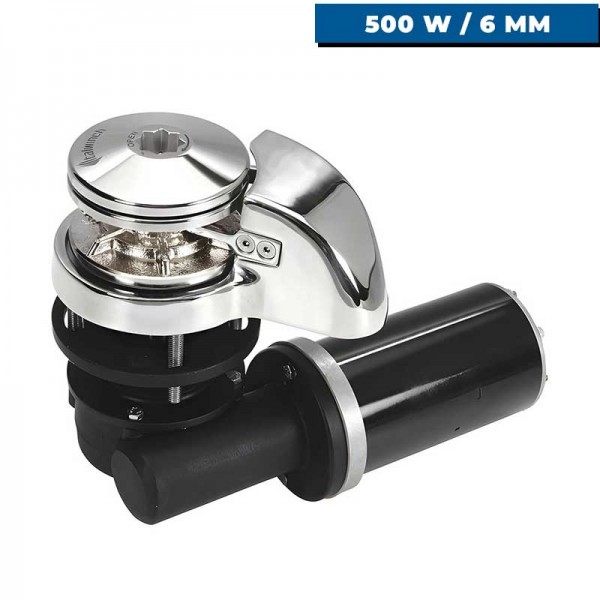

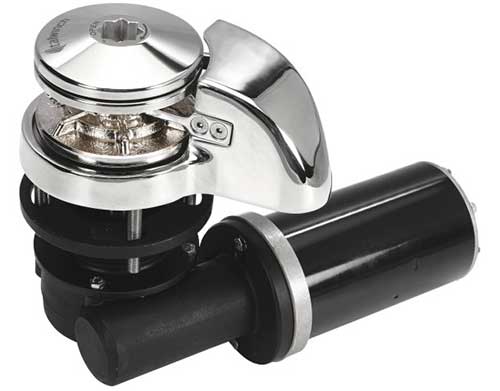

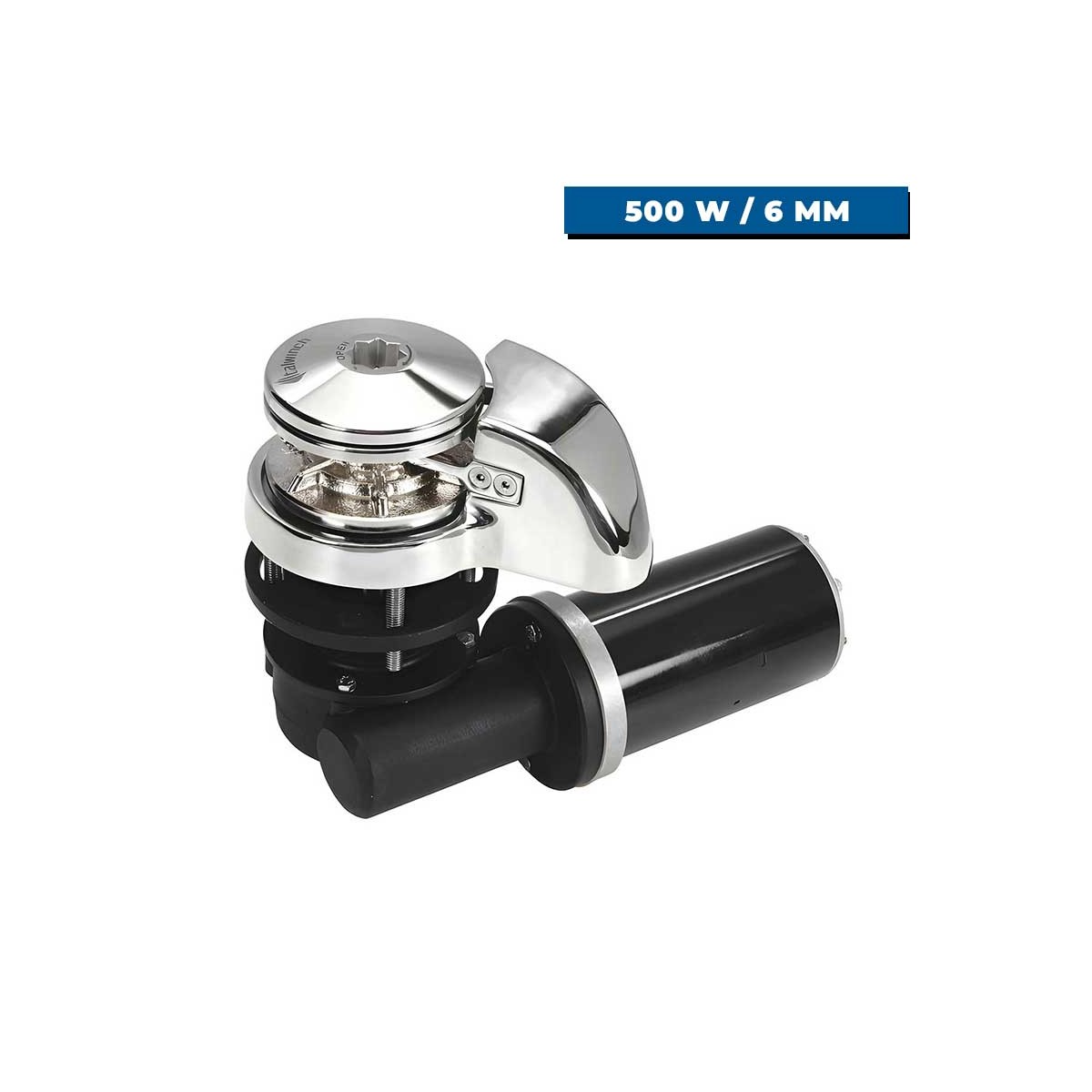

The Smart 500W 12V vertical windlass with 6 mm spool and no headstock is designed for compact deck mounting on boats up to 12 m long.
Its power ensures smooth, fast ascent, with high traction to secure your mooring maneuvers. What's more, its polished AISI 316 stainless steel construction makes it highly resistant to marine conditions.
601411
Data sheet
- Voltage
- 12V
- Power
- 500 W, 1000 W
- Doll
- Without doll
- Sprocket diameter
- 6 mm, 8 mm
ITALWINCH - SMART 500W 12V 6MM VERTICAL WINDLASS
With its vertical shaft and headstockless design, the Smart 500W frees up deck space while retaining true lifting power. This windlass is designed for use with 6 mm chain or 12 mm 3-strand rope, and is easy to use from release to lifting, with a clean and safe installation.
Equipped with a 500 W motor, it offers a lifting speed of up to 23 m/min, a maximum instantaneous pull of 650 kg, and a working load of 90 kg.
A 50 A circuit breaker and wiring adapted to the length of the-battery-motor link are required.
 |
A compact 12V mixed windlassThe Smart 500W is a vertical windlass designed to automate mooring operations on boats. Its headstockless configuration favors compactness and simplicity, ideal if you want a discreet, clean and easy-to-integrate unit.
Everyday comfort is enhanced by controlled release, smooth ascent and reduced effort at the helm and bow. |

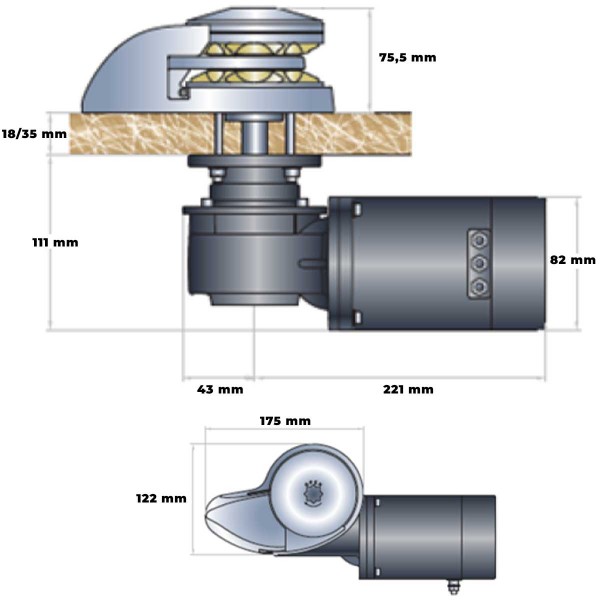

SMART WINDLASS TECHNICAL SPECIFICATIONS
| SMART 500 W | SMART 1000 W | |
|---|---|---|
| Headstock | ❌ | ❌ |
| Motor power | 500 W | 1 000 W |
| Sprocket: chain (mm) | 6 mm | 8 mm |
| Voltage | 12 V / 60 A | 12 V / 115 A |
| Working force | 90 kg | 130 kg |
| Max. lifting speed | 23 m/min | 26 m/min |
| Bridge thickness |
18-35 mm | |
| Rope compatibility | 12 mm 3-strand | |
| Weight | 8 kg | 13.5 kg |
