copy of Smart V vertical windlass 500 W 12 V
Ref.
OSC-02.402.11

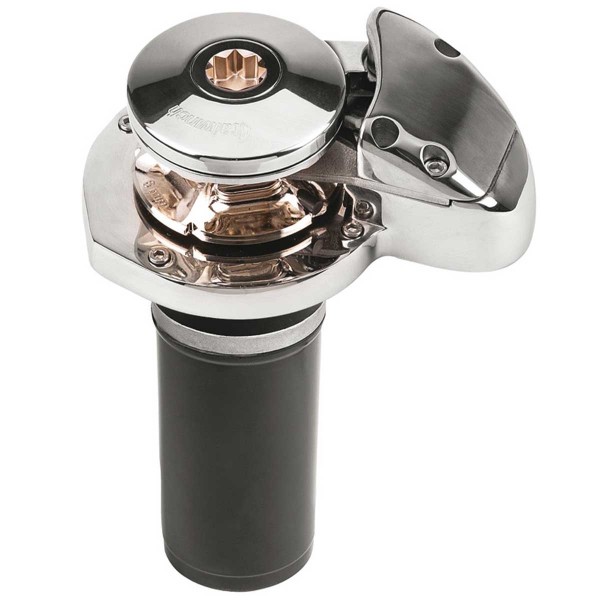

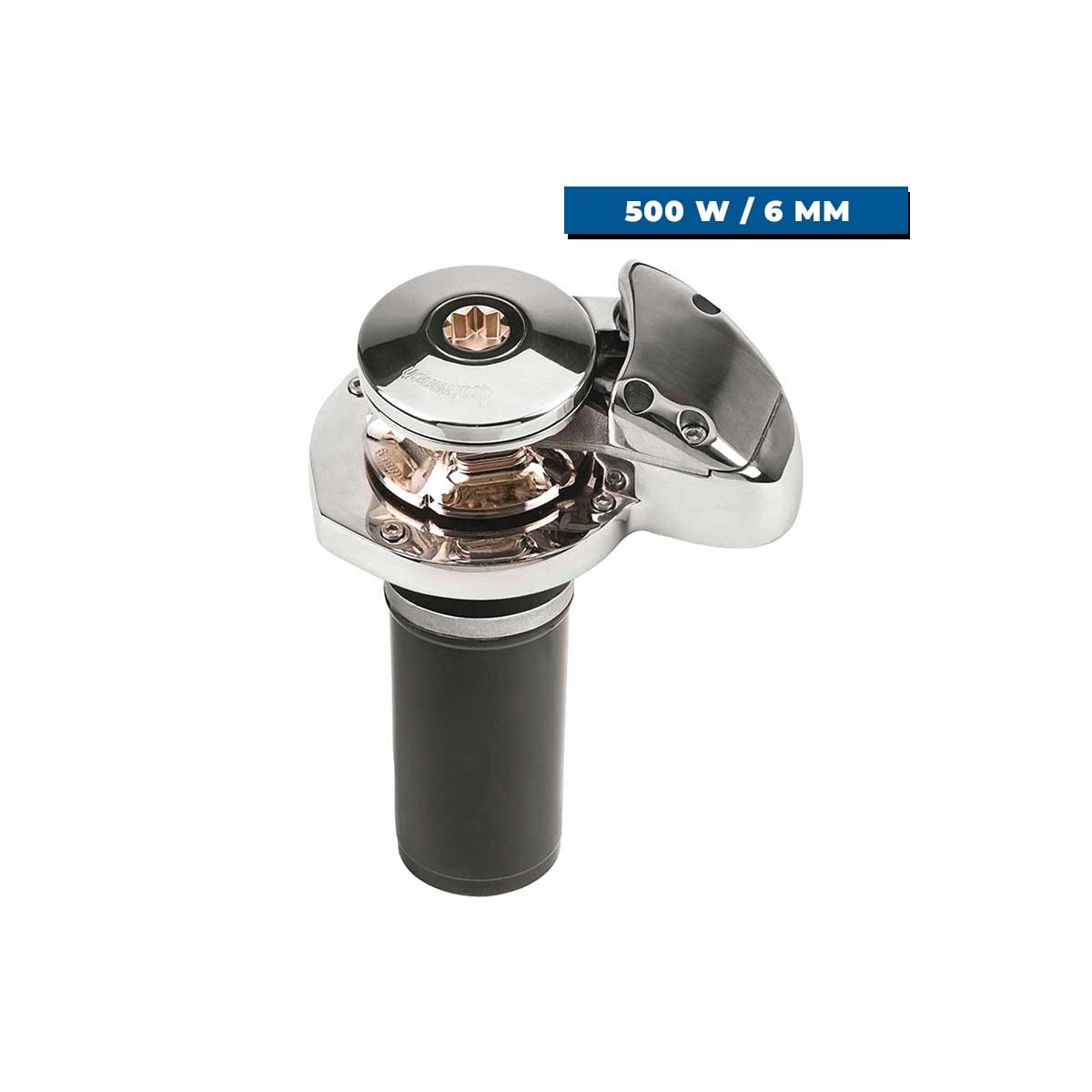

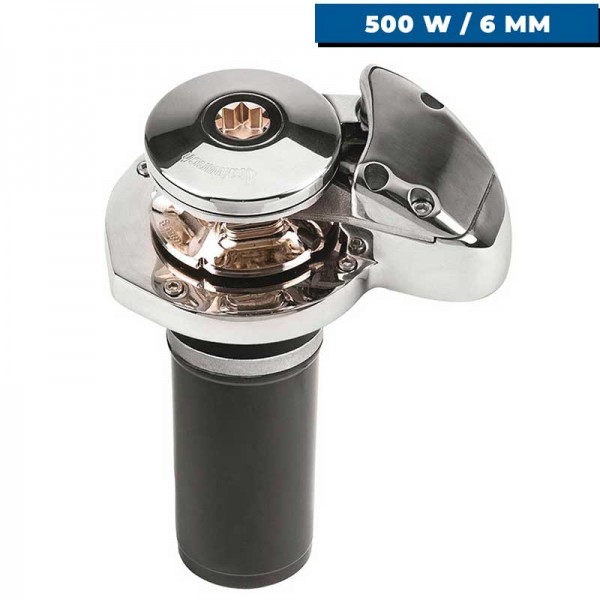

The CSV 500 W 12 V vertical windlass makes daily mooring maneuvers easier and more comfortable aboard boats up to 10 meters long.
Thanks to its compact size, it fits easily on bows with little space, while ensuring fast, smooth and even chain winding.
OSC-02.402.11
Data sheet
- Voltage
- 12V
- Power
- 500 W, 800 W
- Doll
- Without doll
- Sprocket diameter
- 6 mm, 8 mm
Italwinch - copy of Smart V vertical windlass 500 W 12 V
Designed for pleasure boating, the CSV 500 W 12 V vertical windlass facilitates mooring maneuvers and brings greater peace of mind on board. Its vertical design optimizes deck space and makes it easy to install near the davit.
Compatible with 6 mm chain, it provides a retrieval speed of up to 23 m/min and a maximum pull of 670 kg. It's a practical solution for reliable anchor maneuvering and greater efficiency at every mooring.
 |
A compact windlass for the deckThanks to its vertical configuration, the CSV is particularly well suited to bows where space is at a premium. This design frees up deck space while maintaining precise, controlled anchor handling.
Before installation, we recommend that you provide a flat surface, correct alignment with the davit and sufficient chain passage to the chain well. |
CSV WINDLASS TECHNICAL SPECIFICATIONS
| CSV 500 W | CSV 800W | |
|---|---|---|
| Headstock | ❌ | ❌ |
| Motor power | 500 W | 800 W |
| Sprocket: chain (mm) | 6/8 mm | 8 mm |
| Voltage | 12 V / 60 A | 12 V / 90 A |
| Working force | 90 kg | 100 kg |
| Max. pull | 670 kg | 800 kg |
| Max. lifting speed | 23 m/min | 25 m/min |

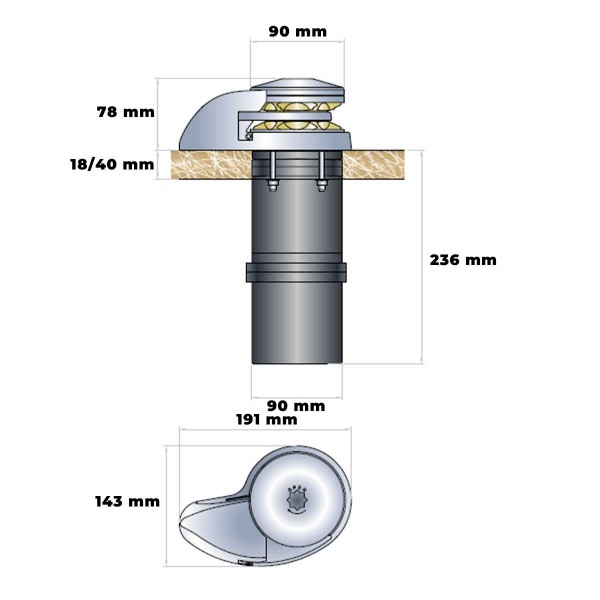

| Bridge thickness |
18-40 mm | |
| Rope compatibility | 12 mm 3-strand | |
| Weight | 10 kg | 10.5 kg |
