Groupe d'eau avec ballon

COMPLETE WATER SYSTEM

This water system is suitable for freshwater circuits that supply multiple pieces of equipment simultaneously. Its flow rate can reach 31 L/min, and the system is designed to serve up to 4 water outlets on board.

• Power supply: 24 V
• Maximum flow rate of 31 L/min
• System designed for up to 4 water outlets

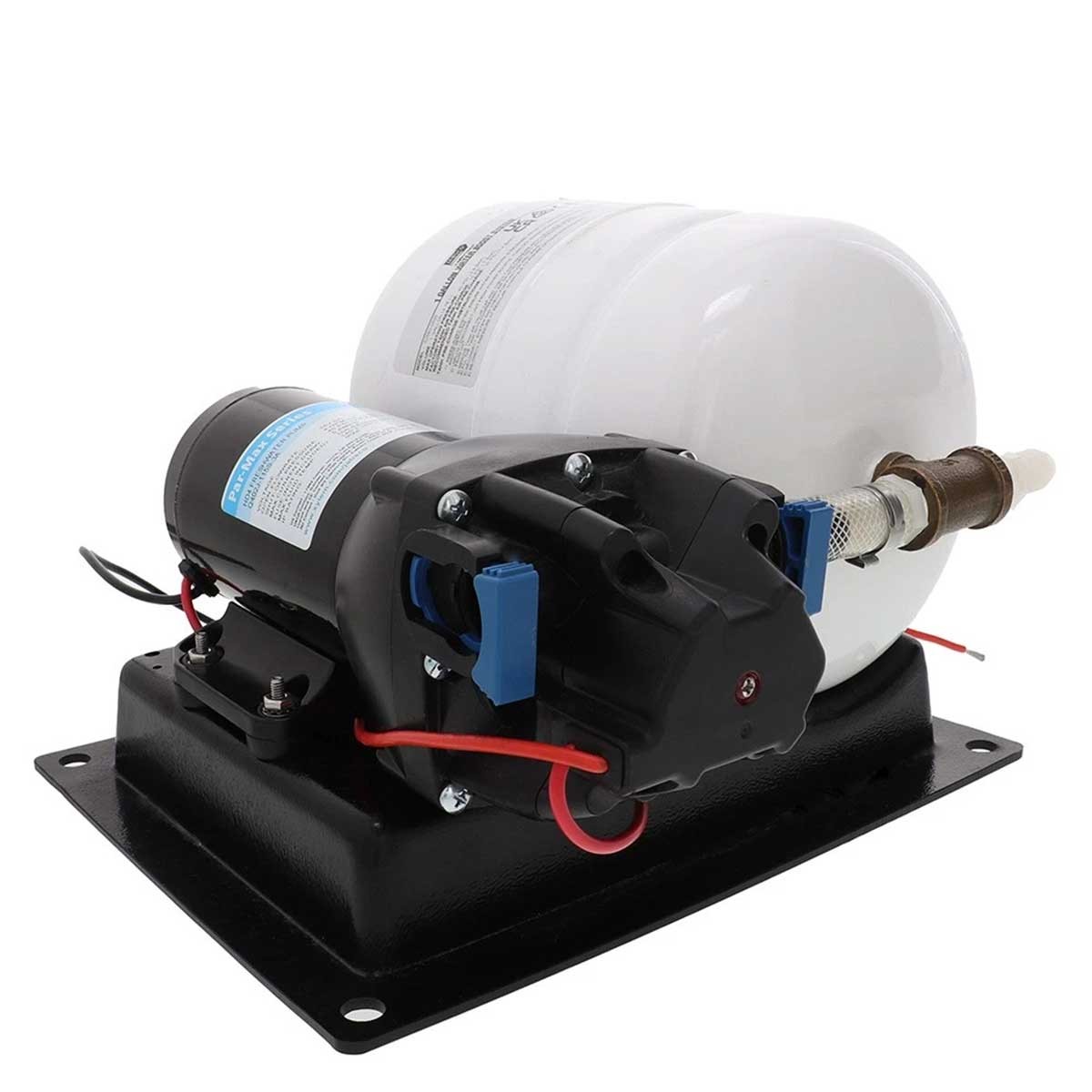

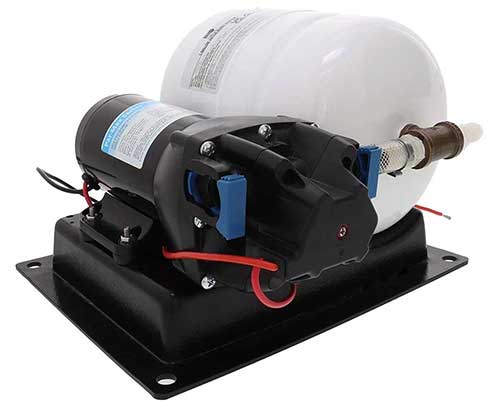

• Pre-assembled pump, pressure switch, storage tank, and strainer

The storage tank regulates the flow rate and helps stabilize the pressure in the system. The pump activates automatically based on demand. A back-valve is also built in to help maintain system pressure.

SYSTEM DESIGNED FOR COASTAL USE

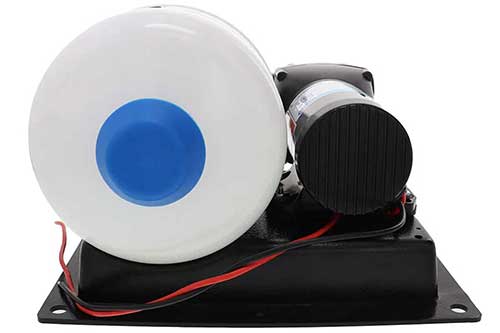

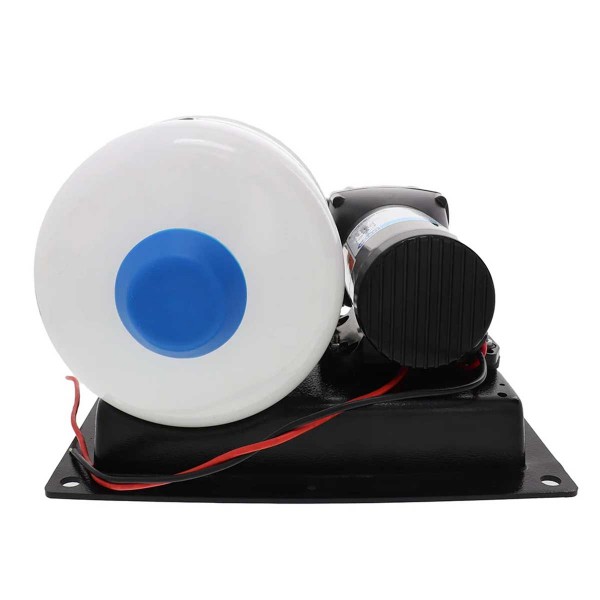

The various components are mounted on a single bracket. The unit can be installed horizontally or on a wall, in a dry and properly ventilated location. The strainer must remain visible and accessible to facilitate cleaning.

• Automatic Operation
• Dry-run capability
• Thermal overload protection
• Ignition protection compliant with ISO 8846 MARINE

Jabsco recommends a hose with a 19 mm inside diameter between the strainer and the pump inlet. Before commissioning, the storage tank must also be properly pre-charged.

KEY POINTS:

• Model 52560-0020
• Flow rate up to 31 L/min
• Integrated storage tank

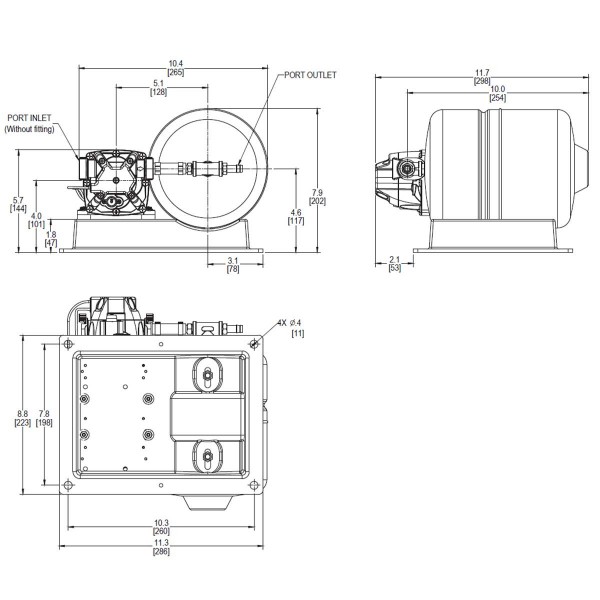

• Dimensions: 298 x 265 x 202 mm
• Automatic operation with steady flow
• Pre-assembled system suitable for up to 4 onboard water outlets

BOX CONTENTS:

• 1 - Strainer
• 1 - Pressure switch
• 1 - 24 V pump
• 1 - Storage Tank
• 1 - Bracket with pre-assembled system
• 1 - PDF documentation
