Zen watermaker 100 L/H

Name: Zen watermaker 100 L/H
Brand: Schenker

Quiet, small, light, efficient and affordable, the Zen watermaker from Schenker allows you to install it in small spaces, while producing 100 liters of fresh drinking water per hour .

Operating the Schenker Zen 100 watermaker is extremely simple, as no adjustments are required . All systems feature automatic pressure regulation . No direct access to the watermaker is required, and functions are performed remotely via the control panel.

Its compact design means it can be installed in a variety of positions, especially in boat cabins where space is at a premium. It is available in three different voltages and two different control panels:

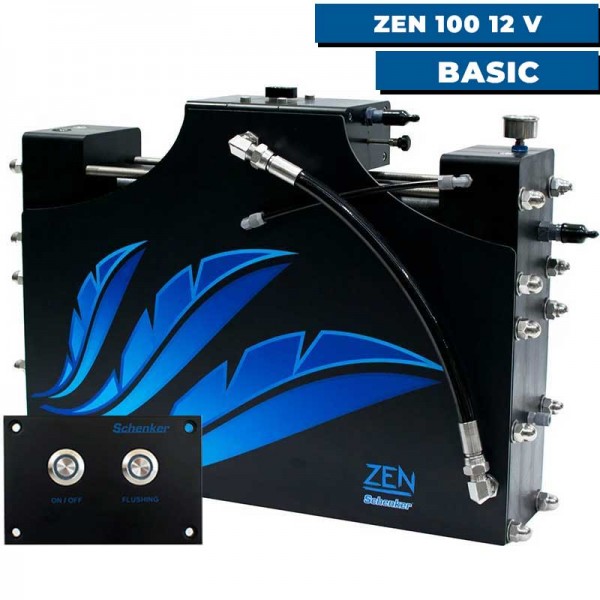

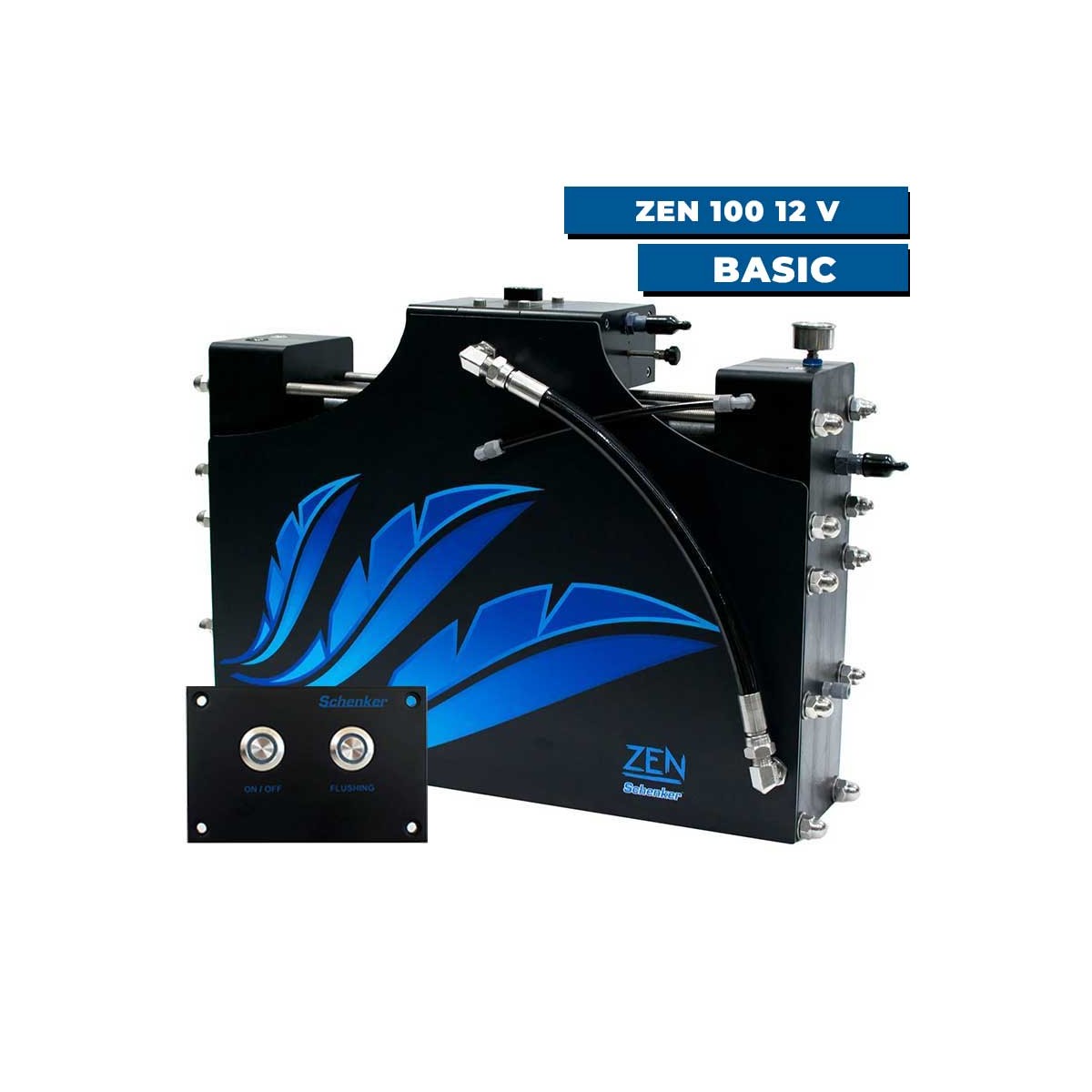

Watermaker Schenker Zen 100 L/H in 12V with Basic or Touch control panel
Watermaker Schenker Zen 100 L/H in 24V with Basic or Touch control panel
Watermaker Schenker Zen 100 L/H in 230V with Basic or Touch control panel

SCHENKER - ZEN 100 L/H WATERMAKER - FRESH & DRINKING WATER ON BOARD

All components are integrated into the main block and there are very few external components such as fittings, hoses and valves.

These features make the Schenker Zen watermaker very compact, with a special ultra-flat design. The Zen Schenker 100 L/h watermaker is designed to fit into tight spaces and can be installed in any position , both horizontally and vertically.

This watermaker doesn't use high-pressure pumps, which means it operates extremely quietly and without vibration .

The main advantage of this watermaker is the integration of a new-generation energy recovery system that reduces power consumption to a minimum . This system amplifies the pressure supplied by the low-pressure pumps, which recovers a large part of the energy expended, thus achieving very high energy efficiency. Energy consumption is up to 80% lower than with conventional systems .


	Zen 100 L/H watermaker features Production capacity* : 100 L/H Crew size : 4 to 6 people Control panel type : Basic or Touch Voltage : 12V; 24V or 230V Membrane : 4" x 21 Number of diaphragms : 2 Power consumption : 430W Block dimensions (WxDxH in mm): 728 x 196 x 521 Weight (block + pump): 37 + 11 kg * Production capacity +- 20% for seawater at 25°C and salinity 35000ppm

Composition of Zen watermaker kit Zen watermaker block 100 L/h Basic or Touch control panel + connecting cable Booster pump unit Seawater pre-filter T-fitting + non-return valve for connection to on-board rinsing circuit Activated carbon filter and solenoid valve for rinsing system 5µ pre-filter Fittings kit Fixing kit Filter wrench Manual in English and French

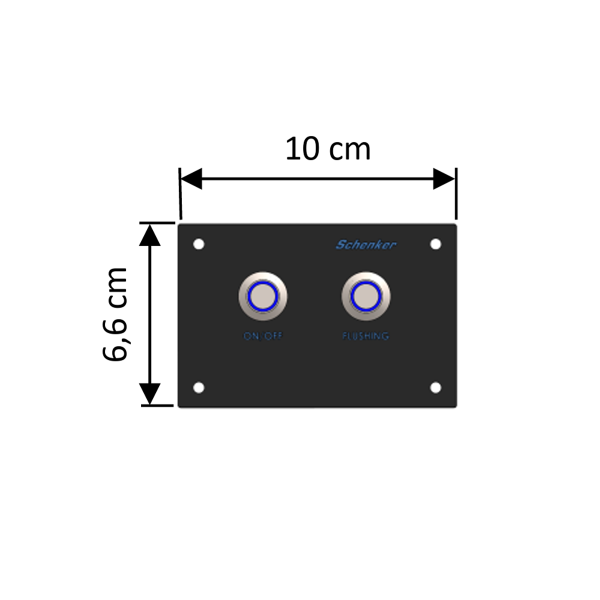

	Basic or Touch control panel Depending on the package chosen, you will have either the Basic or Touch control panel. Basic control panel functions : On and Off Timer Rinse Alarm 100 x 66 mm Touch control panel function : Automatic pressure regulation Remote start/stop Timer Automatic rinse Intensive rinse Periodic rinse Hour counter Automatic start Assisted maintenance Dimensions: 135 x 116 mm
