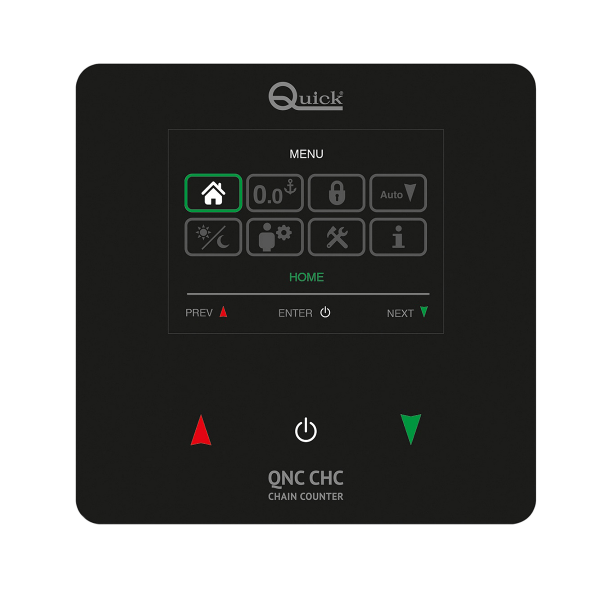

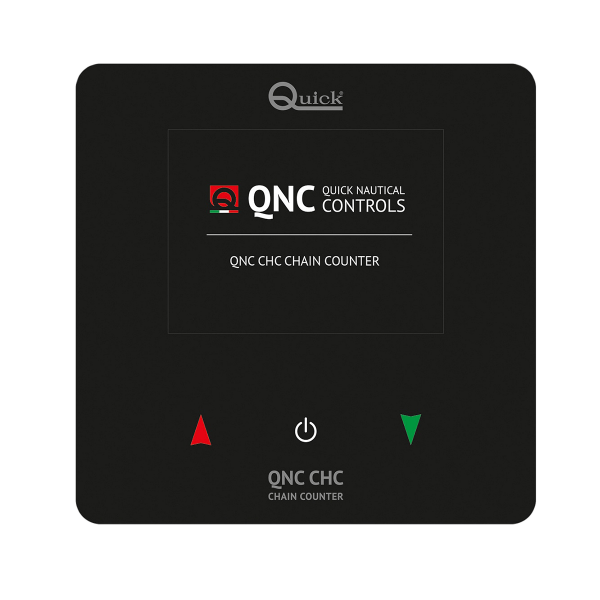

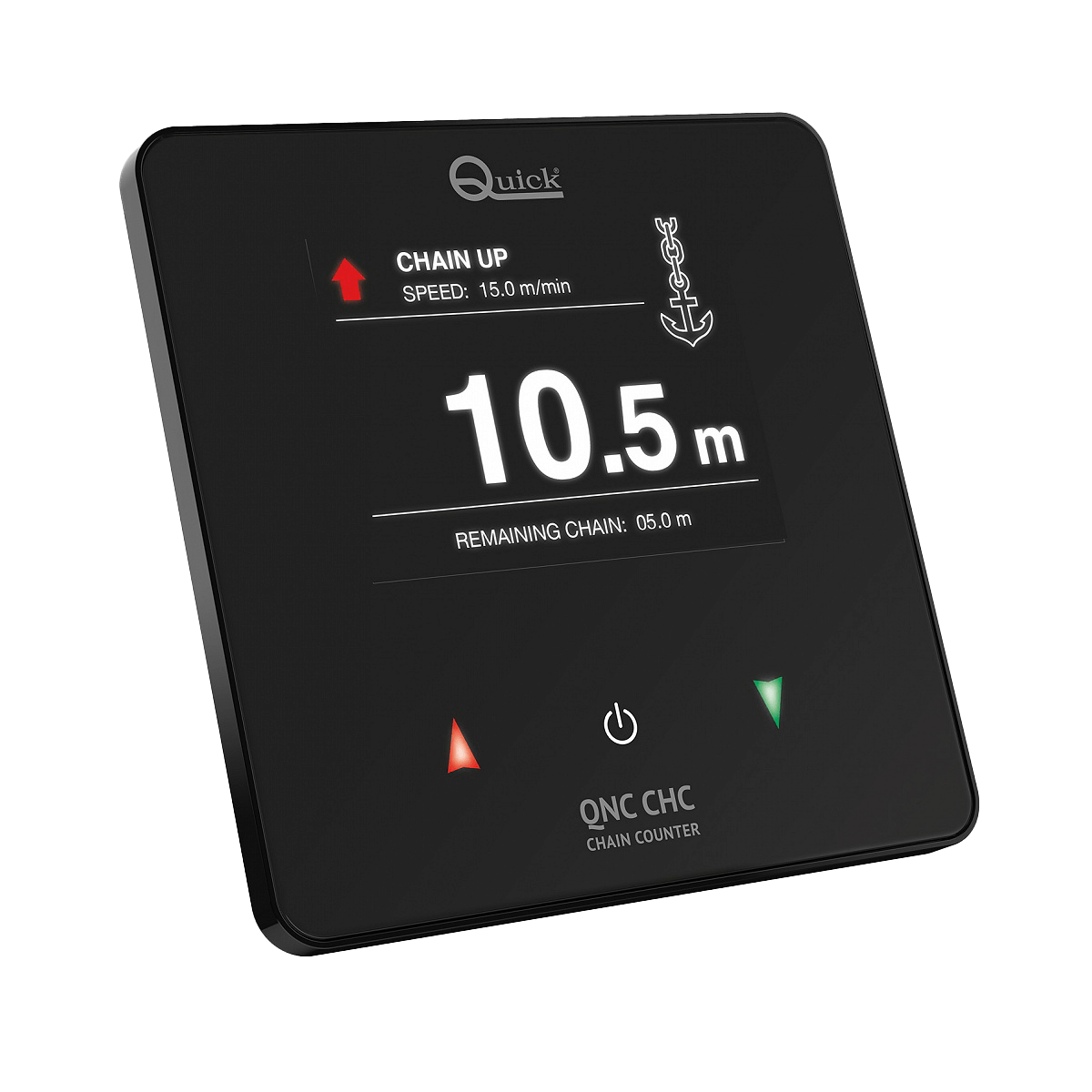

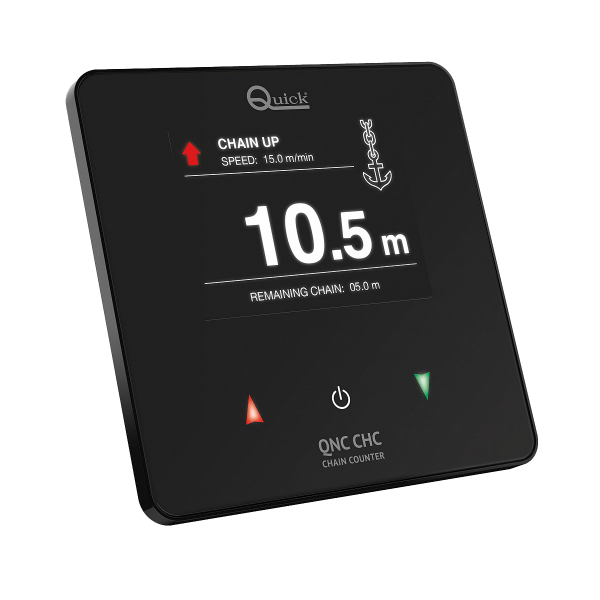

Chain counter table

QUIK - Chain counter panel - control panel

It features a 5-pin connection compatible with CAN bus networks, as well as several safety and comfort functions: automatic triggering, overload warning, assisted anchor raising with break detection, and free-fall function. Kit includes chain counter sensor, protective cap, mounting screws, gasket, and 0.5 m power cable.

Features :

• Automatic lowering function
• End-of-stroke alarm function (chain fully raised)
• Anchor weighing function in the event of sensor failure
• Windlass management with automatic free-fall system
• Display of unwound chain length in meters, feet or fathoms
• Glass front panel
• Ultra-thin profile
• Capacitive keys
• High-brightness 3.5" color graphic display
• Multilingual user interface
• Power supply: 12 to 24 Vdc
• No-load consumption: 160 mA
• Operating temperature: -20°C to +70°C
• Protection rating: IP67
• Communication interface: CAN bus
• Weight: 270 g (320 g with protective cap)
