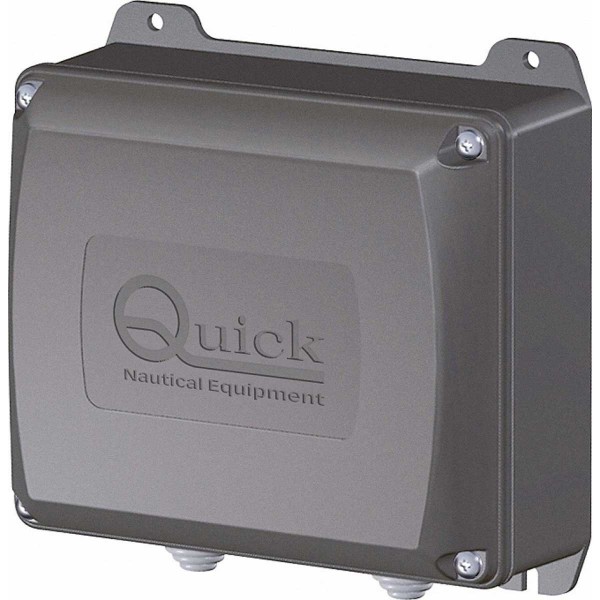

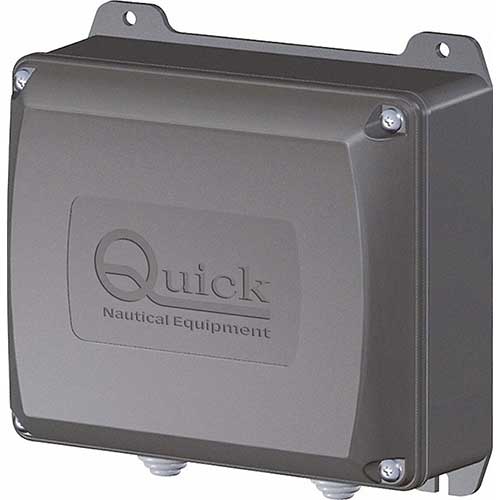

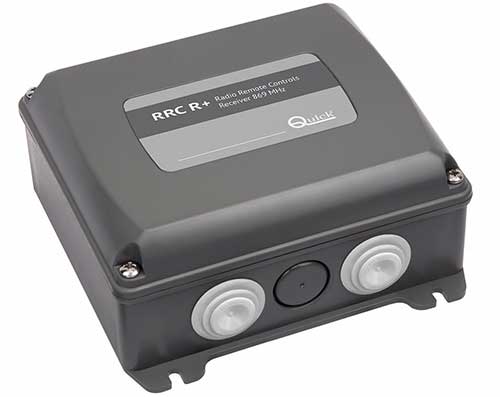

2-channel 869 MHz radio control receiver

Name: 2-channel 869 MHz radio control receiver
Brand: Quick

The RRC R+ Quick receiver provides reliable wireless control of your on-board equipment. Compatible with up to 50 transmitters, it operates on 2 channels, accepts a wide voltage range (10.5 to 31 Vdc) and withstands demanding marine environments. Ideal for windlasses and other systems.

QUICK - RRC R+ RADIO RECEIVER - RELIABLE WIRELESS CONTROL FOR YOUR BOAT

The RRC+ 2-channel radio receiver from Quick is designed for remote control of windlasses, searchlights, bathing platforms and other on-board devices. Featuring a wide voltage range and compatibility with up to 50 transmitters, it guarantees safe operation, even in difficult marine conditions.

Its compact design and ability to connect to an external antenna allow easy integration and optimum reception. What's more, it features numerous protections against polarity inversion and low battery.


	EASY, SECURE INSTALLATION Designed for vertical, moisture-protected installation, the RRC+ integrates effortlessly into your existing system. Mounted with 4 screws (not supplied) Positioned 1 m above the waterline- Recommended distance from sensitive devices: 1 to 2 m Robust, compact housing (143 x 141.7 x 61.4 mm) A 1A fuse is recommended on the power supply for added safety.

PERFORMANCE AND VERSATILITY The receiver manages 2 relays, each rated at 15A, which can be activated separately or simultaneously. It accepts a wide range of voltages and operating conditions. Supply voltage: 10.5 to 31 Vdc Standby current consumption: 25 mA Operating consumption (2 relays activated): 120 mA Operating temperature: -15 to +70°C LED indication of operating status level Its integrated microcontroller enables intelligent, reliable management of remote commands.
