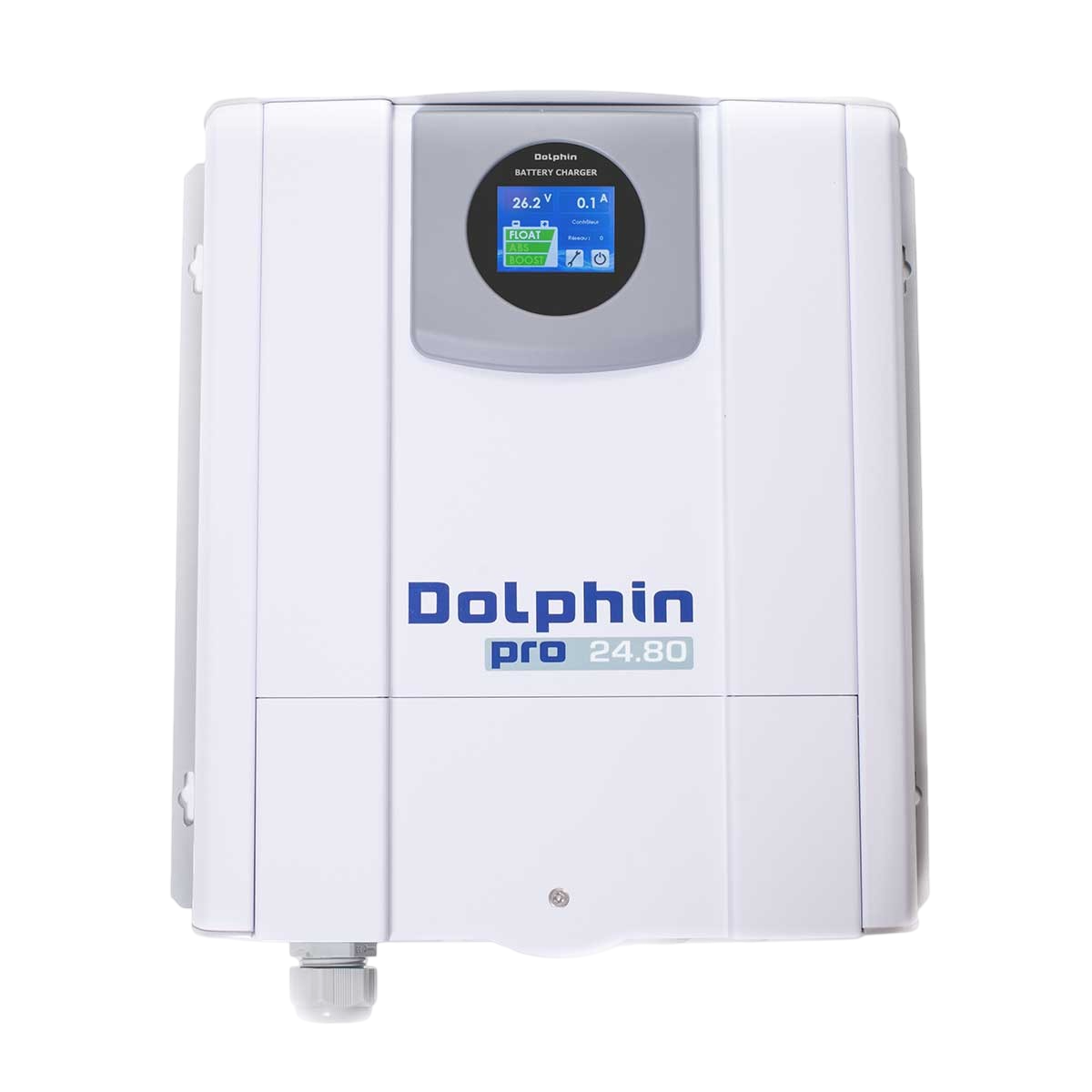

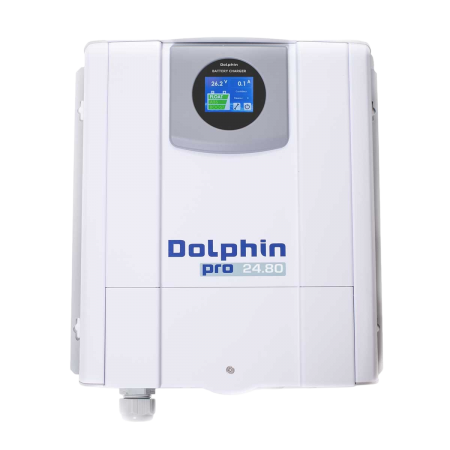

Pro Touch battery charger 24V-80A

PROTECTED, EFFICIENT CHARGER

The Pro Touch 24V charger-80A is compatible with various types of 24V batteries (lead-acid, AGM, gel, lithium).

The charger features a wide range of protections to maximize the life of the device, and therefore of your battery:

• Overcharge and short-circuit on output
• Excessive internal temperature
• Charging voltage too high
• Reverse polarity (fuse)

It also features a CAN Bus J1939 interface as standard, and is NMEA 2000 compatible as an option. This means you can connect your device to all on-board communication systems.

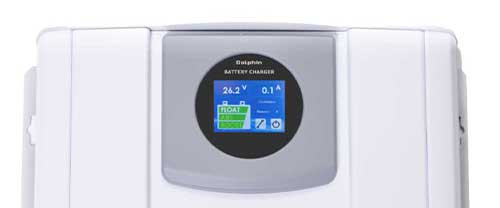

TOUCHVIEW DISPLAY

The Dolphin Pro Touch charger is equipped with Touchview, an innovative integrated touchscreen control unit.

This touchscreen (human-machine interface-, HMI) lets you easily control your charger and batteries in terms of charging current, chosen charging curve, charging phase (boost/absorption/float) and maximum power output at any time.

Its two built-in alarm relays will alert you to the following problems: battery or electronics temperature anomaly; charger supply voltage anomaly; fuse anomaly; charger output voltage anomaly and CAN Bus anomaly.

This exclusive HMI interface offers a choice of 5 languages (English, French, Italian, Spanish and German).

MAIN POINTS :

• 4-year warranty
• Interactive & connected
• 3 charging steps
• High-quality aluminum housing
• Integrated Touchview control panel
• Compatible with many battery types

BOX CONTENTS :

• 1 - Battery charger Dolphin Pro Touch 24V 80A 230V
• 1 - Mains cable gland-
• 1 - Battery temperature sensor
• 1 - Touchview control panel
• 1 - Fixing nut (to be installed on the box before connection)
• 1 - PDF documentation
