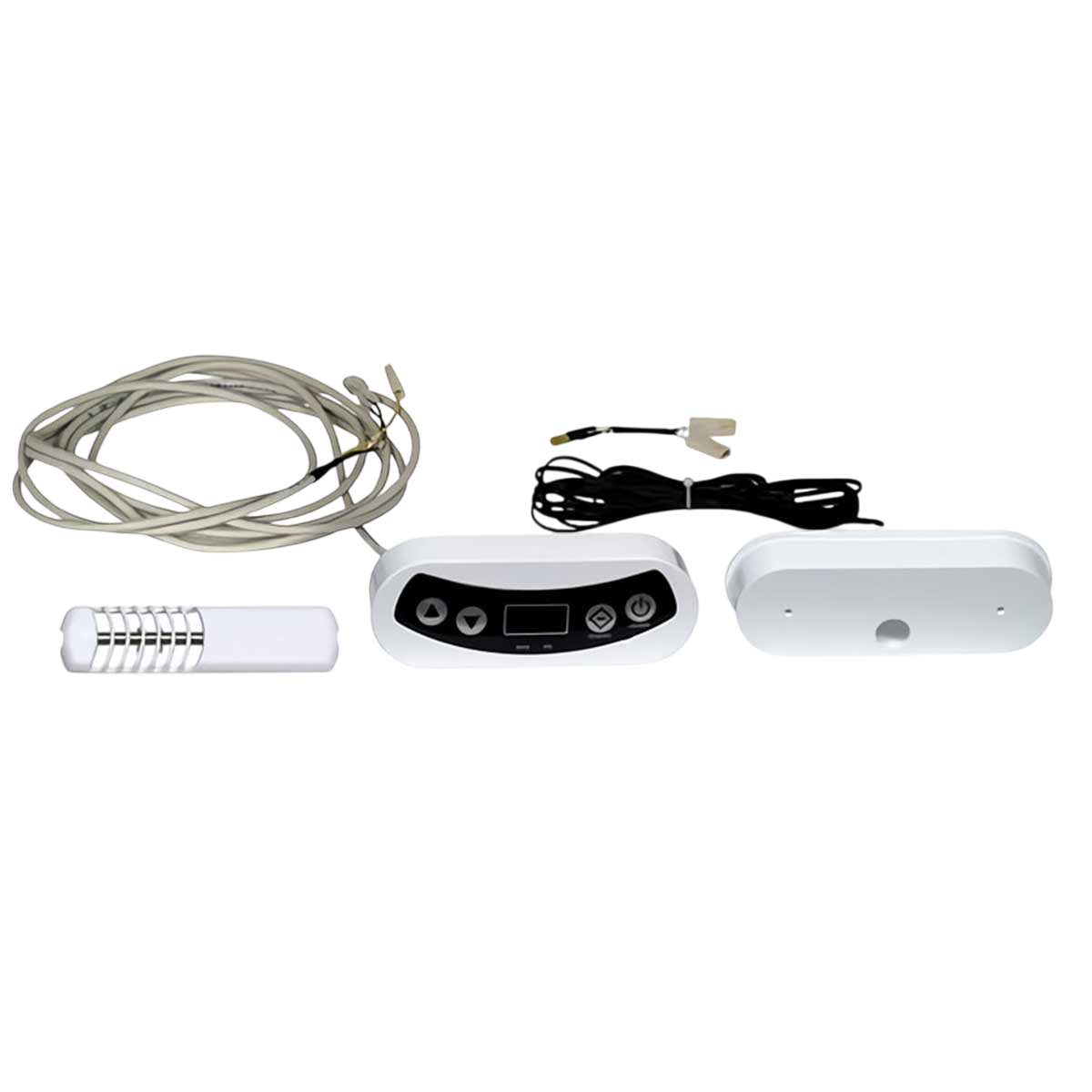

Intelligent digital temperature display ITC

The ITC (Intelligent Temperature Control) digital display allows you to view, control and regulate the temperature from outside the refrigerated enclosure.
The main parameters are managed by a microprocessor to maximize performance.
The ITC is compatible with Decop/Danfoss 101N0212 12/24Vdc(Ref: IA001) and 101N0510 12/24VDC - 90/260VAC(Ref: IA081) electronic units fitted to BD35F and BD50F compressors.

Depending on the settings selected, it can save between 25% and 40% energy.
Features a soft start function, low battery protection, Eco mode and fast Cooling mode.

Advantages:

• Allows the refrigerator to be started and stopped without opening it
• Instant temperature display in the refrigerated compartment
• Display and/or change setpoint temperature by pressing Up or Down buttons
• Select display in °C or °F
• Fault display
• 3 levels of low battery protection
• Temperature offset can be programmed to compensate for the difference between the displayed temperature and the actual temperature
• Fast cooling: rapid cooling to lower temperature as quickly as possible.

Features :

• Soft Start function (up to 25% energy savings)
  The Soft Start function ensures efficient, safe compressor start-up. At each start-up, compressor speed is held at minimum for 30 seconds to equalize gas circuit pressures and prevent compressor blockage. At the end of the process, the compressor returns to its standard settings.
• ECO function
  The ECO function must be activated by the user. In ECO mode, the refrigerator operates in energy-saving mode, with a minimum compressor speed of 2500 rpm.
  This mode does not guarantee that the set temperature will be reached, as the priority is to save battery energy
• Over Cooling function (up to 40% energy savings)
  When the Over Cooling function is activated, the system stores energy in food and beverages by "undercooling" the cabinet relative to the set temperature.
  Accurate temperature reading prevents food from freezing by stopping the compressor when the temperature is close to 1°C. This function can be activated when surplus energy is available: batteries on charger, motor charging or shore power available.
