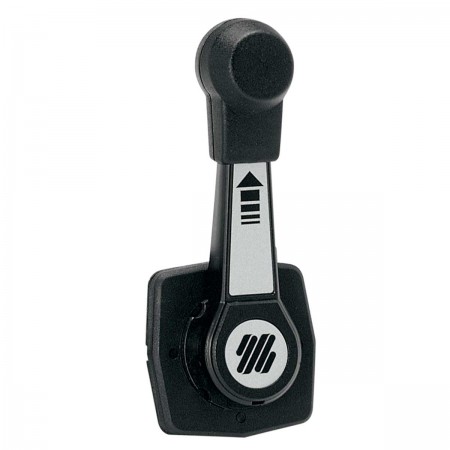

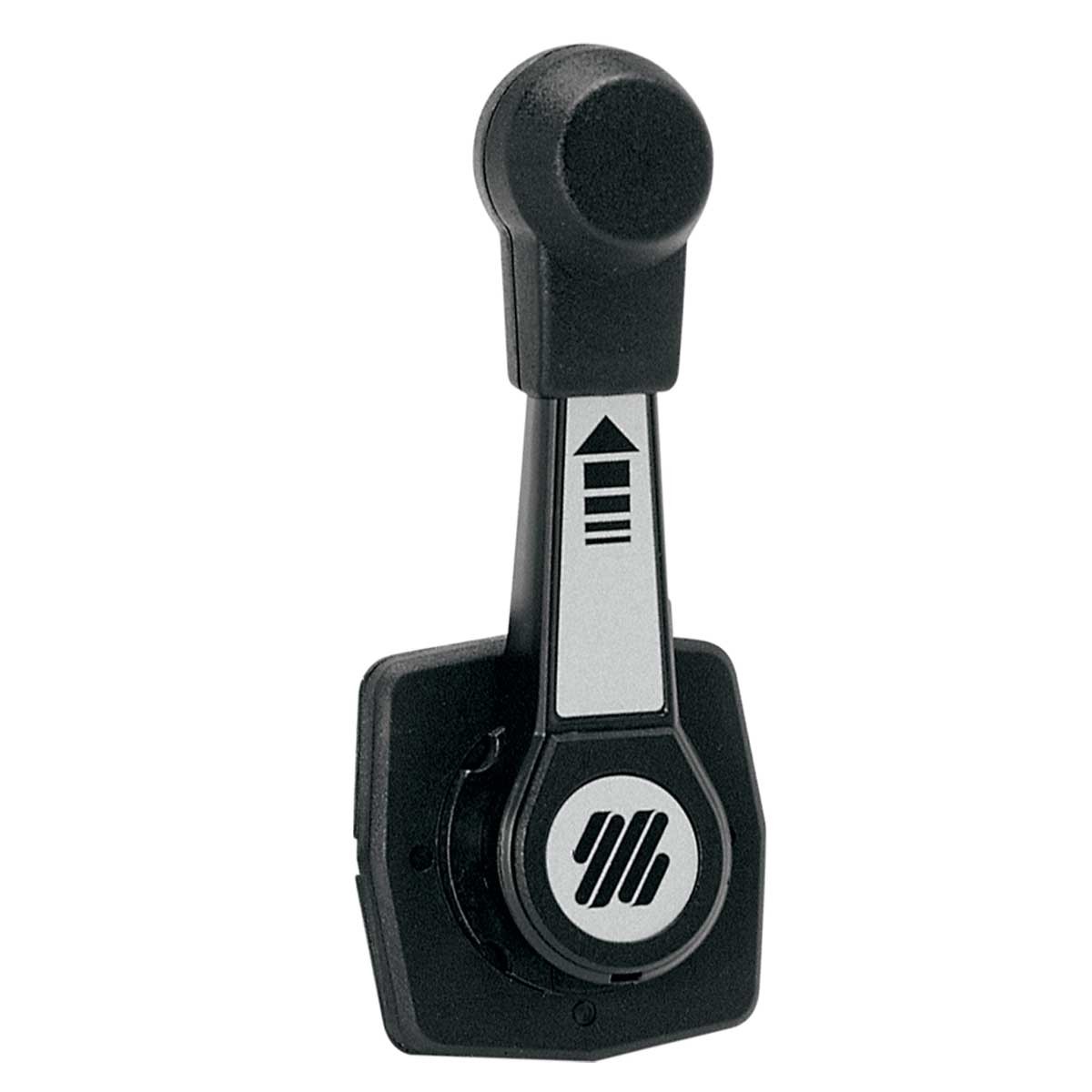

Single housing-lever B85

Ref. OSC-45.452.06

The B85 control box lets you control both the throttle (gas) and the reverser (forward-reverse).

You can mount it on the wall of your cockpit, on the left or right, horizontally or vertically. Made of marine-painted aluminum, it features a neutral locking system.

Read more Features
from
€170.75 Tax included
Public price
€193.98
-11%
Price tax excl. / DOM TOM €170.75
Quantity
Choose a version
In stock in 8 to 10 days
170 loyalty points.
Article
Version Code
In stock in 8 to 10 days
for sailboats B85
€170.75
In stock in 8 to 10 days
with neutral lever lock and trim switch, black knob B310B
€326.99
In stock in 8 to 10 days
with neutral lever lock and trim switch, curved wooden knob B310BR
€339.21
OSC-45.452.06

Data sheet

Motor control box type
Side housing
Number of motor control cables
2
Number of motors
1
Enclosure type
Control
Description

Ultraflex - Single housing-lever B85

It can be used on all types of boats with outboard motors-. You can adjust the throttle without clutching by pulling the hub in neutral.

You can change engine direction only when the throttle lever is at minimum, thanks to a safety device to prevent accidental engagement of the reverser.

Optional x12 neutral safety switch.

MAIN FEATURES :

  • Side-mounting on sailboats
  • Equipped with throttle friction system
  • Compatible with C2, C8, MACH14 and MACHZero cables
  • Compatible with C5, C16 and MACH5 cables with K35 kit
  • Complies with EN ISO 11547 standards with x12 switch

BOX CONTENTS :

  • 1 - Mono control box-bi lever-function B85
  • 1 - PDF documentation



Download

Housing manual B183, B184, B85

Installation manual B183, B184, B85 control units Ultraflex (EN-IT-FR)

Download (1.67M)
