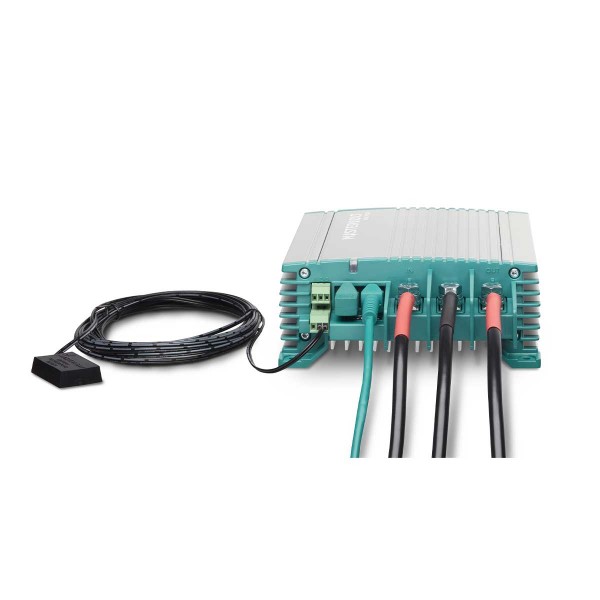

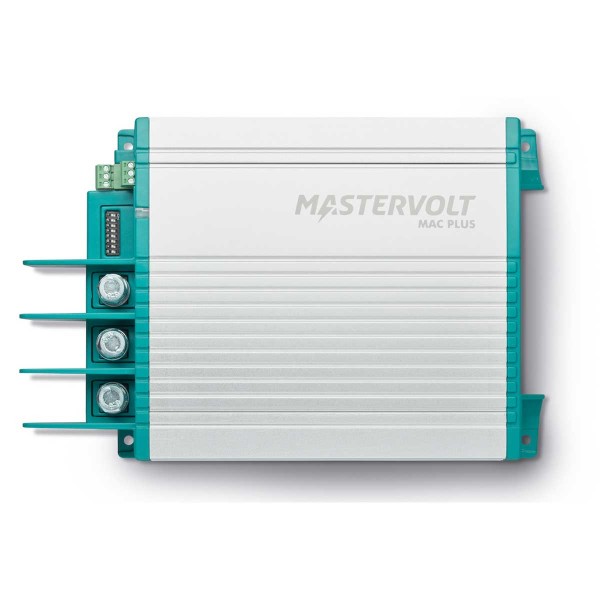

Converter Mac Plus 12V/24-30A - IP23
Ref.
81205305
The Mastervolt Mac Plus 12V/24-30A converter with CZone ensures stable charging of your service battery, even with a smart alternator.
It transforms variable 12V voltage into regulated 24V and recharges in 3 stages, with temperature compensation. Controllable via CZone, NMEA 2000 and MasterBus networks, it remains discreet when moored.
Read more Features
€443.25
Public price
€495.00
Price tax excl. / DOM TOM
€443.25
81205305
Data sheet
- Amperage
- 30A
- Input voltage
- 12V
- Rated power
- 675W
- Output voltage
- 24V
Converter Mac Plus 12V/24-30A - IP23
| Specifications battery charger | ||
| Battery temperature sensor | yes, included | |
| Battery voltage sense | yes | |
| General specifications | ||
| Status indicator | yes, 3-color LED | |
| Communication protocol | MasterBus, CZone & NMEA 2000 | |
| Output voltage | 20-30 V | |
| Nominal output voltage | 24 V | |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input | |
| Output voltage ripple (peak peak) | max. 1 % | |
| Max. output power | 725 W | |
| Nominal output power | 675 W | |
| Max. output current | 30 A | |
| Output charge current (3-step mode) | 30 A | |
| Nominal input voltage | 12 V | |
| Input voltage range | 10-16 V | |
| Max. input current | 50 A | |
| Galvanic isolation | no | |
| Voltage limited | yes | |
| Efficiency | > 95 % (at nom. input voltage, full load); peak 97 | |
| Parallel configuration | yes | |
| Alarm contact | yes, through MasterBus | |
| MasterBus powering | no | |
| Engine run signal input | yes (active high/active low) | |
| DIP switches | yes, for basic setup | |
| Dimensions, hxwxd | 255 x 165 x 66 mm 10.0 x 6.5 x 2.6 inch |
|
| Weight | 2 kg 4.4 lb |
|
| Compliance | CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected | |
| Technical specifications | ||
| No-load consumption | ||
| Charge characteristic | 3-traps+ | |
| Battery types | flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined | |
| 3-Step charge option | yes (DIP switch settings) | |
| DC consumption | ||

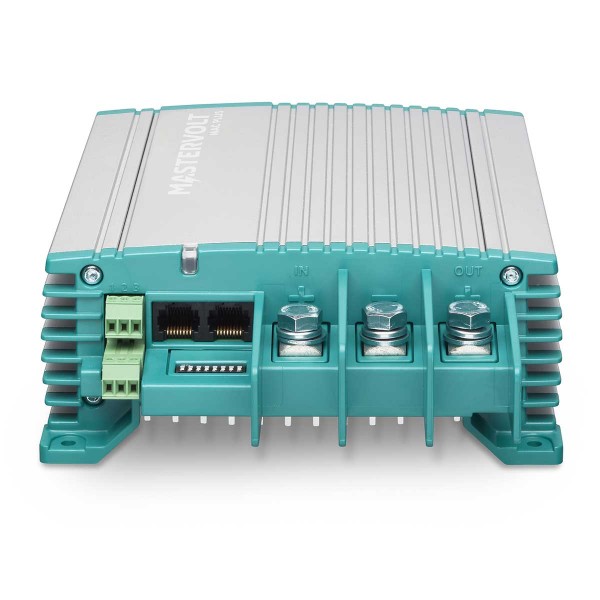

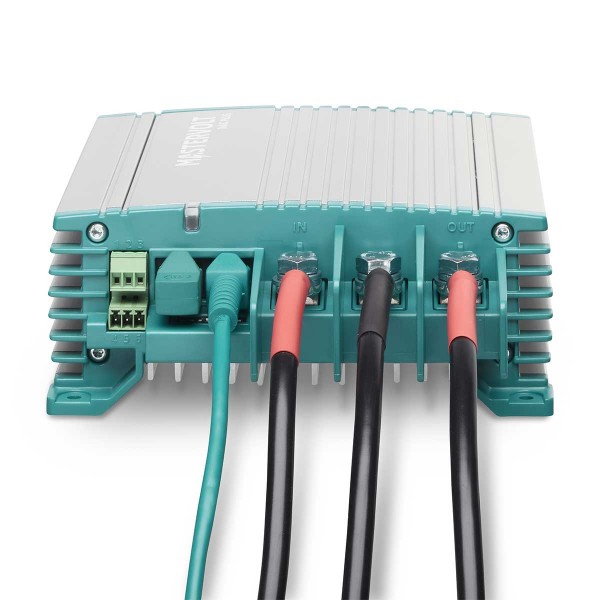

| Connections | 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement | |
| Temperature range (ambient temp.) | -25 °C to 60 °C; derating > 40 |
|
| Cooling | natural cooling | |
| Protection degree | IP23 | |
| Protections | overload, over temperature, DC short circuit, reversed polarity (fuse) | |
| MasterBus compatible | yes | |
