Pick & Drink freshwater filtration kit

SCHENKER - PICK & DRINK FRESHWATER FILTRATION KIT - FRESHWATER ON BOARD

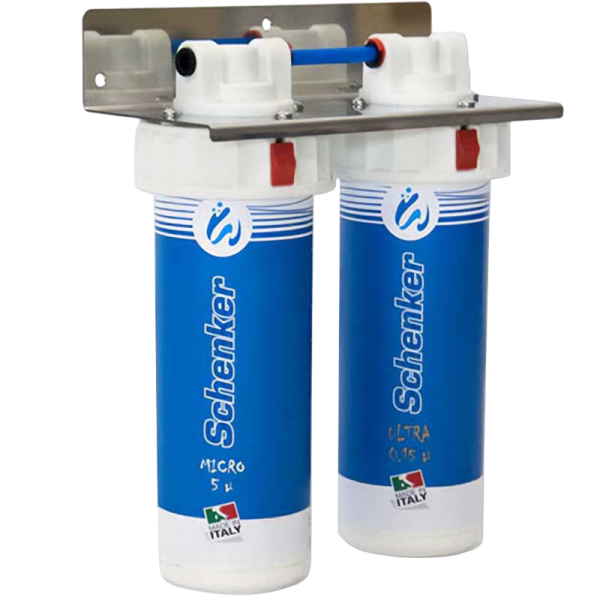

The Pick & Drink freshwater filtration kit from Schenker consists of a pair of pre-assembled filters. The system is easily connected to the on-board freshwater network using the fittings supplied.

The Pick & Drink's first filter is a carbon filter that removes impurities down to 5µ, chlorine and other undesirable tastes and odors. The second filter retains impurities down to 0.15µ, reducing bacterial load by up to 99.99%. Cartridges are easily replaced thanks to a bayonet connection system with safety catch.

Comptoir Nautique:

It is recommended to let the water flow through the filter at maximum pressure and flow rate for 5 minutes, to allow the air in the cartridge to purge.

Pick&Drink requires regular maintenance to keep it running smoothly. Replace filters every year, or every 6 months if the 10,000-liter range is exceeded. Do not use with microbiologically hazardous water. After periods of inactivity (3-4 weeks), perform precise disinfection and replace filters.

Technical specifications :

• Disposable filters (every 10000L)
• Vertical or horizontal installation
• Flow rate 3L/min
• Max. pressure 7 bar
• Temperature range: 3 to 30°C
• 6x8mm supply hose

Kit contents :

• 2 filters 5 and 0.15 microns
• 1 filter holder
• 1 fresh-water tap
• 1 bag of screws, fittings and valves
• 3m hose
• Assembly instructions
