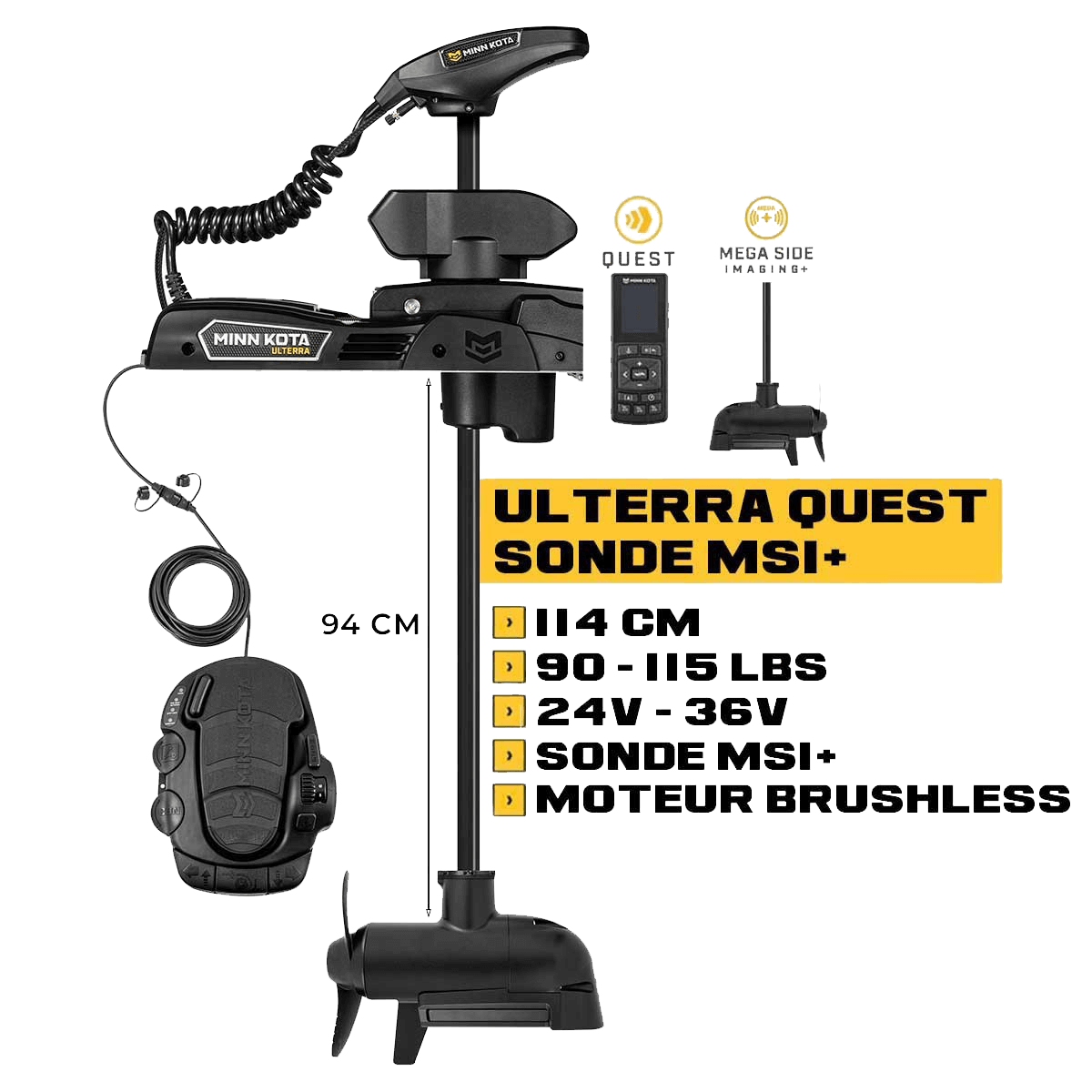

ULTERRA QUEST front motor + MSI+ probe

Minn Kota automatic engine QUEST

The range Quest from Minn Kota features advanced electric motor technologies. These include rotors brushless , Eliminating frictional wear. This increases range by up to 30% Compared with previous models. What's more, a eco mode Is available for extend battery life .

This 24/36V dual-voltage motor Offers a enhanced thrust , of 90 lbs For 24V motors And 115 lbs for 36V motors , guaranteeing enhanced manoeuvrability , even in herbariums.

VisitFrame is reinforcedFor a enhanced durability and the robust support Withstands high levels of thrust and torque. The tree is in Carbon fiber To combine strength and flexibility , the motor is equipped with a power Pro propeller Ensuring maximum power and torque performance.

This Ulterra Quest is totally automated With the :

• Trim Auto Adjust shaft length to water depth
• Power Trim Sets the height of the submersible motor(TRIM)
• Auto Stow & Deploy : automatically stows or extends the motor
• Automatic lashing Automatically positions the motor head for lifting(when lock pedal is pressed)

MSI+: Mega probe Side Imaging+

This front-engine Minn Kota ULTERRA Quest incorporates an MSI+ probe for high-quality digital imaging on handsets HumminbirdCompatible.

Explore up to 60m on each side of the boat , offering a 120m sweep. You won't miss a single school of fish, submerged structure or other remote element.

Mega Imaging+ signal processing enables the use of without loss of zoom mode detail in MSI+ view up to six times. It avoids pixel distortion by recalculating the image over the selected area, for a impressive image quality with ultra-realistic background detail in a single pass.

Many catches are often made at depths of less than 20m, so Mega Side Imaging+ excels in precision lateral imaging .

The function CHIRP 2D for a Traditional radar imagery in real time beneath the boat.

3 frequency ranges :

• 405-535 KHz
• 780-860 KHz
• 1000 - 1300 KHz

Advanced GPS and navigation modes

Minn Kota a revamped GPS system for automate boat position and control , while leaving the fisherman a total control via a wireless remote control. This update features a variety of navigation modes :

• Drift mode : solves the challenges of maintaining course and speed in the face of environmental change. Combines course indicator and cruise control , , simplifying boat movement management without the need for floating anchors or other trajectory control devices.
• Tracking mode : automates followed by a personalized contour based on criteria such as depth, bottom hardness and vegetation density, via a combined Humminbird.
• Dodge mode : allows you to quickly switch from automatic to manual navigation mode to avoid waves or structures, then resume navigation without resetting the route.
• Spot Lock & Jog Log this new feature: locks in the position of your fishing zone with unrivalled precision and offers the possibility of moving around if necessary.
• Autopilot mode follows a predefined route on your handset Humminbird.
• Return mode : retrace your steps back 3 km.
• Circle mode scanning a fishing zone around a specific point.
• Itracks & Track Offsets mode create, store, trace or return to fishing or navigation zones
• Routes mode connect multiple Waypoints and Spot-Locks to create a single route.

Remote control and foot pedal: stay in control

The range Quest brings a new wireless remote control (wireless)Combining the features of Minn Kota's renowned CoPilot, I Pilot and I Pilot Link remote controls.

Lightweight and waterproof , this remote control offers easy navigation thanks to intuitive menus and simplified keyboard. It has four customizable buttons Via One-Boat Network(three on the keyboard and one on the side).

The programmable electric pedal, meanwhile, allows you to Versatile control With AutoStow/Deploy and Power Trim modes. You'll also benefit from management , the speed , of on/off propeller , from Spot-Lock , and a customizable button One-Boat Network for easy access to the most frequently used functions.

What is the motor shaft length Quest ? ?

It is crucial to choose the right shaft length for the Minn Kota engine Quest to suit your boat. If it's too short, the propeller won't be submerged enough. Comptoir Nautique recommends :

• Measure the distance between the bow and the waterline.
• Add 10 cm to the waterline measurement for rough water fishing.
• Add 30 cm to the waterline measurement to steer a hand-operated motor while standing in the boat.

Connectivity Minn Kota & Humminbird

With the Minn Kota One-Boat Network, you benefit from simplified and easy-to-use control of on-board fishing equipment , enabling seamless integration of technologies (iPilot, iPilot Link, Talon, Raptor, Fish Smart).

Minn Kota products, Humminbird and Cannon are compatible with each other, allowing the connection of various devices such as minn Kota electric motors Several handsets Humminbird compatible, the winches Cannon, the anchors (Raptor or Talon) and even a smartphone application (including all boat functions). This compatibility makes it possible to create a fully connected fishing boat and high-performance.

Discover also the exclusive Battery gauge Quest Available only on handsets Humminbird. Once the on-board battery park has been configured, this gauge allows you to monitor :

• Autonomy in
• Motor battery voltage
• Available operating time
• The time when it will be empty

When autonomy reaches 20%, a alarm goes off and the motor automatically switches to ECO mode . . (Please note that these data are accurate only when the motor is running, i.e. when the propeller is turning)

MAIN POINTS :

• Enhanced GPS
• Automated motor
• Integrated MSI+ probe
• Intelligent & resistant
• Quiet & efficient
• Connectivity Humminbird
• Battery monitoring
• Several shaft lengths
• Different navigation modes

BOX CONTENTS :

• 1 - Minn Kota Ulterra front engine QuestMSI+ 114 cm
• 1 - Ulterra control pedal Quest
• 1 - Wireless remote control
• 1 - Power Propeller
• 1 - Network cable (9m)
• 1 - Ethernet network adapter
• 1 - PDF documentation
