EchoMAP UHD2 72sv Touch

TRADITIONAL 2D CHIRP SOUNDER

The EchoMap UHD2 72sv features the traditional CHIRP echo sounder: one of the most innovative technologies on the market. This provides ideal detection at depths of up to 240m (manufacturer's data), thanks to its high-frequency CHIRP coverage over a wider than usual beam.

• Denser information and sharper, high-resolution images
• Better target separation and sharper rendering of fish arches
• Improved bottom tracking and fish detection even at high speed

The 350W GT54UHD transom probe uses 2D CHIRP High Wide frequencies:

• 150-240 kHz 2D CHIRP: depth up to 200M

SIDEVÜ UHD TECHNOLOGY

SideVü technology lets you see what's happening on both sides of the boat. You'll be able to spot structures and, above all, fish. It's precise, with a highly detailed, high-resolution image.

This function makes it possible to locate fishing areas more quickly, thanks to an extremely wide 180° scanning field.

The 350W GT54UHD transom probe uses SideVü CHIRP frequencies:

• 1060-1170Khz In UHD SideVü: depth up to 35M
• 425-485Khz In SideVü: depth up to 100M

CLEARVÜ UHD TECHNOLOGY

ClearVü UHD technology is the most efficient on the market. It provides clear, high-quality images in Ultra High Definition of everything going on beneath the water's surface. You'll be able to see submerged structures, fish and objects with pinpoint accuracy.

• See thermoclines: boundary between water layers and oxygen-rich zones.
• Fish identification: no room for interpretation, it identifies clearly.
• Reveal structures: shipwrecks, vegetation, bridge piers, mortises...

The 350W GT54UHD transom probe uses ClearVü CHIRP frequencies:

• 760-880Khz In UHD ClearVü: depth up to 50M

COMPATIBLE LIVESCOPE LVS32 & LVS34

Probe LiveScope LVS32 Or LVS34 Optional.

QUICKDRAW CONTOURS FUNCTION

Quickdraw Contours software creates your hD fishing cards In real time. It's now possible to create your own maps without any special knowledge.

With the Garmin ECHOMAP UHD2 72sv, you can store the equivalent of 8000 km² of maps Quickdraw Contours with bathymetric curves displayed every 30 cm.

Download maps or share your own by connecting via WI-FI to the free ActiveCaptain app. Receive on-screen notifications of new updates to your echo sounder via the app.

WIFI AND ECHOMAP UHD2 CONNECTIVITY

Visit Garmin ECHOMAP UHD2 enables wifi connection of a smartphone to use the Active Captain application iOS and Android But above all connecting 2 ECHOMAP UHD2 echo sounders to each other to share the sounder view and user data.

With this system, you can, for example, have your 1st sounder cabled to your stern transducer, while a second sounder located forward receives the sounder view of the 1st wireless via wifi allowing you to fish from all sides of the boat, while always keeping an eye on one of the screens.

The 2nd useful feature of wireless is the ability to share certain sounder settings, in addition to screen copy. Here's what you need to know: sensitivity, range and interference filter.

This means you can fine-tune these sounder settings on either screen. For other settings, however, you'll need to use your main screen.

The wifi connection also lets you share updates. So you can put an SD update card in your first sounder, launch the update and then, once it's complete, re-launch it for the 2nd sounder via wifi, without moving the SD card from one to the other.

⚠️ No map sharing via wifi. You'll need a map on each of the 2 fishfinders

THE BEST CARDS

ECHOMAP UHD2 72sv gives you the best maps Garmin Navionics+ and Garmin Navionics Vision+. These include all the data Navionics, autoguiding technology and a host of other options. Use a microSD card (max. 32 GB) to store all your maps.

You can record up to :

• 5000 waypoints
• 50,000 plot points
• 50 tracks
• 100 routes

Thanks to built-in Wi-Fi, pair your device with the free ActiveCaptain app and access OneChart to update, buy or download new maps.

ECHOMAP UHD2 SV features Garmin at Comptoir Nautique

Global presentation Garmin ECHOMAP UHD2 SV

MAIN POINTS :

• 7" screen
• Wifi compatible
• CHIRP technology
• 10Hz GPS antenna
• LiveScope compatible
• 500W sounder module
• Water resistance: IPX7
• Resolution: 800 x 480 pixels
• MicroSD card slot (32 GB max)
• Physical dimensions: 21.8 x 14.2 x 8.1 cm

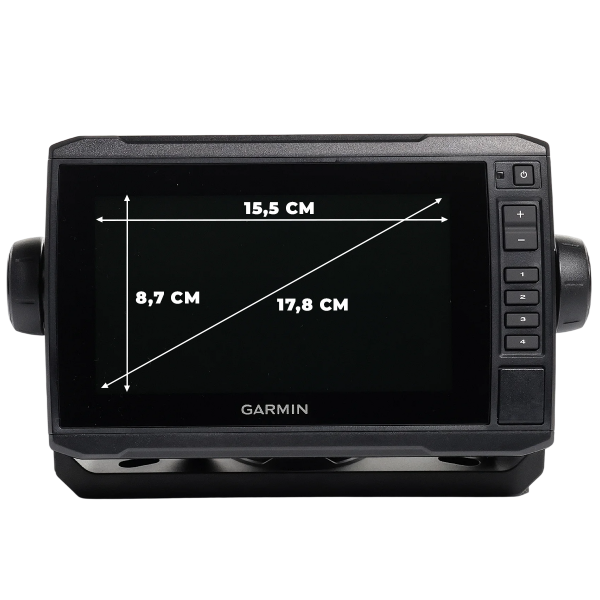

• Screen size (W x H x Diagonal): 15.5 x 8.7 x 17.8 cm

BOX CONTENTS :

• 1 - Garmin ECHOMAP UHD2 72sv
• 1 - Protective cover
• 1 - Flush mounting kit
• 1 - Power/data cable
• 1 - Rear transom sensor GT54UHD-TM (depending on Pack)
• 1 - 8 pin probe/12 pin sounder cable (version without probe)
• 1 - Tilt and swivel bracket with quick-release base
• 1 - PDF documentation
