X9 MEGA SI+

TRADITIONAL 2D SONAR CHIRP

The Minn Kota X10 is equipped with a fish finder CHIRP 1,000-watt single-channel sonar. It displays detailed images to help you better identify fish and changes in the seabed terrain.

• More detailed, high-resolution images
• Better separation of targets, with clearer fish arcs
• Improved seafloor monitoring to locate fish

The probe holder accepts probes CHIRP single-channel in the low, mid, and high frequencies.

Available frequencies:

• Narrow Beam 180-240 kHz at 25°
• Wide beam 140-200 kHz at 42°

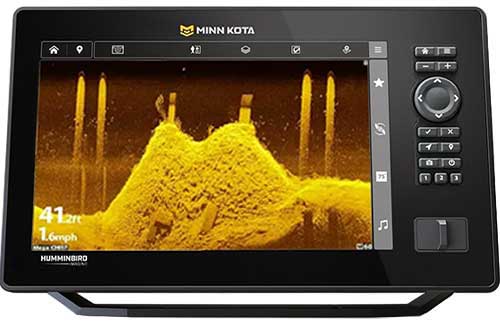

MEGA DOWN IMAGING+

The MEGA Down Imaging+ doubles the operating depth of the MEGA Down Imaging. This allows you to explore areas that were previously out of reach for these very high frequencies.

This technology captures detailed images of the seafloor, even when you're exploring deeper areas.

Frequencies of the MEGA Imaging+ module:

• 455 / 1,200 kHz

With compatible probe

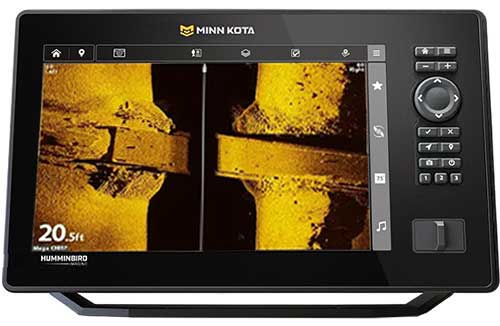

MEGA SIDE IMAGING+

With MEGA Side Imaging+, scan up to 60 m on either side of the boat, for a total coverage of 120 m.

The MSI+ zoom offers up to 6x magnification without any loss of detail, thanks to signal processing.

Instead of simply enlarging the pixels, the fishfinder recalculates the image of the selected area. This allows you to examine the fish and structures visible on either side of the boat in greater detail.

Frequencies of the MEGA Imaging+ module:

• 455 / 1,200 kHz

With compatible probe

AUTOCHART LIVE

With AutoChart Live, create your own depth charts of the bodies of water you're exploring, for your personal use. The map is displayed directly on the fishfinder and is updated as you move.

AutoChart Live comes preloaded with 8 hours of recording capacity. In addition to the seabed topography, it can display variations in vegetation and seabed hardness. This allows you to review the characteristics of the areas you’ve explored based on the data collected during your trips.

To increase the memory capacity of AutoChart Live, the AutoChart map is necessary.

GPS & MAPS

The Minn Kota X10 features a built-in 10 Hz GPS antenna to accurately track your position while navigating and help you find your favorite fishing spots.

Waypoint and route management has been redesigned. The device can store up to 10,000 waypoints and routes, with search, sorting, import, and export features to help you organize your locations.

The X10 is compatible with the following cards Navionics+, , Platinium+, , CoastMaster and LakeMaster.

Please note that the navigation map is not included with the device.

CONNECTIVITY AND NETWORKING

Thanks to its Ethernet port, the Minn Kota X10 can be connected to other compatible devices installed on your boat.

It also supports NMEA2000, Bluetooth, and Wi-Fi connections-Fi to communicate with the various devices in your system.

Depending on your setup, you can, for example, connect it to a radar CHIRP, an AutoPilot system, a VHF radio, or a Audio equipment Fusion compatible.

MINN KOTA FISHING ECOSYSTEM

The X10 can connect wirelessly to a compatible Minn Kota motor. Once the devices are paired, you can access the motor controls and several navigation features directly from the fishfinder screen.

• Draw & Navigate: Plan a route for your Minn Kota motor
• Intelligent Depth Control: Monitor the depth
• Wireless Connection: Communicate Directly with Your Minn Kota Motor
• Minn Kota Fishing: Manage Your Gear and Waypoints Using the App
• Minn Kota Live Sonar: Record and Share Your Sonar Images
• Wi-Fi: Download updates and manage your compatible devices
• Minn Kota Maps: Access mapping with premium maps (optional)

Depending on the connected devices, you can access your routes, fishing spots, and compatible controls from your onboard system.

KEY POINTS:

• Wi Updates-Fi
• Internal GPS
• Power: 1,000 W
• Improved interface
• NMEA2000 Connection
• Faster processor
• Resolution: 1280 x 800 px
• CrossTouch: Touchscreen and Buttons

BOX CONTENTS:

• 1 - Minn Kota X10 MEGA SI+ Display
• 1 - Silicone protective cover
• 1 - Screen Mounting Bracket
• 1 - 12V Power Cable
• 1 - PDF Documentation
