X processor

Ref. PF000187

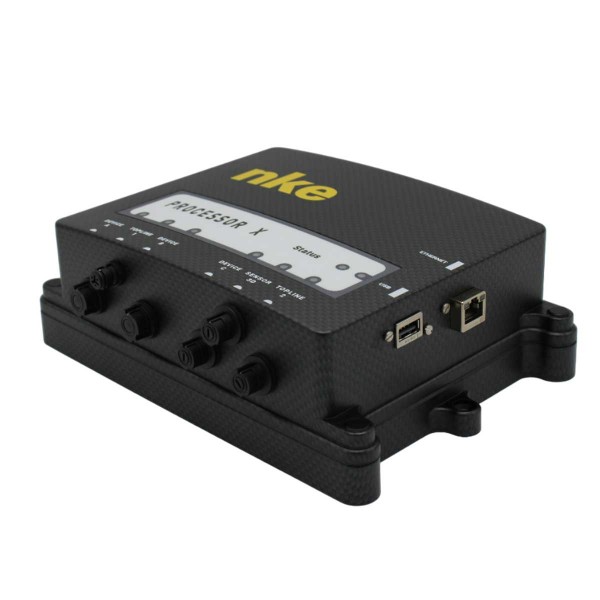

The Processor X NKE, a worthy replacement for the Processor Regatta, is an advanced computer capable of high-frequency processing of all on-board sensor data.

Read more Features
€3,229.90 Tax included
Public price
€3,624.00
-10%
🐓 French days
Public price
€3,624.00
€3,129.90
with the code FRENCH25
-13%
Offre valable encore
or pay in
20x 60x
Price tax excl. / DOM TOM €2,691.58
Quantity
By buying this product you can collect up to 3229 loyalty points. Your cart will total 3229 points that can be converted into a voucher of €32.29.
PF000187

Data sheet

Driver
Calculator
Interface
Wind Module, Loch Sounder module
Description

NKE - Processor X - Ultra-fast calculator

Designed for sailors who want to master the fine calibration of their sensors, the Processor X NKE is a central calculator that will provide you with precise navigation information to help you make tactical and strategic decisions. The Processor X perfectly complements the NKE 3D Sensor HR.

Its recording capabilities will be an invaluable aid to analyzing and interpreting performance in post-processing, using industry-standard tools.
acquisition des données des capteurs de navigation du Processor X

Navigation data acquisition

Equipped with a multitude of communication ports (Topline, Serial, GPIO, etc.), it is possible to connect a wide variety of sensors, keyboards for special actions, and third-party ECUs.

Multiple data sources can be selected to apply filters, arithmetic or conditional operators, and tables to feed standard bus channels or create custom variables.

The latter can be published in dynamic channels or simply saved for later analysis.

It can therefore be used to process and calibrate the data required for navigation and autopilot.

Processor X features

Processor X NKE features a WEB interface for configuration and supervision. This interface has 5 tabs:

  • Dashboard
  • Devices
  • Calculations
  • Recordings
  • Settings and system tools

This WEB interface has been designed to run on Chrome and Firefox PC browsers. It is also available via TopSailor software for full integration of the environment's tools NKE.

 Fonctionnalités et interface WEB du Processor X NKE

Processor X technical specifications NKE

Dimensions (with connector sockets) 212 x 161 x 71 mm
Weight 473g
Power supply
DC (continuous) 12V (9-32V)
Power consumption (operating) 100mA at 12V
Operating temperature range -10°C / +50°C
Storage temperature -20°C / +60°C
Waterproofing IPX6

MAIN FEATURES :

  • WEB interface
  • Optimized navigation
  • Ultra-fast calculator
  • Multiple inputs/outputs

CONTENTS OF THE BOX :

  • 1 - Processor X NKE
  • 1 - PDF documentation

Accessories

3D Sensor HR
