3D Sensor HR

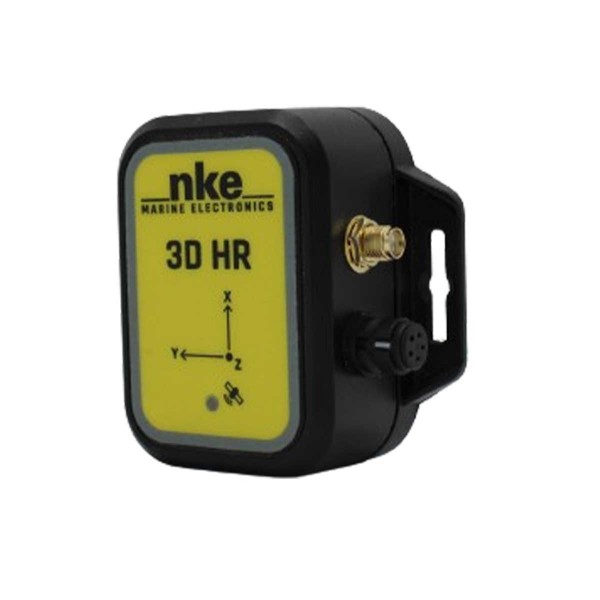

Name: 3D Sensor HR
Brand: NKE

The NKE 3D Sensor HR is a high-precision instrument that measures your boat's movements and orientation in real time .

NKE - 3D SENSOR HR - FOR PRECISE ORIENTATION OF YOUR BOAT

The 3D Sensor HR NKE is an inertial navigation system supported by GNSS (INS/GNSS) and magnetometers. The high-precision internal sensors are based on MEMS (Micro-electro-mechanical systems) technology, which enables real-time measurement of the boat's movements and calculation of its orientation.

It connects to the Processor HR or Processor X.

Caractéristiques du capteur NKE 3D Sensor HR

3D SENSOR HR INERTIAL MOTION SENSOR

The space-saving NKE 3D Sensor HR offers excellent dynamic response and long-term stability (no drift).

On each inertial unit, 12 calibrated data in standardized units:

3 accelerations
3 gyration speeds
3 magnetic fields
3 Euler angles (roll, pitch, yaw)

This 3D Sensor NKE also accepts pulse synchronization.

Sensor features :

Angular resolution: 0.05
Magnetic heading accuracy (with GNSS): 0.2°
Magnetic heading accuracy (without GNSS): 0.8°
Pitch and roll accuracy: 0.1°
Gyroscopes: ± 2000°/s
Accelerometers: ± 16G

Technical specifications NKE 3D Sensor HR

Dimensions	110 x 56 x 39 mm
Weight	71g
Power supply	5V to 36V DC (continuous)
Power consumption
Waterproofing	IP67
Operating temperature range	-10°C to +50°C
Storage temperature	-20°C to +60°C
