MLI Ultra 24V/6000Wh - 230Ah battery

Name: MLI Ultra 24V/6000Wh - 230Ah battery
Brand: Mastervolt

The MLI Ultra 24V - 6000Wh - 230Ah lithium-ion battery is a powerful , reliable solution for a wide range of energy needs. With a capacity of 6000 Wh and an amperage of 230 Ah , it offers exceptional performance .

Compact and lightweight , it's easy to integrate into a variety of applications. The Ultra MLI battery from Mastervolt is a trusted option for those looking for a durable and efficient power source.

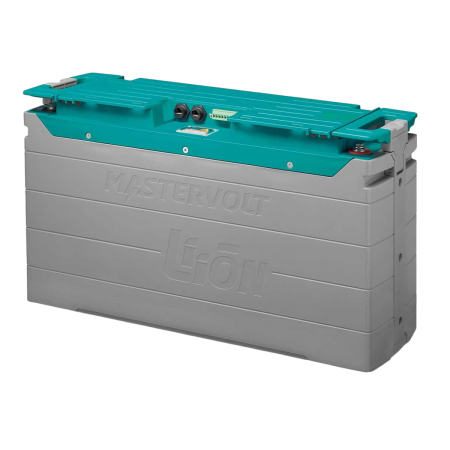

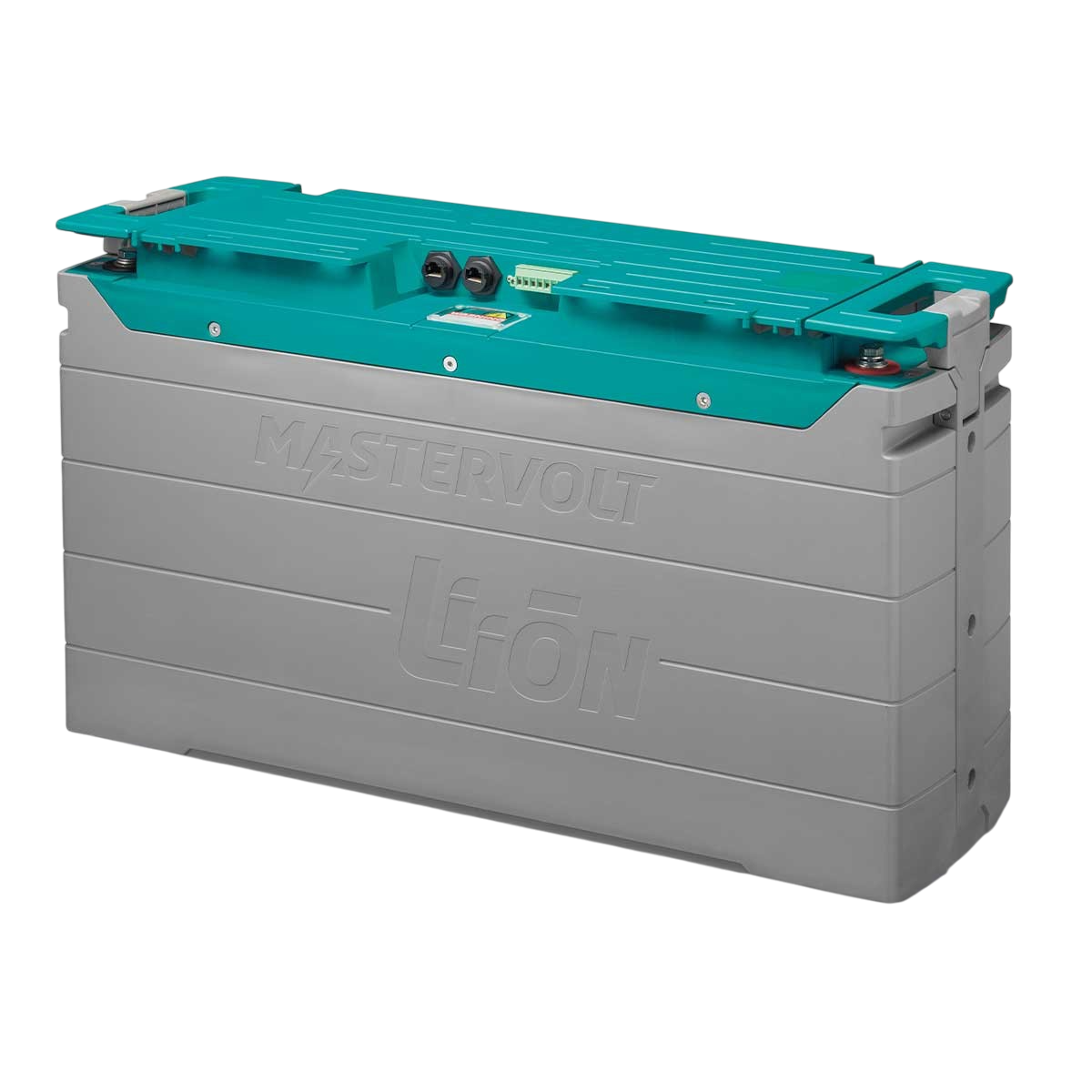

MASTERVOLT- MLI ULTRA BATTERY 24V - 6000 WH - 230 AH

The MLI range excels in lithium-ion performance, even under extremely demanding conditions such as high charge/discharge , humid environments, mechanical shock or vibration . This performance is achieved by combining our top-quality Lithium-Fer Phosphate (LiFePO4) cells with an exclusive battery management system (BMS ), integrated in a robust, waterproof housing.

The advanced Mastervolt BMS ensures optimum performance from every cell. Integrated battery monitoring gives you accurate , up-to-date information on battery status. Integrated NMEA2000 , CZone and MasterBus communication enables full system connection, ensuring optimum charging while maximizing battery life .


	High-performance, ingenious battery MLI Ultra batteries feature a self-balancing algorithm that anticipates and adjusts the behavior of each cell, for faster, more efficient charging. This system avoids stress on the cells inside the battery, and prolongs its life . Installing your battery is simple. Connect the MLI Ultra 6000 to a compatible Mastervolt charger, connect the communication cable and the battery automatically configures the charger via the Plug-and-play system. This makes charging easy and trouble-free, with no need for configuration tools.

The ULTRA MLI battery Robust , high-performance lithium-ion batteries. BMS and LiFePO4 chemistry complying with the highest safety standards. Automatic balancing algorithm for optimized performance and extended battery life. Lasts over three times longer than conventional batteries. Space and weight savings of up to 70% Charge and discharge rates up to 2.5 C Charging in 1 hour Connection of up to 10 batteries in series Battery monitoring (Ah consumed, state of charge). MasterBus communication with any battery charger Mastervolt or intelligent remote control . CZone and NMEA2000 compatible 100% waterproof For further information, please refer to the installation and user manual at the bottom of this page

MLI ULTRA 24V/6000W - 230Ah SPECIFICATIONS

Recommended continuous discharge current	≤ 200 A
Maximum discharge current (20min at 25°C)	500 A
Nominal battery voltage	24V
Nominal battery capacity	230 Ah
Nominal battery energy capacity	6000 Wh
Cycle life	3500 cycles at 80% DOD at 25°C
Maximum charging current	230A
Recommended charging current	≤ 80 A
Max permanent discharge current	200 A
Peak discharge current	1800 A (10 sec)
Battery monitoring	yes
Battery terminals	M8
Mounting position	vertical (recommended)
Protection class	IP65 (control cabinet)
Parallel connection	Yes, unlimited
Protections	overvoltage, undervoltage, overtemperature
Safety relay	must be added: 7702B-BSS
Stop relay controls	Integrated
