T72FC steering box

Ref. OSC-45.072.00

The Ultraflex T72 FC rotary steering gear for high-power engines is designed for boats up to 10.50 m in length and speeds in excess of 50 mph, and incorporates the advantages of the T71 while operating with two M66 cables.

It's the ideal accessory for a precise wheelhouse on board.

Read more Features
from
€262.81 Tax included
Public price
€300.46
-12%
Price tax excl. / DOM TOM €262.81
Quantity
Choose a version
In stock in 8 to 10 days
262 loyalty points.
Article
Description M66 cable only Cover - 90° black Chrome-plated - 90° bezel Hubcap - 20° black
In stock in 8 to 10 days
T 72" steering box 45.185.xx * OSC-45.055.02 OSC-45.055.05 OSC-45.055.03
€262.81
OSC-45.072.00

Data sheet

Number of revolutions
3,8
Enclosure type
Management
Description

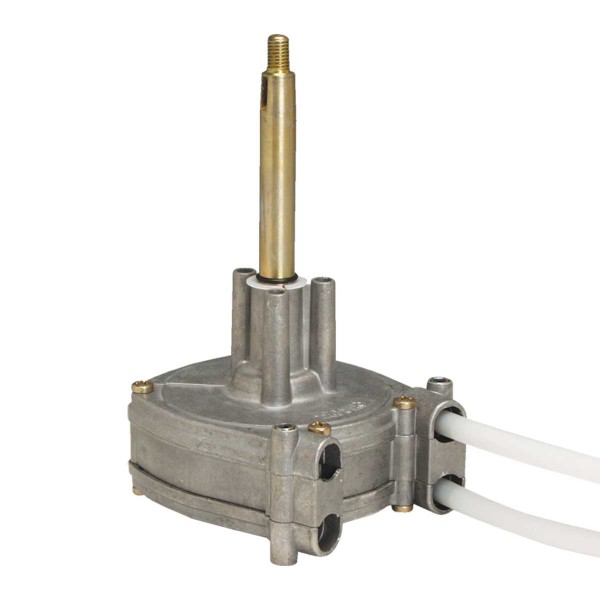

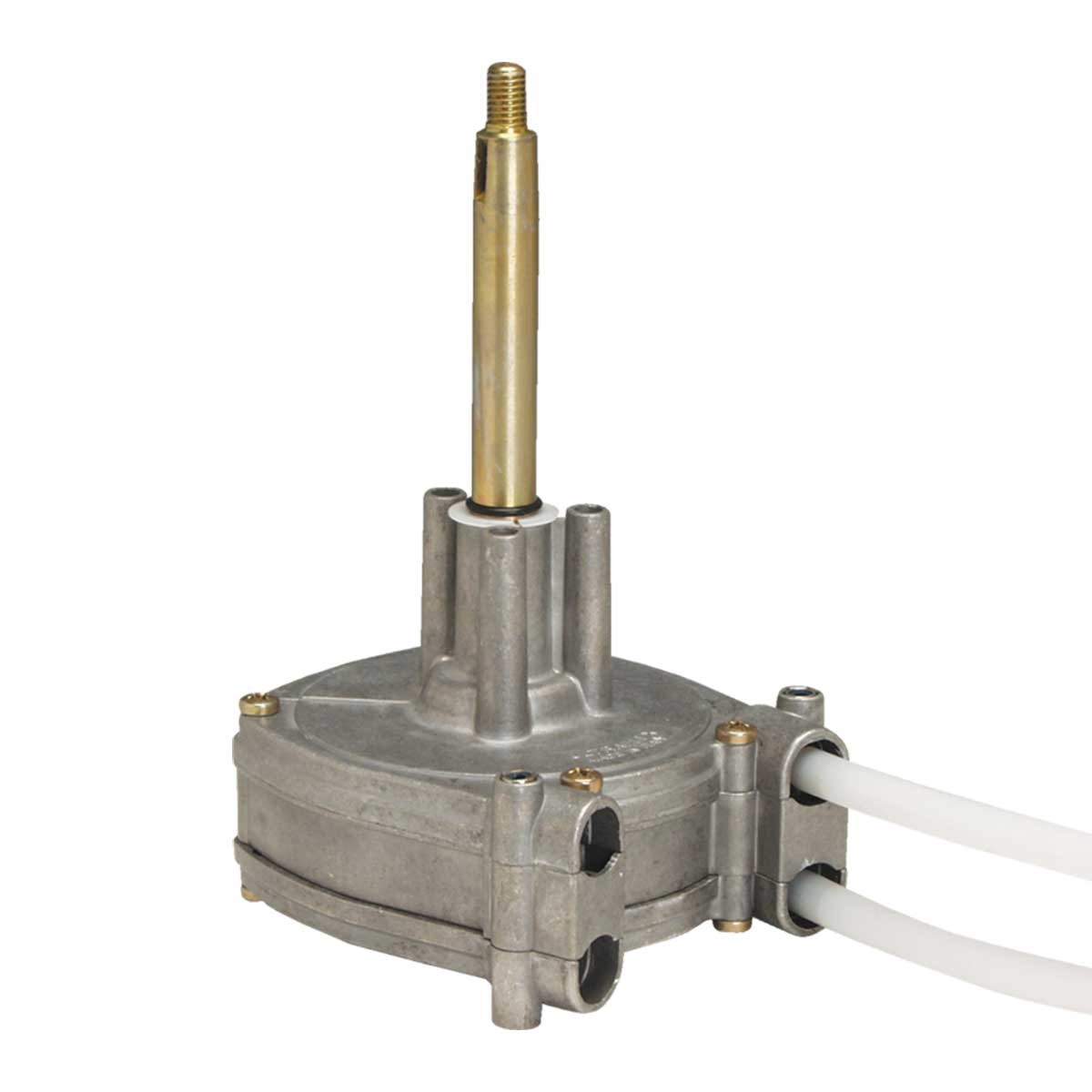

Ultraflex - T72FC steering box

The T72 FC rotary steering gear is designed for demanding installations with high-power motors. It is suitable for boats up to 10.50 m in length and for fast sailing at speeds in excess of 50 MPH.

Based on the features of the T71, it stands out for its operation with two M66 cables, for helm control adapted to the most demanding configurations.

MAIN POINTS :

  • 90° or 20° mounting
  • Standard 3/4" tapered shaft
  • Planetary steering system
  • Number of steering wheel revolutions: 3.8
  • Operates with two M66 cables
  • Max. flywheel diameter: 406 mm
  • Minimum cable bending radius: 200 mm

BOX CONTENTS :

  • 1 - T72 FC steering box
  • 1 - PDF documentation





Download

Manual T71-T72

Installation manual T71 steering boxes-T72 Ultraflex (EN-IT-FR)

Download (599.99k)
