RAM T2 Pilot Hydraulic Cylinder-, 24V

Name: RAM T2 Pilot Hydraulic Cylinder-, 24V
Brand: B&G

Ref. ALM-KNT-RAM-T2-24V

autopilot 's RAM T2-24V hydraulic cylinder is designed for under-deck installation. Compact, pre-filled, and sealed, it combines the cylinder, pump, motor, clutch, and reservoir into a single unit. It delivers up to 700 kg of thrust, a stroke of 264.6 mm, and a steering time of 9 seconds for precise and reliable steering.

€1,853.25 Tax included

-10%

€2,070.00

Pay in installments

3x 4x 10x 12x 24x 60x

or pay in

Quantity

IN SUPPLIER STOCK

Fast delivery learn more

1853 loyalty points Earn €18.53 in rewards

Experts’ advice Contact us from 8 AM to 5 PM

Trustpilot reviews 94% satisfaction based on 3,800 reviews

Reseller Premium

Payment 100% secure

Reference ALM-KNT-RAM-T2-24V

Data sheet

Voltage: 24V

Description
Attachments
Accessories
Customer Reviews
Questions / Answers
Products also ordered

Description

B&G - RAM T2 Pilot Hydraulic Cylinder 24V Compact Power for- - autopilot

The RAM T2 B&G- 24V is a linear hydraulic actuator designed for boats equipped with reversible mechanical steering. It combines the actuator, pump, motor, clutch, and hydraulic reservoir into a single unit to simplify installation of the autopilot.

Delivered pre-filled and sealed, it is installed below deck and delivers up to 700 kg of thrust with a nominal steering time of 9 seconds. Its monoblock design minimizes the footprint and reduces the number of components to be installed. Power Steer mode can also be used in the event of a manual steering failure.

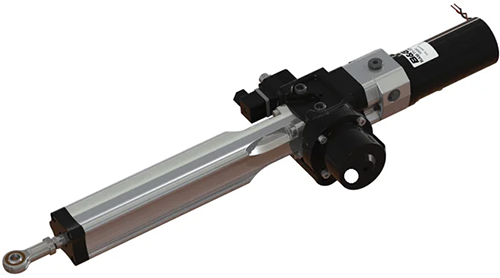

B&G RAM T2-24V - unité hydraulique compacte pour pilote automatique

All--unit at-

The 24V RAM T2-integrates the cylinder, pump, motor, clutch, and hydraulic reservoir into a single unit. This design reduces the number of components that need to be connected and facilitates installation under the deck. The unit is delivered pre-filled and sealed to minimize commissioning steps.

Cylinder, pump, and motor combined into a single unit
Compact design for limited engine compartments
Pre-filled and factory-sealed
Under-deck mounting

This design simplifies the integration of the autopilot and eliminates the need for external hydraulic components.

SPECIFICATIONS FOR THE RAM T2 24V HYDRAULIC CYLINDER-

Voltage	24 V
Stroke	264 mm
Thrust	700 kg
Weight	8 kg
Maximum pressure	62 bar
Eye diameter	12 mm
Dimensions (L x W x H)	728 x 225 x 118 mm
