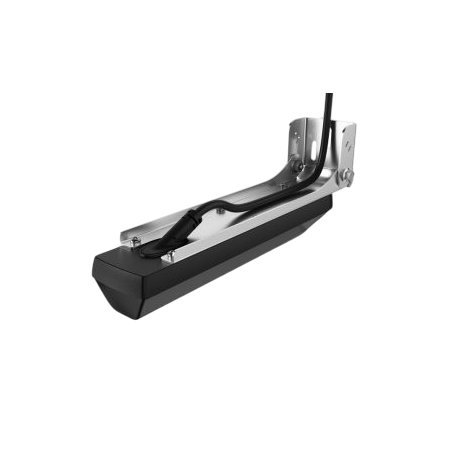

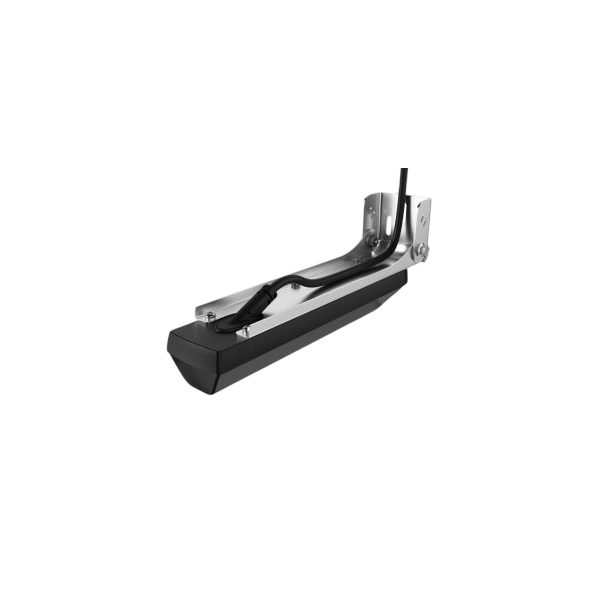

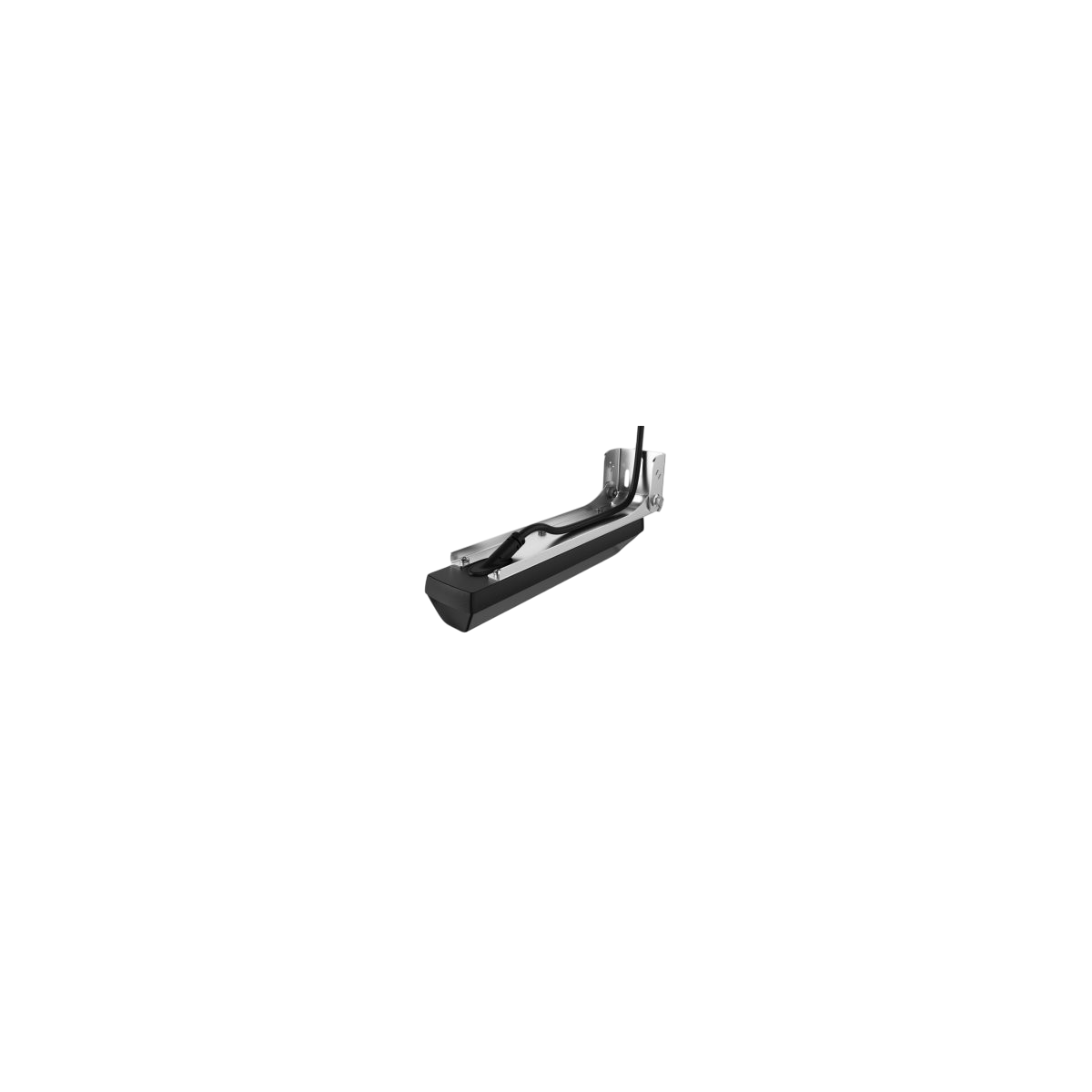

Active Imaging HD 3in1 M/H probe with SideScan FishReveal

Ref. 000-16060-001

Take advantage of high-definition imaging with the Lowrance Active Imaging HD 3 in 1 - Medium/High

SideScan HD and DownScan HD give you the clearest images of fish and structures , while 2D technology CHIRP ensures perfect target separation while maintaining excellent clarity .

Read more Features
€533.90 Tax included
Public price
€598.80
-10%
Price tax excl. / DOM TOM €444.92
Quantity
Last items in stock
By buying this product you can collect up to 533 loyalty points. Your cart will total 533 points that can be converted into a voucher of €5.33.
000-16060-001

Data sheet

Power probe
600 W
Sounder technology
2D + Down + Side Imaging
Probe Mounting
Rear panel
Description

LOWRANCE - ACTIVE IMAGING HD 3 IN 1 PROBE - CHIRP, dOWNSCAN HD & SIDESCAN HD + FISHREVEAL

The probe Active Imaging HD combines three essential 2D sounder technologies CHIRP and DownScan Imaging HD and Sidescan Imaging HD in one convenient package. This probe also features a new design for improved signal clarity. Enjoy exceptional fishing quality thanks to this new 3 in 1 HD probe

This probe also offers the option of DownScan HD with FISHREVEAL which superimposes the 2D view CHIRP downscan imaging HD view and also SideScan HD + Fishreveal (which requires the s3100 sounder module)

This probe offers unprecedented clarity and improved target separation with highly detailed views of fish and fish-bearing areas such as rock piles, pieces of wood, seaweed, ditches, slopes and much more.

Functionality Active Imaging HD is compatible with HDS PRO .To benefit from this technology on HDS LIVE, HDS Carbon and Elite FS models, the integration of a s3100 sounder module is required.


Technologie CHIRP de la sonde Lowrance Active Imaging HG 3 en 1

TRADITIONAL 2D SOUNDER CHIRP

The traditional sounder function uses the coverage CHIRP high frequency on a wider beam than usual, for optimum detection at depths of up to 100m.

With technology CHIRP, benefit from:

  • More information and sharper image at high resolution
  • Better target separation and sharper rendering of fish arches
  • Improved bottom tracking and fish detection even at high speed



DOWNSCAN ACTIVE IMAGING HD TECHNOLOGY

Exclusive innovation Lowrance DownScan Imaging HD displays a crystal-clear image of the underwater world. No need to interpret for :

  • See thermoclines: boundary between water layers and oxygen-rich zones.
  • Fish identification: no room for interpretation, it identifies clearly.
  • Reveal structures: wrecks, vegetation, bridge pillars, corpses-dead...

Technologie DownScan HD de la sonde Lowrance Active Imaging HG 3 en 1



Technologie SideScan HD de la sonde Lowrance Active Imaging HG 3 en 1

SIDESCAN ACTIVE IMAGING HD TECHNOLOGY

SideScan Imaging HD from Lowrance gives you a picture of the sides of the boat, not the plumb line. The capacity of this sounder is 50m on each side.

Discover ultra-high-definition images of fish and submerged structures on either side of your boat's hull. This function allows you to locate fishing areas more quickly, thanks to an extremely wide 180° scanning field.



DOWNSCAN HD TECHNOLOGY WITH FISHREVEAL

Discover the power of Fisreveal technology, an exclusive innovation from Lowrance which combines the advantages of CHIRP and DownScan Imaging on a single screen.

Thanks to the FishReveal DownScan view, easily identify fish within structures and areas captured by DownScan images with remarkable precision.

Technologie Downscan HD fishreveal



Technologie SideScan H + FishReveal

SIDESCAN ACTIVE IMAGING HD TECHNOLOGY WITH FISHREVEAL

Get the clearest images of fish and structures with the FishReveal SideScan* view, which combines the 2 CHIRP to SideScan HD view

*Requires s3100 sounder module

TECHNICAL SPECIFICATIONS OF THE LOWRANCE ACTIVE IMAGING HD 3 IN 1 PROBE

Outputs
  • CHIRP
  • SideScan
  • DownScan
  • Temperature
Frequencies
  • CHIRP : 80 / 200 kHz
  • SideScan: 455 / 1075 kHz
  • DownScan: 700 / 1200 kHz
Max. depth
  • Traditional: 305 m
  • SideScan: 91 m
  • DownScan: 91 m
Waterproofing IP67
Dimensions (H x W x D in mm) 150 x 83 x 58
Weight 1.21 kg
Operating temperature -15 to +55°C
Storage temperature -30 to +70°C

Probe comparison Lowrance active imaging 3 in 1 HD

Ref 000-16062-001 000-16060-001
Frequency

Medium / High

Medium / High

2D Chirp
DownScan Imaging HD
SideScan Imaging HD
DownScan with FishReveal
SideScan with FishReveal ✅*

MAIN POINTS :

  • CHIRP
  • 600W power
  • SideScan Imaging HD
  • DownScan Imaging HD
  • DowScan Imaging + FishReveal
  • SideScan Imaging HD + FishReveal
  • More detailed HD views and improved range

BOX CONTENTS :

  • 1 - Probe Active Imaging HD 3 in 1
  • 1 - Mounting kit (transom mounting bracket + screws)
  • 1 - PDF documentation




Download

Manual Active Imaging HD 3 in 1

Installation manual Sensor Active Imaging 3 in 1 HD (FR-EN-ES-DE-POR-IT)

Download (3.51M)
