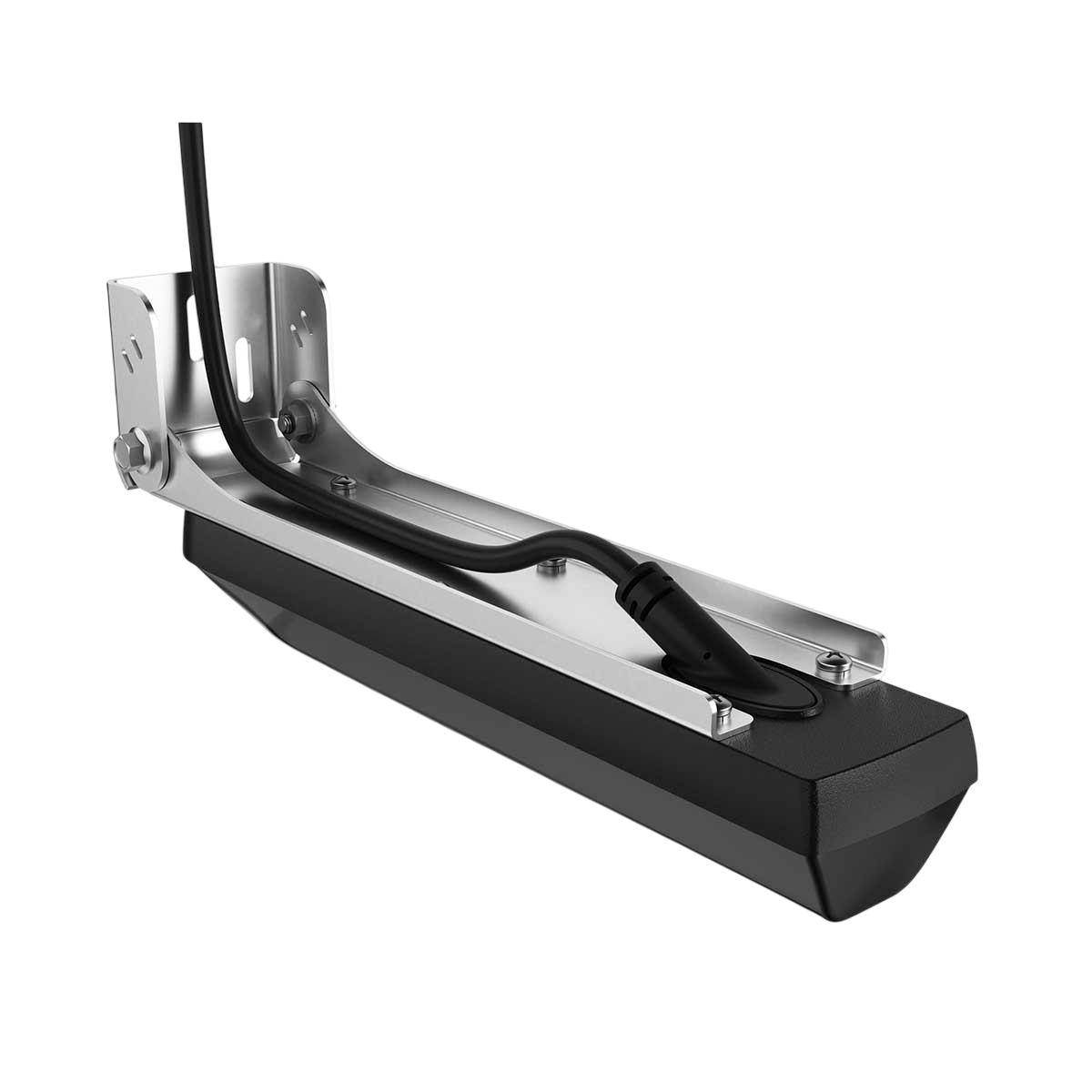

Active Imaging HD 3-in-1 probe M/H

Name: Active Imaging HD 3-in-1 probe M/H
Brand: Lowrance

Enjoy high-definition imaging with Lowrance Active Imaging HD 3 in 1 - Medium / High

SideScan HD and DownScan HD give you the clearest images of fish and structures , while 2D technology CHIRP ensures perfect target separation while maintaining excellent clarity .

LOWRANCE - ACTIVE IMAGING HD 3-IN-1 PROBE - CHIRP , DOWNSCAN HD & SIDESCAN HD

The Active Imaging HD probe combines three essential 2D sounder technologies CHIRP and DownScan Imaging HD and Sidescan Imaging HD in one convenient package. It also features a new design for improved signal clarity. Enjoy exceptional fishing quality with this new 3-in-1 HD transducer

This probe also offers the DownScan HD with FISHREVEAL option, which superimposes the 2D CHIRP view onto the Downscan imaging HD view. (The SideScan HD with Fishreveal option is available on version 000-16060-001 only)

This probe offers unprecedented clarity and better target separation thanks to extremely detailed views of fish and fishy areas such as rock piles, pieces of wood, seaweed, ditches, slopes and much more.

The Active Imaging HD feature is compatible with HDS PRO models. To benefit from this technology on HDS LIVE, HDS Carbon and Elite FS models, integration of an S3100 sounder module is required.


	TRADITIONAL 2D SOUNDER CHIRP The traditional sounder function uses high-frequency CHIRP coverage on a wider beam than usual, enabling optimum detection down to 100m without any problems. With CHIRP technology, you benefit from: Denser information and a sharper, high-resolution image Better target separation and sharper rendering of fish arches Improved bottom tracking and fish detection even at high speed

DOWNSCAN ACTIVE IMAGING HD TECHNOLOGY The exclusive innovation Lowrance DownScan Imaging HD displays a crystal-clear image of the underwater world. No need for interpretation to : See thermoclines: the boundary between water layers and oxygen-rich zones. Identify fish: no room for interpretation, it identifies clearly. Reveal structures: wrecks, vegetation, bridge piers, dead bodies-...

	SIDESCAN ACTIVE IMAGING HD TECHNOLOGY The SideScan Imaging HD function on Lowrance gives you an image of the sides of the boat, not the plumb line. This sounder has a capacity of 50m on each side. Discover ultra-high-definition images of fish and submerged structures on either side of your boat's hull. This feature allows you to locate fishing areas more quickly thanks to an extremely wide 180° scanning field.

DOWNSCAN HD TECHNOLOGY WITH FISHREVEAL Discover the power of Fisreveal technology, an exclusive innovation from Lowrance that combines the advantages of CHIRP and DownScan Imaging on a single screen. Thanks to the FishReveal DownScan view, easily identify fish within structures and areas captured by remarkably accurate DownScan images .

TECHNICAL SPECIFICATIONS OF THE LOWRANCE ACTIVE IMAGING HD 3 IN 1 PROBE

Outputs	CHIRP SideScan DownScan Temperature
Frequencies	CHIRP sideScan : 80 / 200 kHz SideScan: 455 / 1075 kHz DownScan: 700 / 1200 kHz
Max. depth	Traditional: 305 m SideScan: 91 m DownScan: 91 m
Watertightness	IP67
Dimensions (H x W x D in mm)	150 x 83 x 58 mm
Weight	1.21 kg
Operating temperature	-15 to +55°C
Storage temperature	-30 to +70°C

Probe comparison Lowrance active imaging 3 in 1 HD

Ref	000-16062-001	000-16060-001
Frequency	Medium / High	Medium / High
2D Chirp	✅	✅
DownScan Imaging HD	✅	✅
SideScan Imaging HD	✅	✅
DownScan with FishReveal	✅	✅
SideScan with FishReveal	❌	✅*
