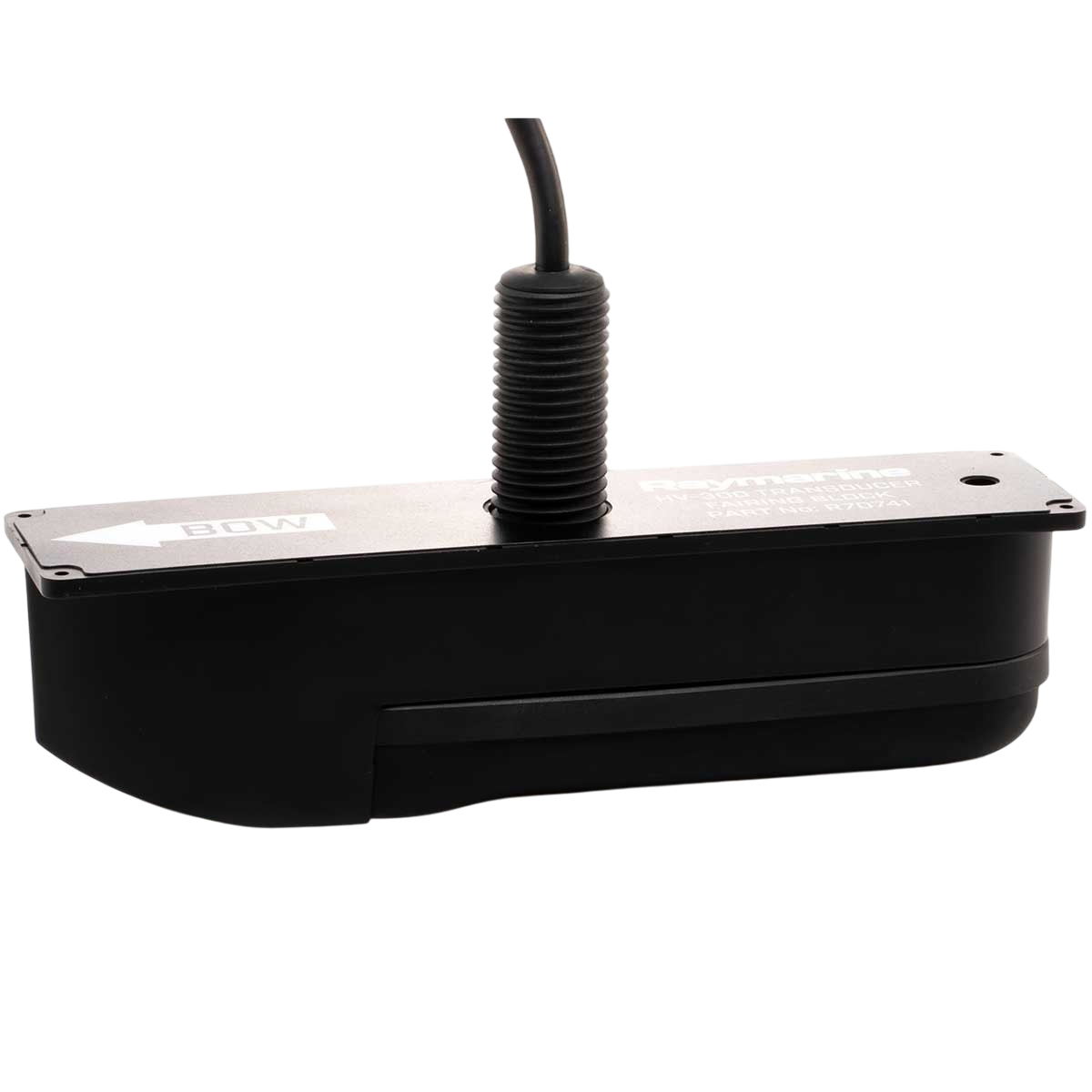

RAYMARINE - HV-300 HYPERVISION TRAVERSANTE 0° - PROBE FOR ELEMENT
The HyperVision probe from Raymarine delivers a multitude of frequencies in a single package. Capable of simultaneously delivering 3D RealVision, Downvision, SideVision and high-frequency CHIRP technologies, it's the only space-saving depth sensor you'll ever need.
HyperVision DownVision and SideVision 1.2 MHz frequencies deliver optimum clarity and realistic sonar imagery. This compact, easy-to-install sensor can reach depths of 30 meters without loss of resolution. If you switch to the standard 350 kHz frequency, you can reach depths of up to 180 m.
Technical specifications Raymarine HV-300 HyperVision Traversante :
- Materials : Plastic
- Max. depth (ft): 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Tapered: 900
- Frequency (kHz): CHIRP 1.2 MHz / CHIRP 350 kHz / High CHIRP 200 kHz
- Beam width: 3D: 180° / Low: 60° / Conical: 25°
- Recordings : Depth / temperature
- Shell materials: Fiberglass / metal
- Cable length (ft/m): 19 / 6
- Varangue survey angles: 0-25
