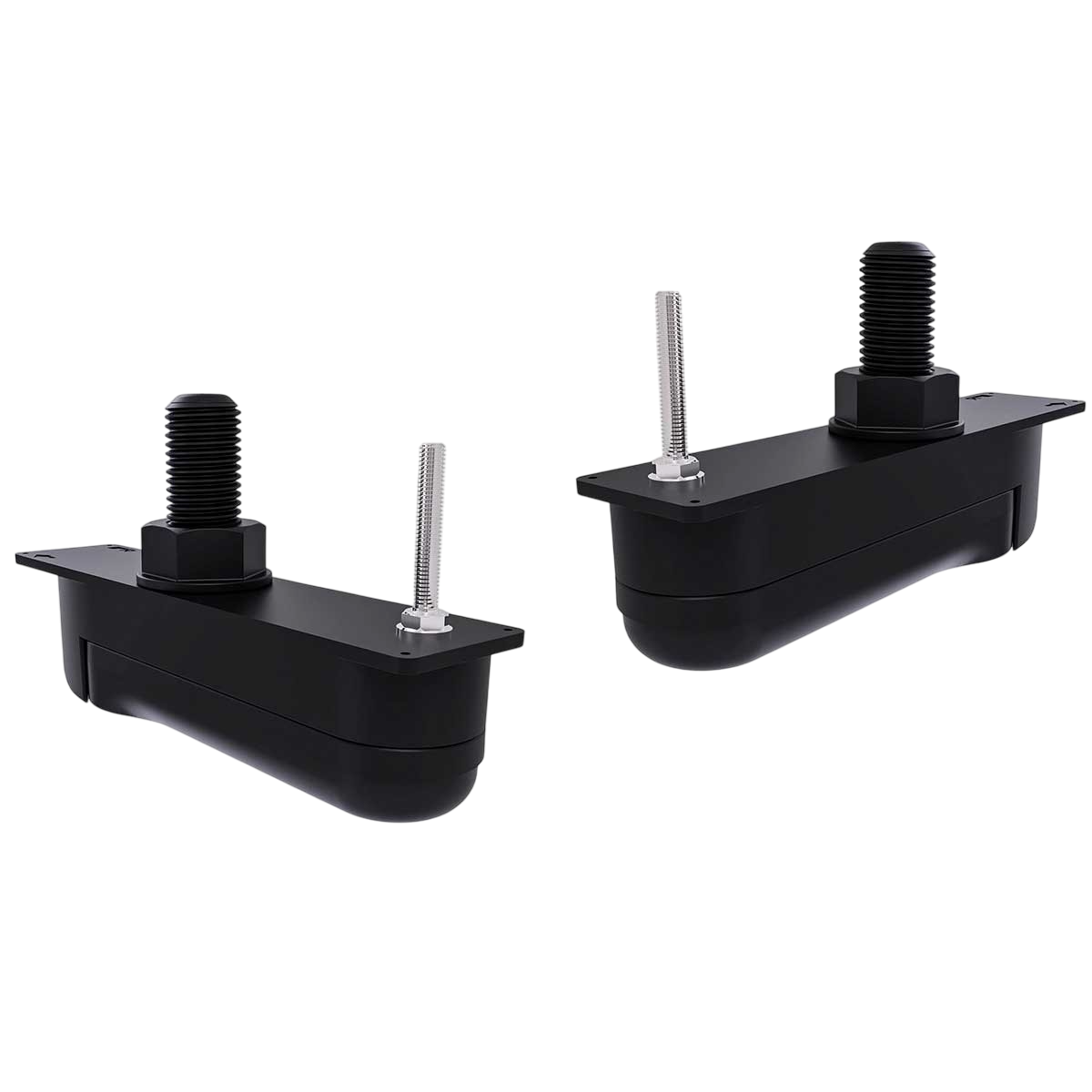

Dual HV-300 HyperVision Traversante 12° probes
Ref.
T70448
The HV-300 HyperVision 12° double through probe for Element combines the highest frequencies (1.2 MHz) with exceptional CHIRP technology, setting a new standard in precision! This probe delivers razor-sharp images on your Element display.
Supplied with port 12° probe, starboard 12° probe, Y-cable and 4m extension lead.
Read more Features
€659.90
Tax included
Public price
€774.00
Price tax excl. / DOM TOM
€549.92
T70448
Data sheet
- Probe Mounting
- Traversante
- Product type
- Probe
RAYMARINE - DUBLE PROBE HV-300 HYPERVISION TRAVERSANTE 12° - PROBES FOR ELEMENT
The HyperVision dual probe from Raymarine delivers a multitude of frequencies in a single package. Capable of simultaneously delivering 3D RealVision, Downvision, SideVision and high-frequency CHIRP technologies, it's the only space-saving depth sensor you'll ever need.
HyperVision DownVision and SideVision 1.2 MHz frequencies deliver optimum clarity and realistic sonar imagery. This compact, easy-to-install sensor can reach depths of up to 30 meters without loss of resolution. If you switch to the standard 350 kHz frequency, you can reach depths of up to 180 m.
Technical specifications Raymarine HV-300 HyperVision Traversante 12° :
- Materials : Plastic
- Max. depth (ft): 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Tapered: 900
- Frequency (kHz): CHIRP 1.2 MHz / CHIRP 350 kHz / CHIRP high 200 kHz
- Beamwidth: 3D: 180° / Low: 60° / Conical: 25°
- Recordings : Depth / temperature
- Shell materials: Fiberglass / metal
- Cable length (ft/m): 19 / 6
- Varangue survey angles: 0-25
