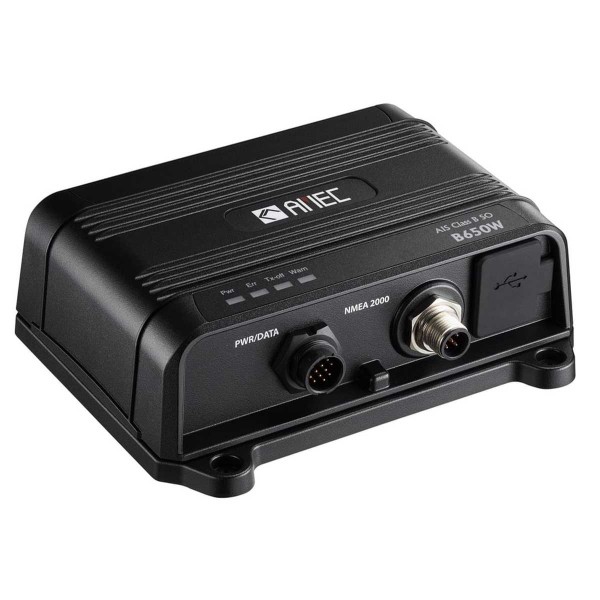

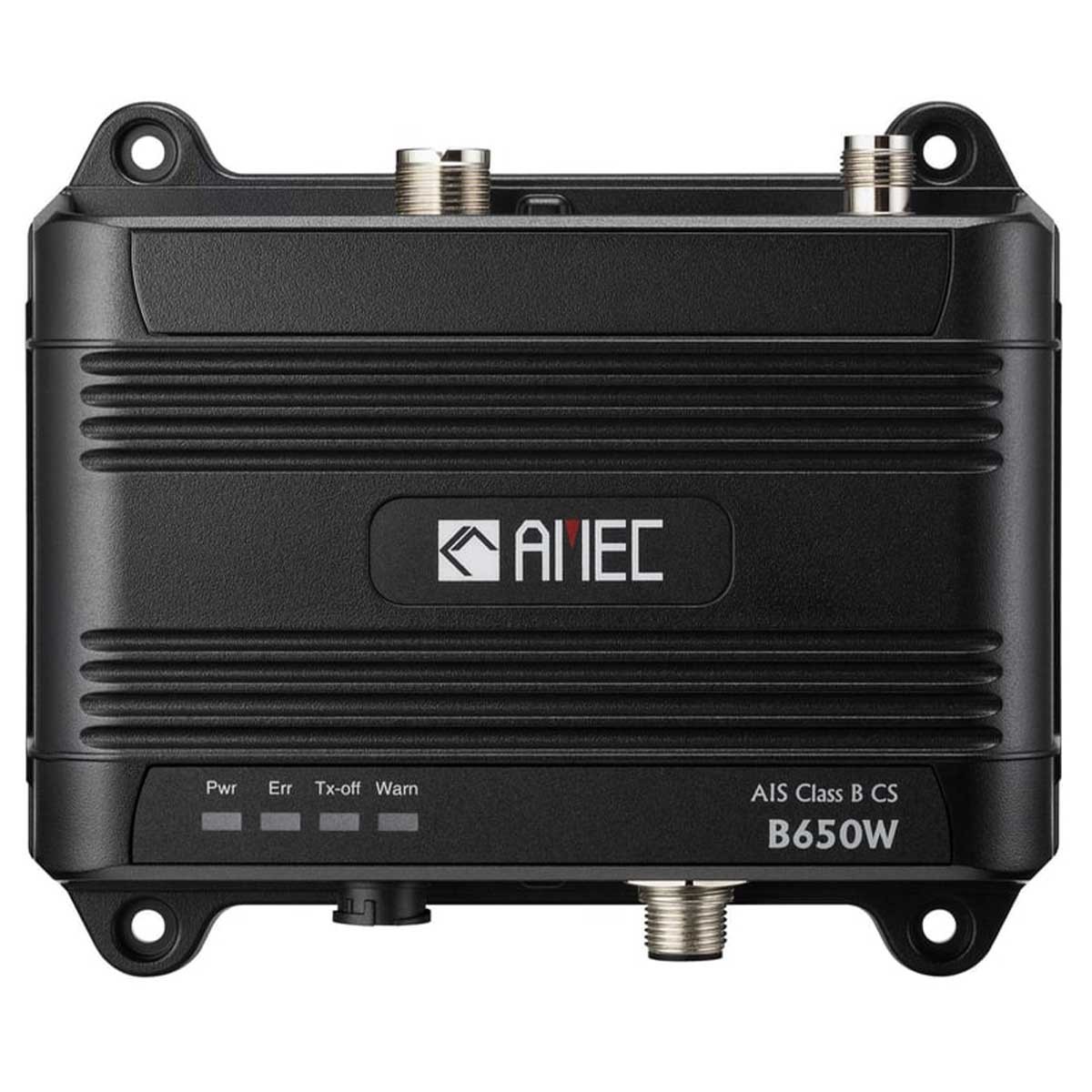

AIS B650W Wi-Fi Transponder

AIS, 5 W Performance with Wi-Fi

The AIS B650W Class B+ 5 W transponder offers high-performance reception and optimized range thanks to its -sensitivity of 111 dBm. Its transmitter-receiver AIS features a 72-channel multi-satellite GNSS system, compatible with GPS, Galileo, GLONASS, and Beidou, to ensure accurate positioning and reliable data exchange.

With Wi-Fi connectivity, you can connect your mobile devices to the transponder in client mode to join an existing network, or in access point mode to wirelessly connect up to 10 mobile devices.

• Transmit Power: 5 W
• -Sensitivity: 111 dBm
• 72-channel multi-satellite GNSS
• Built-in Wi-Fi
• Status LED for quick on-board monitoring

A complete electronic package, designed to deliver range, accuracy, and ease of use in a discreet and elegant format.

Easy integration

The B650W transponder integrates easily with onboard electronics thanks to its NMEA 2000, NMEA 0183, and USB-C. Its NMEA 0183 multiplexing feature allows data to be redistributed to NMEA 0183, USB, and Wi--Fi outputs, depending on the model.

• 12 V or 24 V DC power supply
• Average current draw: 120 mA at 12 V
• Peak current: 1.7 A at 12 V
• Weight: 400 g
• IP68-rated enclosure

Its compact design makes it easy to install on board. The status LEDs provide quick operational monitoring, while the IP68-rated housing ensures reliable protection in marine environments.

KEY FEATURES:

• Status LED
• IP68 Housing
• AIS Class B+ 5 W
• -Sensitivity: 111 dBm
• 72-channel multi--satellite GNSS
• Interfaces: NMEA 2000 -, NMEA 0183 -, USB--C
• Low power consumption: 110 mA - peak 1 A at 12 V

BOX CONTENTS:

• 1 - AMEC B650W Wi-Fi Transponder AIS
• 1 - PA GPS Antenna-03
• 1 - Power and Data Cable
• 1 - USB cable
• 1 - PDF documentation
