AIS B650WS Wi-Fi Transponder & Splitter

Wi-Fi & VHF Splitter

The 5 W Class B+ B650WS transponder offers excellent range thanks to a sensitivity of -111 dBm. Its transmitter-and receiver AIS rely on a 72-channel GNSS system—compatible with GPS, Galileo, GLONASS, and Beidou—for precise positioning and reliable data exchange.

Thanks to the built-in Wi-Fi feature, you can connect your mobile devices to the transponder in client mode to join an existing network, or in access point mode to connect up to 10 devices wirelessly.

• AIS, Class B+ SOTDMA 5 W Transponder
• Receive sensitivity:
• GNSS 72-channel multi---satellite
• Built-in Wi---Fi IEEE 802.11 b/g/n
• Built-in VHF splitter with SO---239 connectors

A sophisticated electronic package that combines range, accuracy, and discretion in an elegant design.

Easy Integration

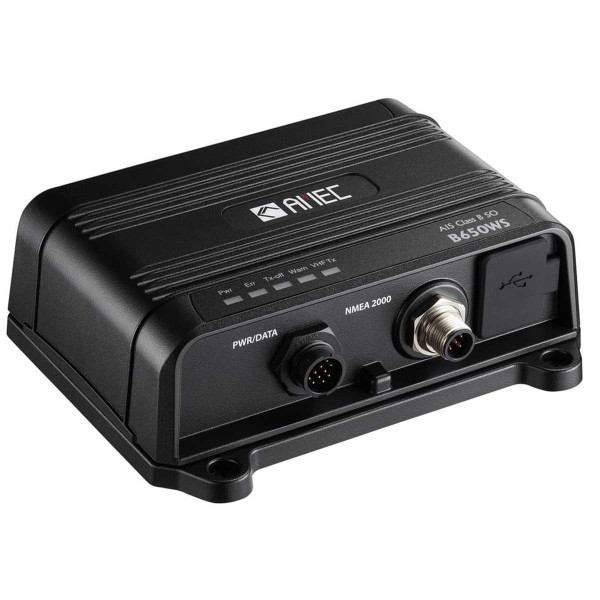

The B650WS connects easily to onboard equipment via its NMEA 2000, NMEA 0183, and USB-C interfaces. It can transmit data AIS to a chartplotter, PC, or compatible navigation software.

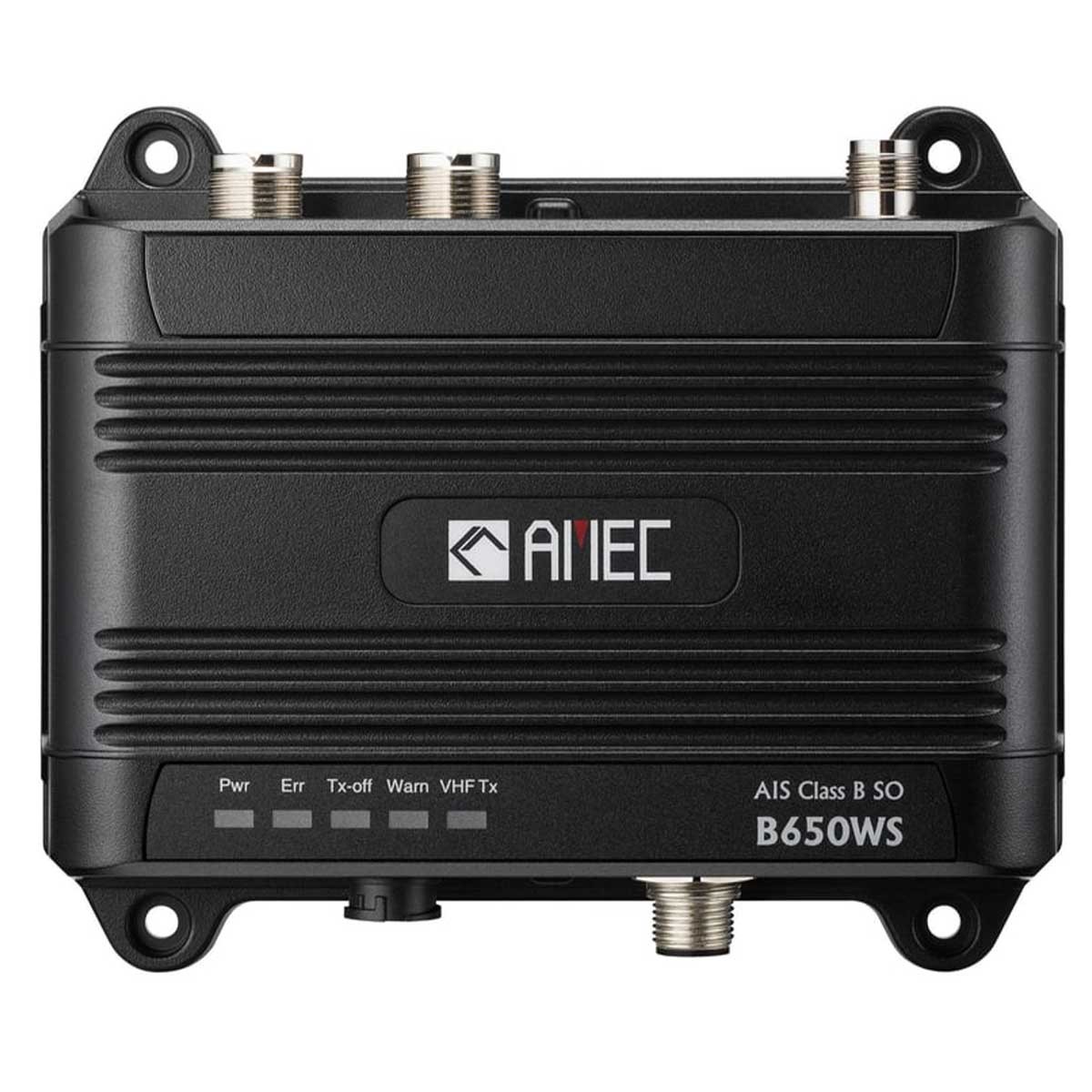

AIS Its status LEDs allow you to quickly check the device’s operation: power, error, warning, transmission, and VHF activity.

• Power supply: 12 V or 24 V DC
• Supply range: 9.6 V to 31.2 V DC
• Average current consumption: 160 mA at 12 V
• Peak current: 1.8 A at 12 V
• Weight: 400 g
• Protection: IP68

KEY FEATURES:

• Status LED
• IP68 housing
• AIS Class B+ 5 W
• -Sensitivity: 111 dBm
• Built-in Wi--Fi, and VHF splitter
• 72-channel multi--satellite GNSS
• Interfaces: NMEA 2000 -, NMEA 0183 -, USB-C

BOX CONTENTS:

• 1 - Transponder AIS AMEC B650WS Wi-Fi & Splitter
• 1 - PA GPS Antenna-03
• 1 - Power and Data Cable
• 1 - USB Cable
• 1 - VHF radio cable (PL259-PL259)
• 1 - PDF documentation
