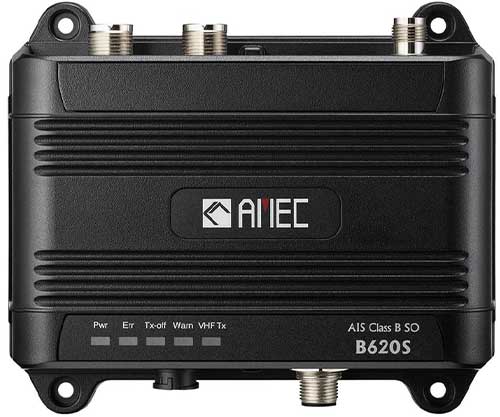

Transponder AIS B620S Splitter

Integrated VHF splitter

The B620S Class B 2W transponder picks up better and farther, thanks to its 111 dBm sensitivity. Its transmitter-receiver AIS works with a 72-channel GNSS compatible with GPS, Galileo, GLONASS and Beidou for precise positions and reliable exchanges.
In addition, the B620S VHF integrates an advanced VHF splitter, simplifying installation by allowing the transponder and a VHF to be connected to the same VHF antenna, while preserving radio performance.

• 2 W emission
• Sensitivity -111 dBm
• GNSS multisatellite 72 channels
• Status LEDs for quick on-board monitoring

An accomplished electronic package that combines useful range, precision and elegance in an unobtrusive format.

Simple integration

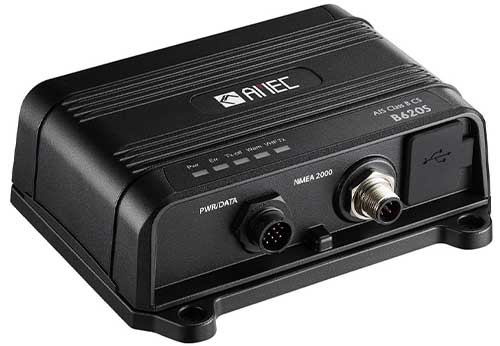

The B620S integrates seamlessly into your network and displays. It features NMEA 2000 and NMEA 0183 protocols and a USB link-C for PCs. Its IP68 enclosure is resistant to shock, vibration, salt and temperature variations.

• Power supply range 9.6 V to 31.2 V
• Average consumption 110 mA - peak 1 A at 12 V
• Dimensions 151.25 x 128.6 x 50 mm
• IP68 rating for durable installation

MAIN POINTS :

• Status LED
• IP68 enclosure
• AIS Class A&B 2 W
• Sensitivity -111 dBm
• GNSS 72 channels multi-satellites
• Interfaces NMEA 2000 - NMEA 0183 - USB-C
• Low power consumption 110 mA - peak 1 A at 12 V

BOX CONTENTS :

• 1 - Transponder AIS AMEC B620S
• 1 - GPS antenna PA-03
• 1 - Power and data cable
• 1 - USB cable
• 1 - VHF radio cable (PL259-PL259)
• 1 - User documentation
