Transpondeur AIS B620

Name: Transpondeur AIS B620
Brand: Amec

A new generation of AIS Class B 2 W transponders, the B620WS uses software-defined radio, WiFi and an integrated VHF splitter to combine performance and reliability.

Designed with a 3rd-generation AIS AMEC motor, it ensures precise exchanges, a sensitivity of -111 dBm and one of the lowest power consumption levels on the market.

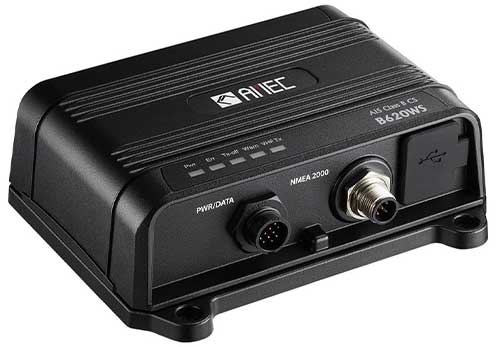

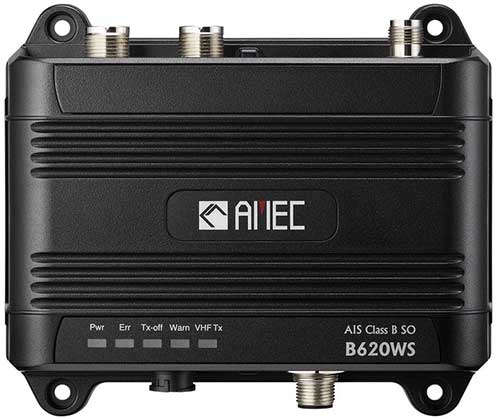

AMEC - Transponder AIS B620WS - WIFI & SPLITTER VHF

The B620WS is a Class B 2W AIS transponder, based on AMEC's 3rd generation AIS engine. It combines excellent reception sensitivity with reliable transmission, in a compact, lightweight IP68-certified housing. Its 72-channel, multi-satellite GNSS receiver guarantees precise positioning, and its power consumption is among the lowest on the market.

Designed for quick and easy onboard installation, it connects to your chartplotter via NMEA 2000 or NMEA 0183 interfaces, or to your PC via a USB cable-C. LED indicators let you know the unit's status at a glance. It complies with all major international certifications and marine standards, so you can sail with peace of mind.


	WIFI & VHF SPLITTER The B620WS class B 2 W transponder offers excellent range thanks to a sensitivity of -111 dBm. Its dual AIS and DSC receiver is based on 72-channel GNSS, compatible with GPS, Galileo, GLONASS and Beidou, for precise positions and reliable exchanges. Thanks to the integrated Wi-Fi function, you can connect your mobile devices to the transponder in client mode, to join an existing network, or in access point mode, to connect up to 10 devices wirelessly. Transmit power 2 W Reception sensitivity -111 dBm GNSS multi-satellites 72 channels Status LEDs for quick on-board control An accomplished electronic package that combines useful range, precision and discretion in an elegant format. Emission 2 W Sensitivity -111 dBm GNSS multi-satellite 72 channels Status LED for quick on-board control An accomplished electronic package that combines useful range, precision and elegance in a discreet format.

Simple integration The B620WS integrates seamlessly into your network and displays. It features NMEA 2000 and NMEA 0183 protocols and a USB link-C for PCs. Its IP68 enclosure is resistant to shock, vibration, salt and temperature variations. Power supply range 9.6 V to 31.2 V Average consumption 110 mA (peak at 1 A at 12 V) Dimensions 151.25 x 128.6 x 50 mm IP68 rating for durable installation
