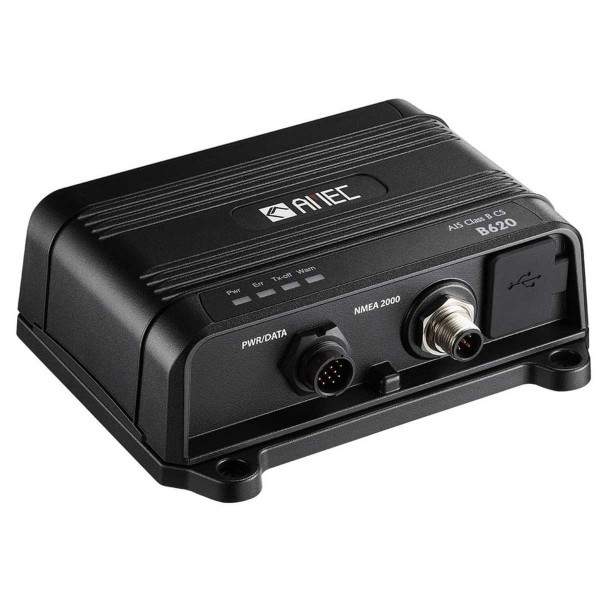

Transponder AIS B620

Performance AIS 2 W

The B620 Class B 2W transponder picks up better and farther, thanks to a sensitivity of 111 dBm. Its transmitter-receiver AIS works with 72-channel GNSS compatible with GPS, Galileo, GLONASS and Beidou for precise positions and reliable exchanges.

• Transmitter 2 W
• Sensitivity -111 dBm
• 72-channel multi-satellite GNSS
• Status LED for quick on-board control

An accomplished electronic package that combines useful range, precision and elegance in a discreet format.

Simple integration

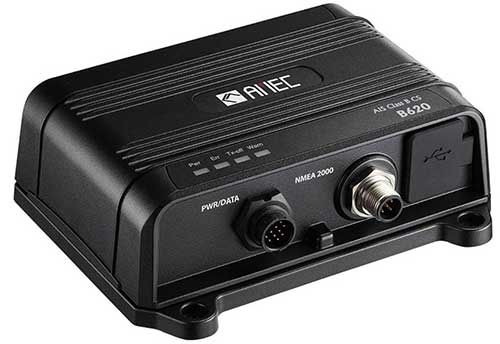

The B620 integrates seamlessly into your network and displays. It features NMEA 2000 and NMEA 0183 protocols and a USB link-C for PCs. Its IP68 enclosure is resistant to shock, vibration, salt and temperature variations.

• Power supply range 9.6 V to 31.2 V
• Average consumption 110 mA - peak 1 A at 12 V

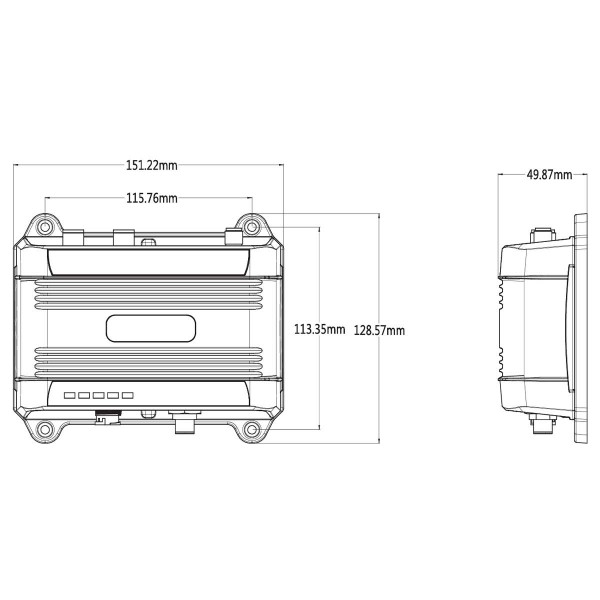

• Dimensions 151.25 x 128.6 x 50 mm
• IP68 rating for durable installation

MAIN POINTS :

• Status LED
• IP68 enclosure
• AIS Class A&B 2 W
• Sensitivity -111 dBm
• GNSS 72 channels multi-satellites
• Interfaces NMEA 2000 - NMEA 0183 - USB-C
• Low power consumption 110 mA - peak 1 A at 12 V

BOX CONTENTS :

• 1 - Transponder AIS AMEC B620
• 1 - GPS antenna PA-03
• 1 - Power and data cable
• 1 - USB cable
• 1 - User documentation
