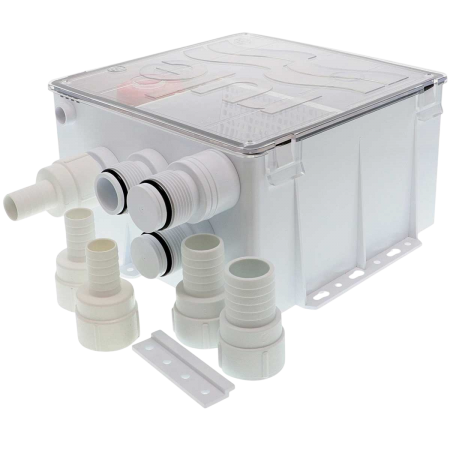

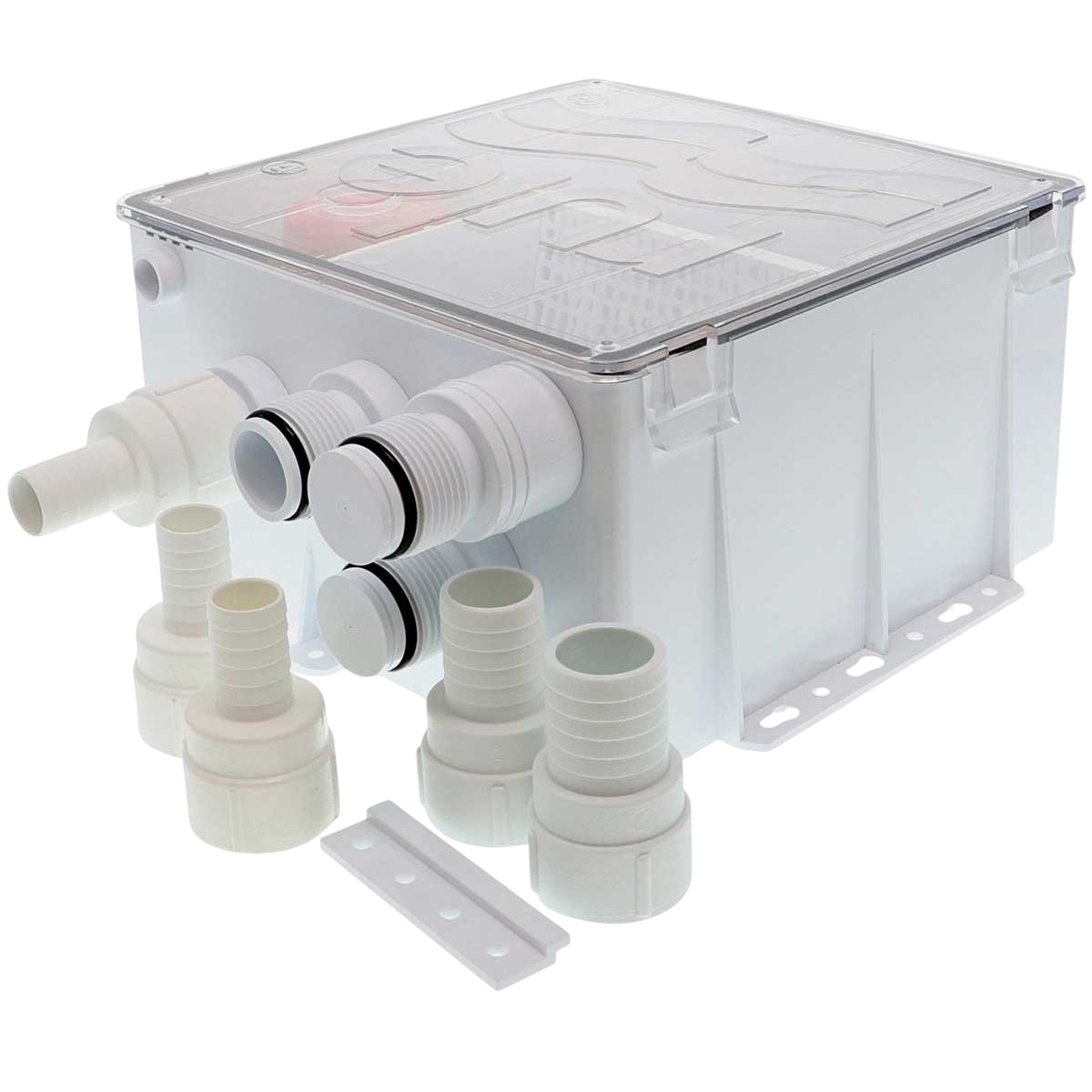

Shower drainage system 24V - 60 L/min

This shower drainage system from Rule is a submersible box that can drain from one to three shower trays at the same time. It is designed for marine use, but can also be installed in a converted vehicle such as a motorhome or van.

This compact, sturdy gray water shower drainage system features an integrated float switch that automatically turns the pump on when the water level rises, and off when it falls. There's also a grid filter to remove impurities, which quickly detaches for cleaning. The Rule shower drainage system also features multi-diameter fittings with built-in non-return valves to prevent backflow. Its transparent top cover allows quick inspection of the interior.

Technical specifications of the 24V shower drainage system from Rule:

• Voltage: 24V
• Fuse: 4A
• Max flow 60 liters/min
• 30L/min at 2m
• Pipe connections: 3 in Ø19mm, 1 in Ø25mm, 1 in Ø29mm
• Dimensions: 240 x 230 x 130 mm
