Italwinch

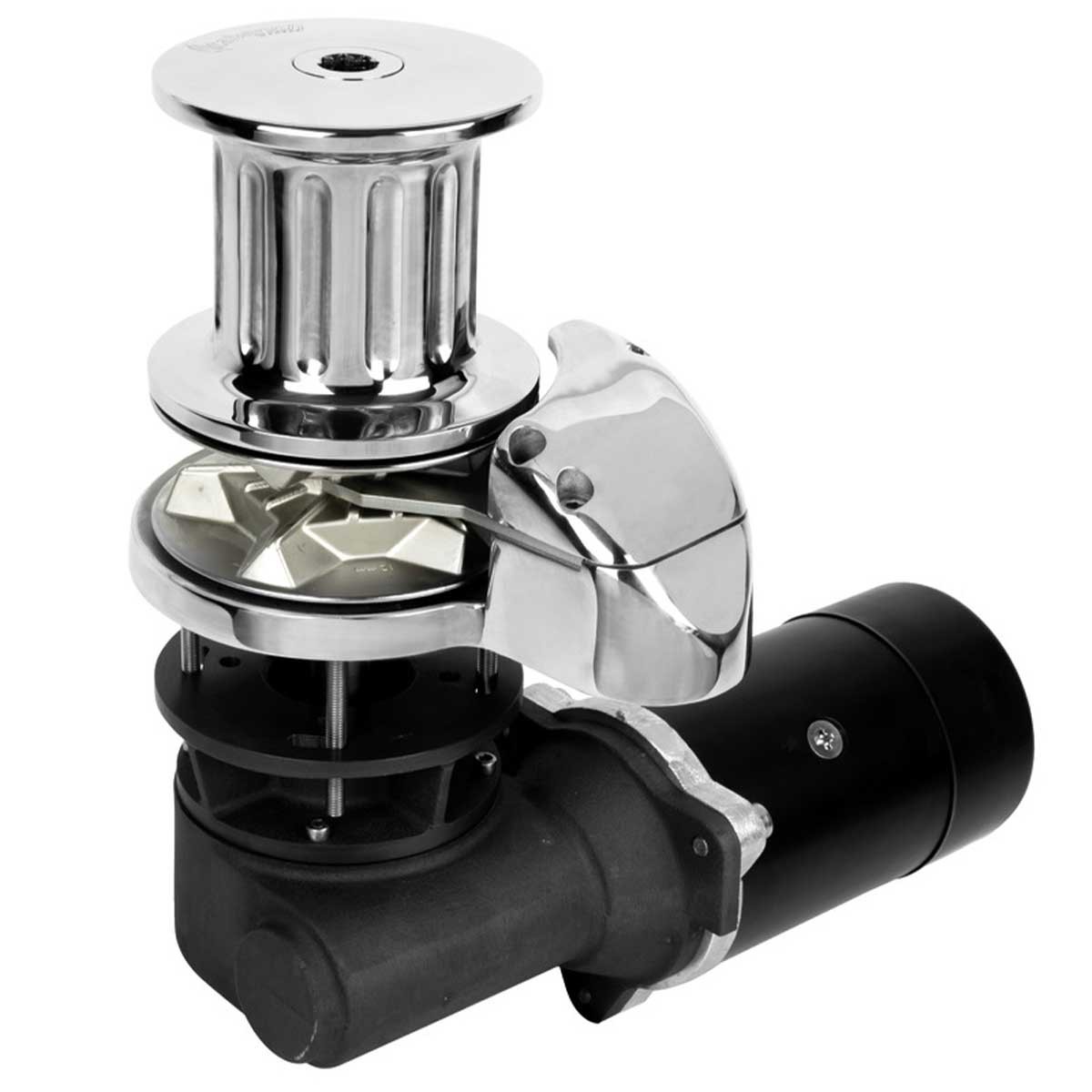

Orchid 2000W 24V vertical windlass with headstock

Ref. OSC-02.405.03

The Italwinch Orchid 24V 2000 W vertical windlass with headstock is designed to speed up and secure your mooring maneuvers on boats up to 22 meters.

Its powerful motor ensures smooth pulling and efficient ascent, with a rated speed under load of 12 m/min. A reassuring choice for more serene anchoring, even when conditions deteriorate.

from
€1,941.58 Tax included
-10%
€2,180.75
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
OUT OF STOCK
1941 loyalty points Earn €19.41 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Variant Motor - V Motor - W Average consumption A Sprocket Ø chain mm Max. towing capacity kg Working load kg Recovery speed m / min peso Ø end mm
    OUT OF STOCK
    Haut cloche + barbotin 12 1700 138 10 1650 240 12 34/31 -
    €1,833.25
    OUT OF STOCK
    Haut cloche + barbotin 24 1700 75 10 1700 250 12 34/31 -
    €2,008.25
    OUT OF STOCK
    Haut cloche + barbotin 24 2000 N/A 12 1700 250 12 28.5 18/19
    €1,941.58
    OUT OF STOCK
    Bottom without bell 12 1700 138 10 1650 240 12 34/31 -
    €1,766.58
    OUT OF STOCK
    Bottom without bell 24 1700 75 10 1700 250 12 34/31 -
    €1,766.58
    OSC-02.405.03

    Data sheet

    Voltage
    24V
    Power
    2000 W
    Doll
    Without doll
    Sprocket diameter
    12 mm
    Description

    Italwinch - Orchid 2000W 24V vertical windlass with headstock

    The Orchid Italwinch windlass is designed for yachtsmen who want simpler, faster and more reliable anchoring. In 24V and 2000 W, it provides a real torque reserve to lift and spin the anchor with an even pull.

    Its vertical headstock design helps to keep a clean layout on deck, while promoting smooth chain descent to the well. It's the ideal solution for more comfortable anchoring, whether you're cruising or out for a day at sea.
    Guindeau vertical Italwinch Orchid 12V 1700W sans poupée

    Power and rapid recovery

    The 24V, 2000 W motor is designed to perform maneuvers without hesitation. Recovery speed under load is rated at 12 m/min, so you can get back on the boat more quickly when the weather changes, or when you need to set off again without waiting.

    • Integrated chain sensor
    • Recovery speed under load: 12 m/min
    • Maximum instantaneous pull: 1750 kg
    • Working load: 270 kg

    For clean anchoring, remember to relieve the load on a chain stopper or dedicated mooring point once the anchor is in place.

    ORCHID VERTICAL WINDLASS TECHNICAL SPECIFICATIONS

    12V 1700 W

    24V 1700 W

    24V 2000 W
    Headstock ❌/✔️ ❌/✔️ ✔️
    Motor power 1700 W 2000 W
    Chain sprocket (mm) 10 mm 12 mm
    Rope / / 18-19-20 mm 3 strands
    Voltage 12 V / 138 A 24 V / 75 A 24 V / 100 A
    Max. pulling capacity 1650 kg 1700 kg 1750 kg
    Working load 240 kg 250 kg 270 kg
    Lifting speed 12 m/min
    Deck thickness
    		37-62 mm
    Weight 31 kg / 34 kg 28.5 kg

    MAIN POINTS :

    • IP67 motor
    • 2-year warranty
    • Lift 12 m/min
    • Recommended circuit breaker 120 A
    • Rated max. pull 1750 kg
    • AISI 316 stainless steel design

    BOX CONTENTS :

    • 1 - Windlass Orchid 24V 2000 W with geared motor
    • 1 - Remote control switch with reversing box
    • 1 - Drilling template
    • 1 - Crank handle
    • 1 - Screw kit
    • 1 - PDF documentation



    Download

    Orchid windlass manual Italwinch

    Orchid vertical windlass manual Italwinch (IT-EN-FR-DE-ES)

    Download (797.7k)
