Italwinch

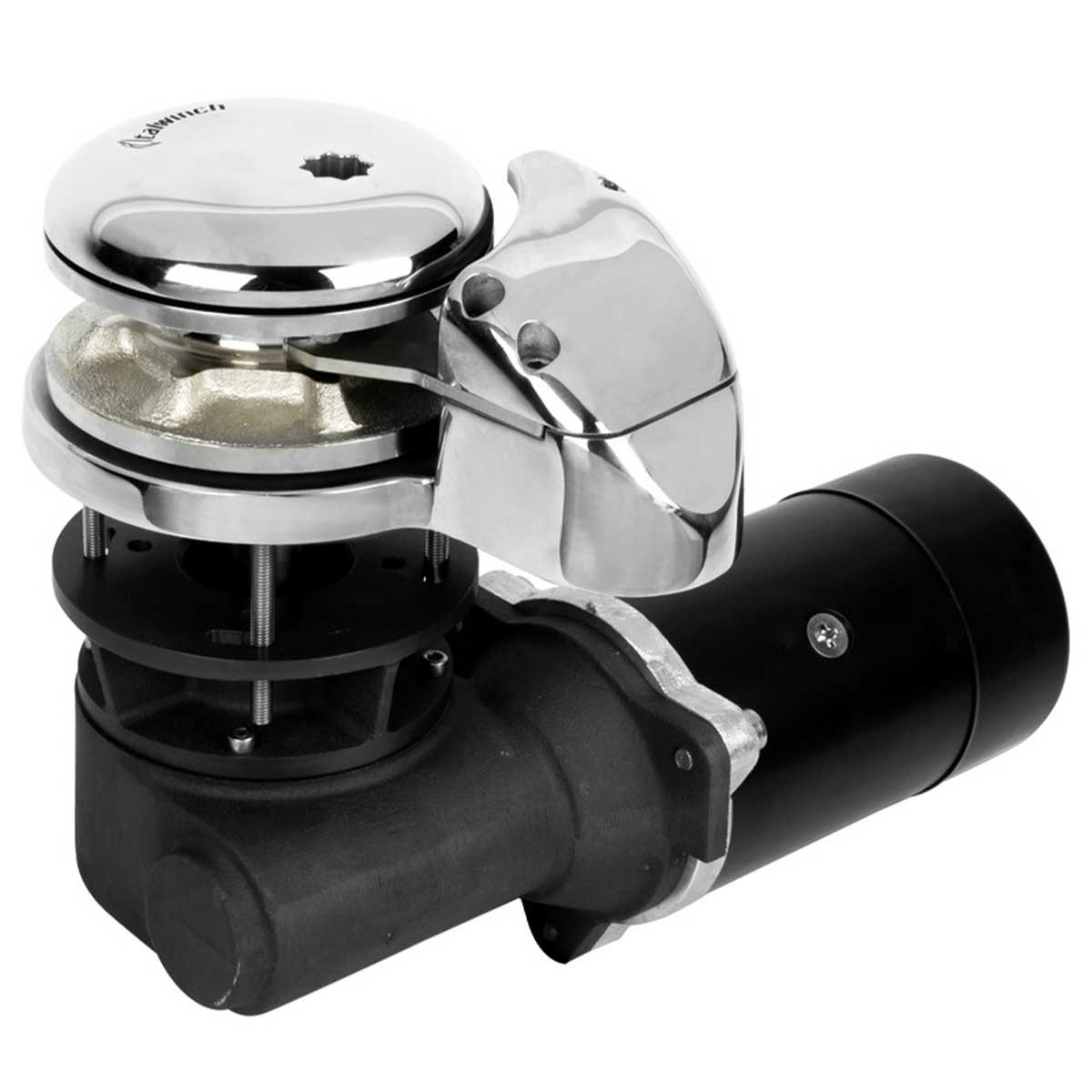

Orchid 1700W 24V vertical windlass without headstock

Ref. OSC-02.405.12

The Italwinch Orchid 24V 1700 W vertical windlass is designed to speed up and secure your mooring manoeuvres on boats up to 22 metres long.

Its powerful motor ensures smooth pulling and efficient lifting, with a rated speed under load of 12 m/min. A reassuring choice for more serene anchoring, even when conditions deteriorate.

from
€1,766.58 Tax included
-10%
€1,983.67
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
OUT OF STOCK
1766 loyalty points Earn €17.66 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Variant Motor - V Motor - W Average consumption A Sprocket Ø chain mm Max. towing capacity kg Working load kg Recovery speed m / min peso Ø end mm
    OUT OF STOCK
    Haut cloche + barbotin 12 1700 138 10 1650 240 12 34/31 -
    €1,833.25
    OUT OF STOCK
    Haut cloche + barbotin 24 1700 75 10 1700 250 12 34/31 -
    €2,008.25
    OUT OF STOCK
    Haut cloche + barbotin 24 2000 N/A 12 1700 250 12 28.5 18/19
    €1,941.58
    OUT OF STOCK
    Bottom without bell 12 1700 138 10 1650 240 12 34/31 -
    €1,766.58
    OUT OF STOCK
    Bottom without bell 24 1700 75 10 1700 250 12 34/31 -
    €1,766.58
    OSC-02.405.12

    Data sheet

    Voltage
    24V
    Power
    1700 W
    Doll
    Without doll
    Sprocket diameter
    10 mm
    Description

    Italwinch - Orchid 1700W 24V vertical windlass without headstock

    The Orchid Italwinch windlass is designed for boaters who want simpler, faster and more reliable anchoring. In 24V and 1700 W, it provides a real torque reserve to lift and spin the anchor with a steady pull.

    Its vertical, headstock-free design helps to keep a clean layout on deck, while promoting smooth chain descent to the well. It's the ideal solution for more comfortable anchoring, whether you're cruising or out for a day at sea.
    Guindeau vertical Italwinch Orchid 12V 1700W sans poupée

    Power and rapid recovery

    The 1700 W, 24V motor is designed to perform maneuvers without hesitation. Recovery speed under load is rated at 12 m/min, so you can get back on the boat more quickly when the weather changes, or when you need to set off again without waiting.

    • Integrated chain sensor
    • Recovery speed under load: 12 m/min
    • Maximum instantaneous pull: 1700 kg
    • Working load: 250 kg

    For clean anchoring, remember to relieve the load on a chain stopper or dedicated mooring point once the anchor is in place.

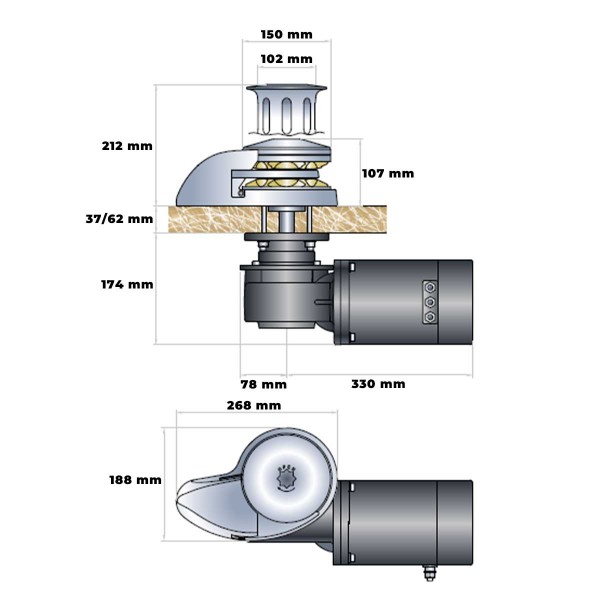

    ORCHID VERTICAL WINDLASS TECHNICAL SPECIFICATIONS

    12V 1700 W

    24V 1700 W

    24V 2000 W
    Headstock ❌/✔️ ❌/✔️ ✔️
    Motor power 1700 W 2000 W
    Chain sprocket (mm) 10 mm 12 mm
    Rope / / 18-19-20 mm 3 strands
    Voltage 12 V / 138 A 24 V / 75 A 24 V / 100 A
    Max. pulling capacity 1650 kg 1700 kg 1750 kg
    Working load 240 kg 250 kg 270 kg
    Lifting speed 12 m/min
    Deck thickness
    		37-62 mm
    Weight 31 kg / 34 kg 28.5 kg

    MAIN POINTS :

    • IP67 motor
    • 2-year warranty
    • Lift 12 m/min
    • Recommended circuit breaker 100 A
    • Rated maximum pull 1700 kg
    • AISI 316 stainless steel design

    BOX CONTENTS :

    • 1 - Windlass Orchid 24V 1700 W with geared motor
    • 1 - Remote control switch with reversing box
    • 1 - Drilling template
    • 1 - Crank handle
    • 1 - Screws and bolts
    • 1 - PDF documentation



    Download

    Orchid windlass manual Italwinch

    Orchid vertical windlass manual Italwinch (IT-EN-FR-DE-ES)

    Download (797.7k)
