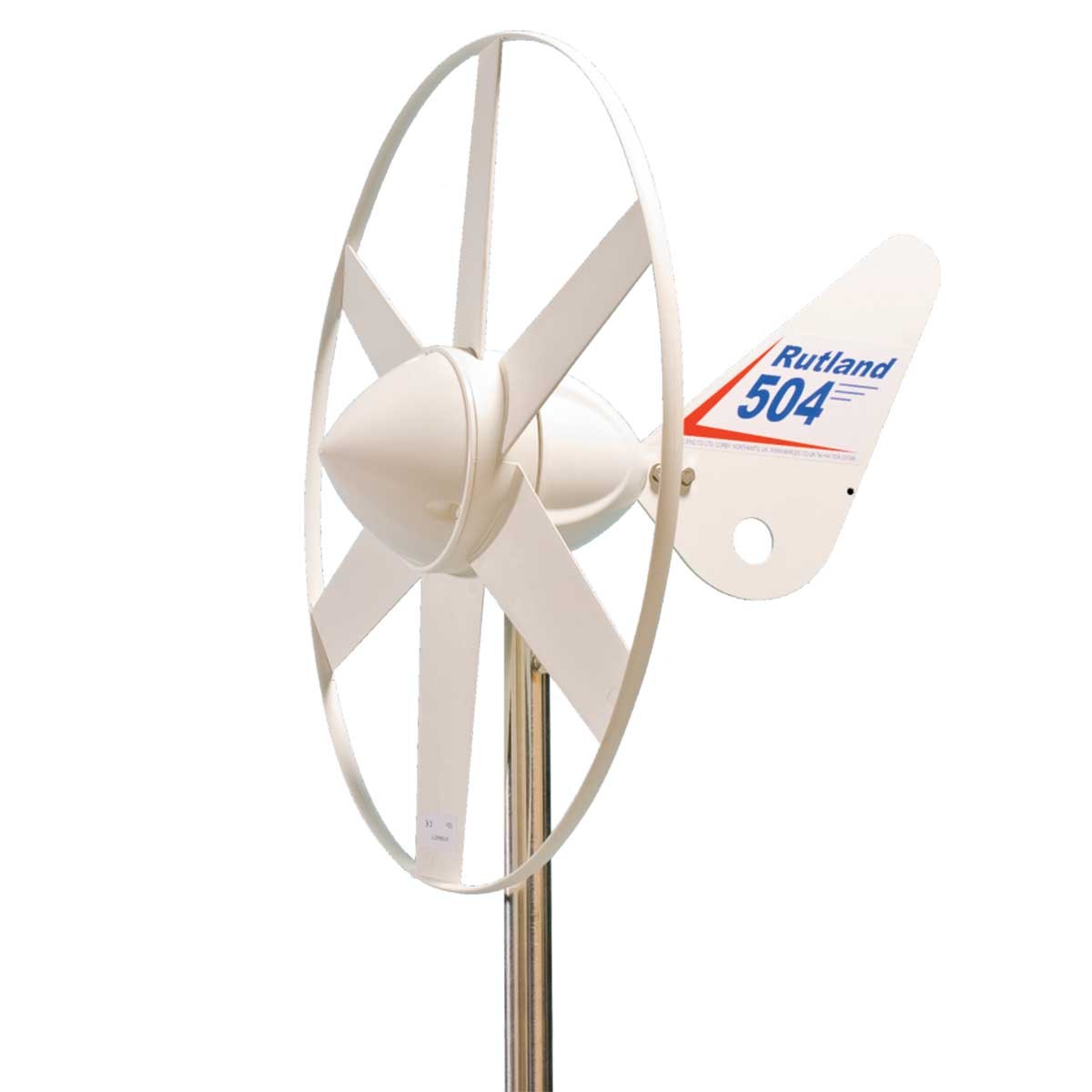

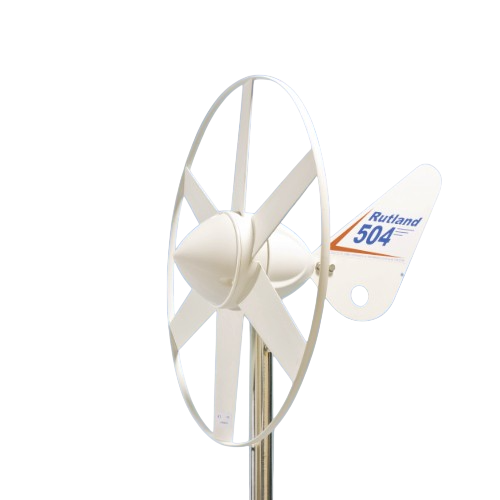

Rutland 504 12 V Wind Turbine

DAILY 12 V CHARGING

The Rutland 504 is designed to provide a DC power source for charging 12 V batteries in areas where consumption remains moderate: lighting, electronics and navigation equipment. Its low-wind start-up allows you to recover watts even in calm conditions.

• Power supply D.C. for 12 V batteries
• Low-wind starting (5 knots)

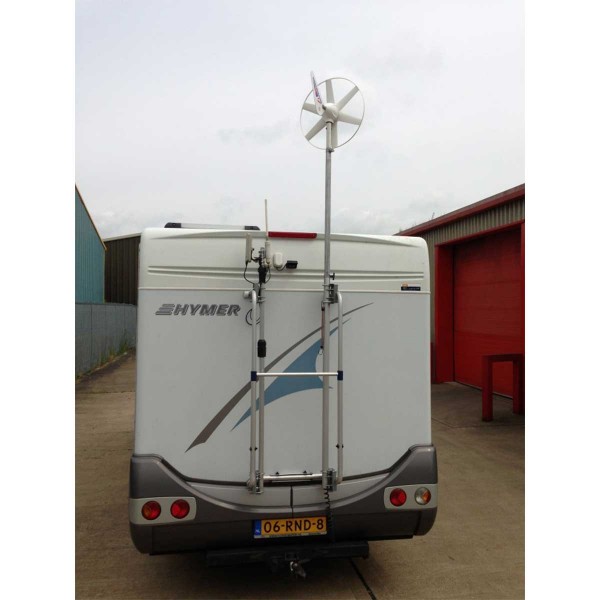

• Designed for sailboats or recreational vehicles
• Stable, aerodynamic design

In practice, it's a simple solution for maintaining the charge at anchor, limiting engine use and keeping batteries ready, especially when sunshine isn't constant.

MAST-MOUNTED INSTALLATION

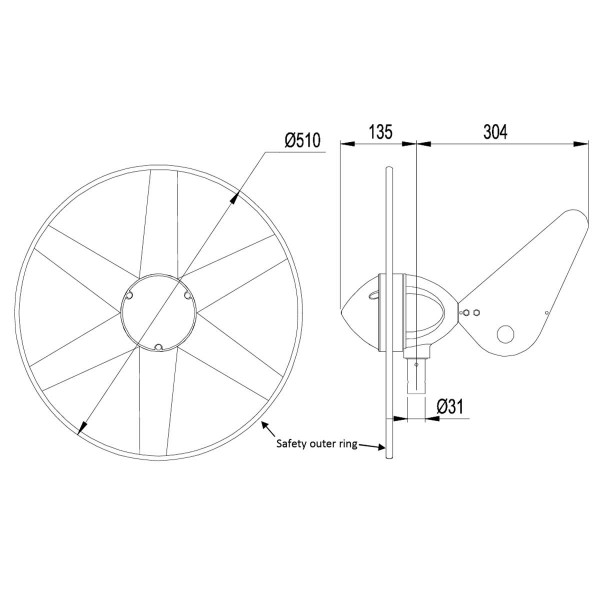

To protect the wind turbine and guarantee smooth operation, the installation must comply with certain recommendations. The mast must have a certain diameter at the top, to ensure the necessary clearance between the blades and the mast.

• A 31.7 mm inside diameter mast is required
• Maximum outside diameter 38.1 mm for at least 50 cm at the top
• On board, installation at least 2 m above deck-
• Use suitable cable to limit losses

The charge controller(not supplied) must be installed close to the batteries, and the connections must remain permanent. The wind turbine must never be operated in open circuit, to avoid overvoltage.

MAIN POINTS :

• 12 V battery charging
• Standard mast mounting
• Starts from 3m/s
• Stable marine design
• UV-resistant materials
• Marine or land use

BOX CONTENTS :

• 1 - Rutland 504 wind turbine with generator
• 1 - Front cone + 3 rivets
• 1 - Fuse holder + fuse for regulator
• 1 - Fin + mounting hardware
• 1 - Allen key 5 mm
• 1 - 2-channel terminal block
• 2 - M8 x 16 screws + lock washers
• 1 - PDF documentation
