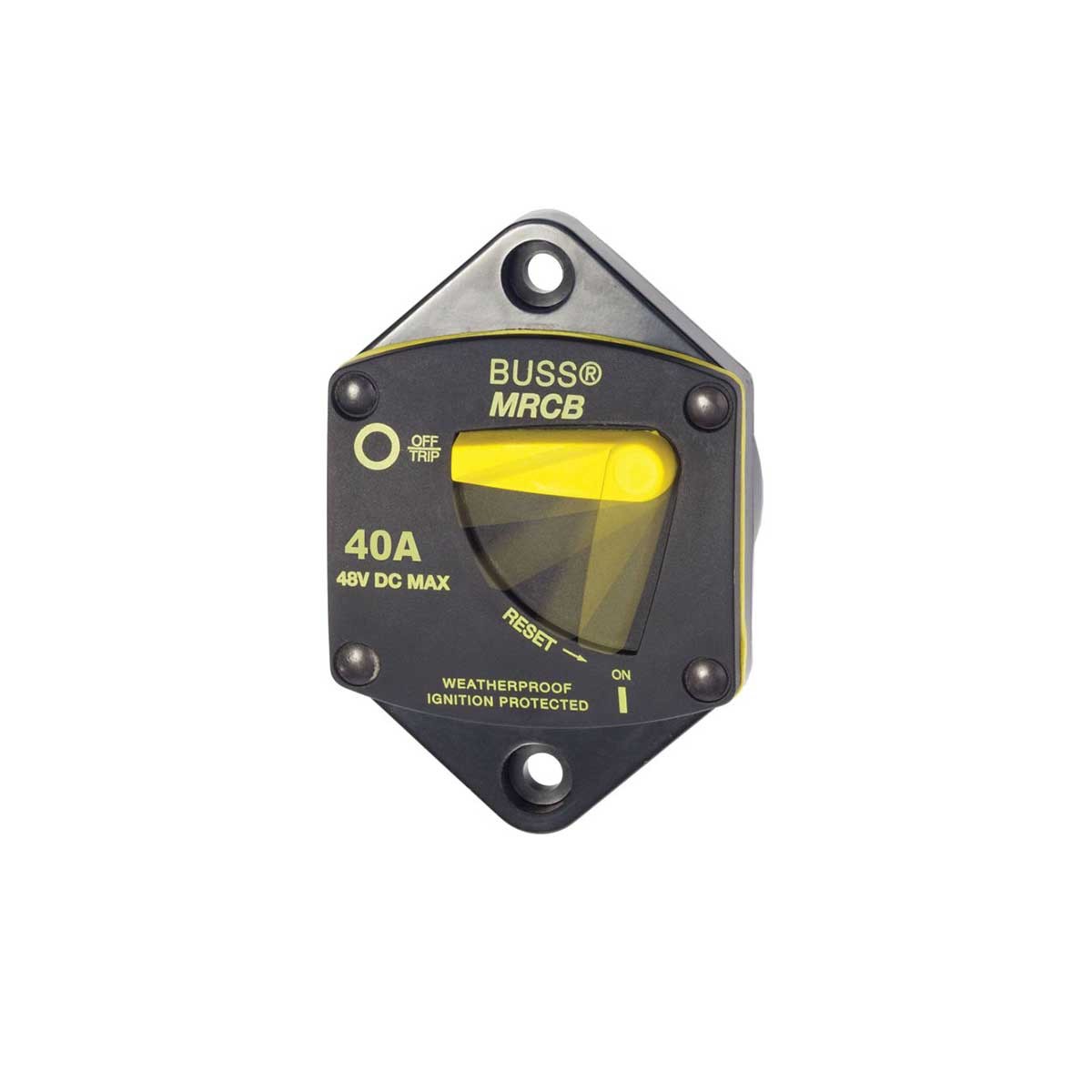

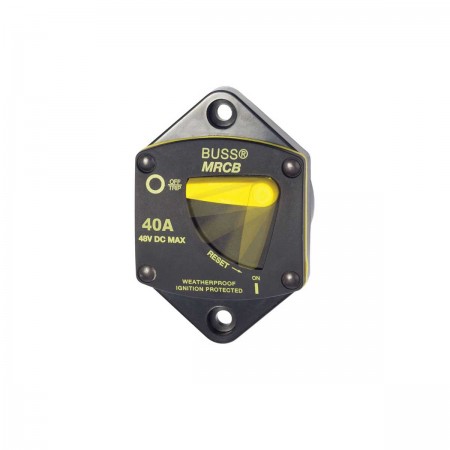

187 Series Circuit Breaker - Panel Mount 40A

Blue Sea Systems - 187 Series Circuit Breaker - Panel Mount 40A

• Clear operation using a single lever
• The "Trip Free" design cannot be held "ON" during a fault current condition.
• Recessed mounting holes for a clean appearance
• Large clearance around the terminal studs to accommodate heavy-gauge cable lugs.
• Heavy-duty 5/16 M8 terminals ensure high-torque connections.
• The large vertically/horizontally oriented lever indicates the tripped status.
• Ignition protected - Safe installation aboard gasoline-powered boats.
• * Do not use as a switch when high inrush currents are expected.

Technical specifications:

• Current rating: 40A
• Maximum voltage: 48V DC
• Panel mount
• IP66
• Waterproof
