Smart Energy Control red temperature and energy controller
Ref.IA002
The Indel - Isotherm Smart Energy Control Temperature Controller is a sophisticated processor-based control device that dramatically reduces the energy consumption of your refrigeration appliances by up to 50% while reducing greenhouse gas emissions.
⚠️ This product is for use with SP water-cooled and air-cooled chillers only
INDEL - ISOTHERM - Temperature and energy controller Smart Energy Control red
The Smart Energy Control temperature and energy controller continuously analyzes a range of environmental factors to optimize the use of the compressor in your Indel - Isotherm refrigerator or cooling unit.
Thanks to the sensor, the system measures the refrigerator's internal temperature to intensify food cooling when the boat's engine is active or when shore power is in use. At sea, it uses the cold accumulated in refrigerated products to limit compressor activity.
It is compatible with all Secop/Danfoss BD50F compressor-based chillers and refrigerators with a Danfoss 101N0212/101N0510 electronic control unit.
SIMPLE INSTALLATION
The Smart Energy Control temperature and energy controller is easy to install.

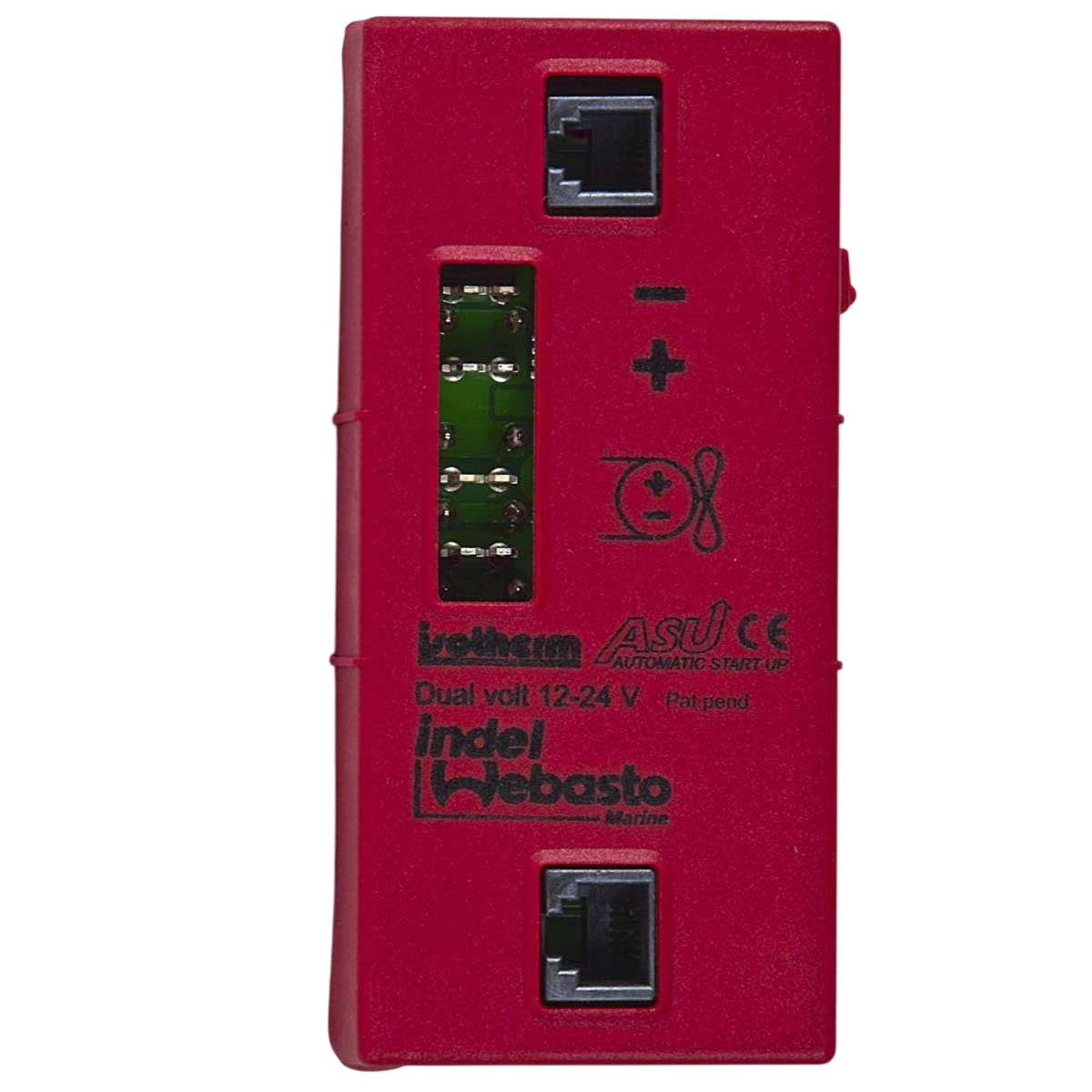

The red box attaches directly to the Danfoss 101N0212/101N0510 electronics box , and controls compressor power and performance.
The temperature sensor will be located inside the refrigerated compartment on a cooling unit or refrigerator. Some refrigerators have a preformed recess to accommodate the temperature sensor.
The thermostat can be installed either inside or outside the compartment , as required.
