GHP Reactor 40 Mechanical/Refit

Name: GHP Reactor 40 Mechanical/Refit
Brand: Garmin

The GHP Reactor 40 Mechanical/Refit with Garmin controller is a autopilot designed for all boats, compatible with all types of steering. Quick and easy to install, the high-performance GHP Reactor 40 keeps your boat under control.

GARMIN REACTOR 40 MECHANICAL/REFIT WITH GHC 50 CONTROLLER - The expert for car drivers

Designed for cruisers and sailboats, autopilot Garmin GHP Reactor 40 is quite simply the most responsive ever imagined. The Must! The GHP Reactor 40 has all the functions you need for sailing or motoring: course keeping, wind mode, gybing/tacking and much more. No matter what the sea state, this pilot keeps on course with frightening precision!

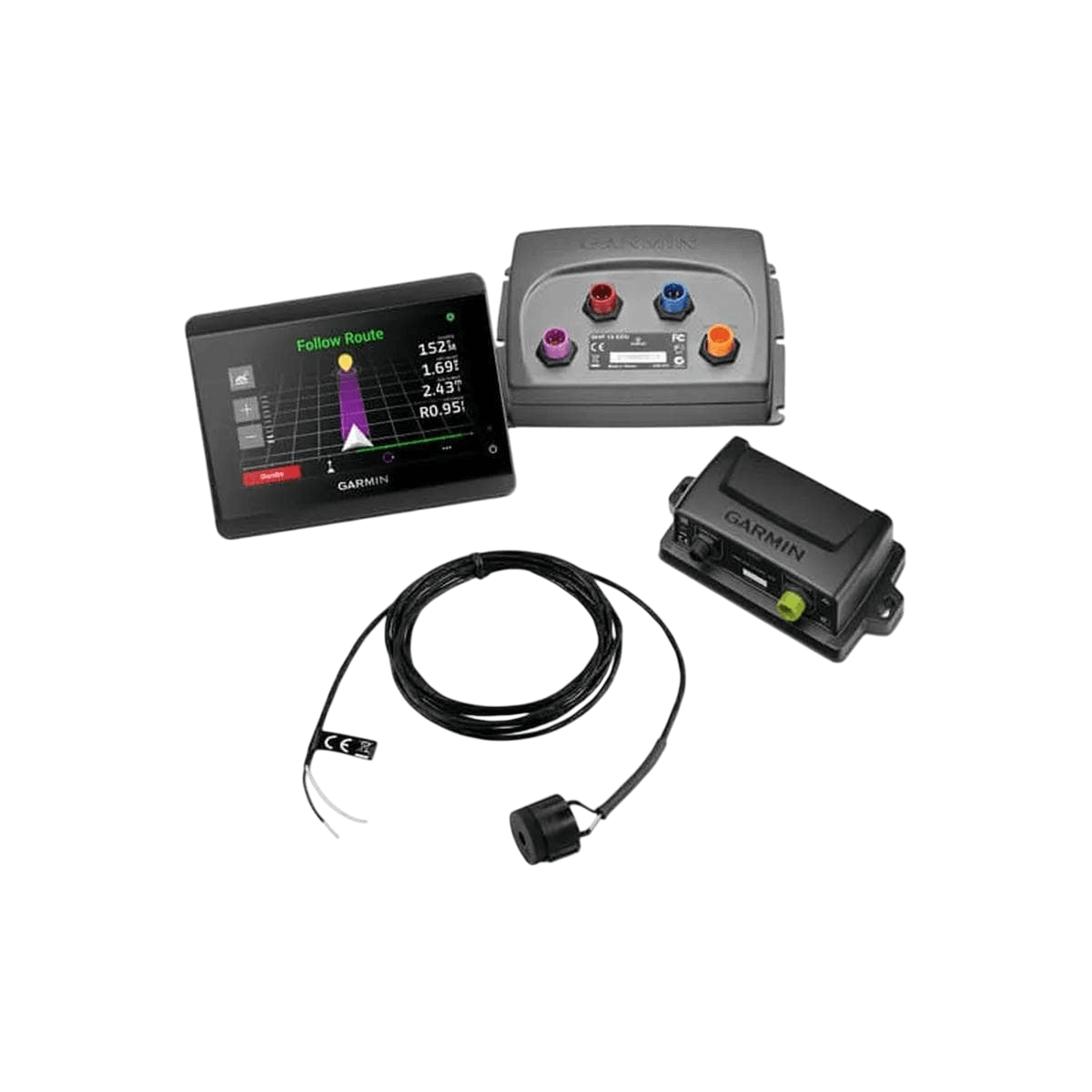

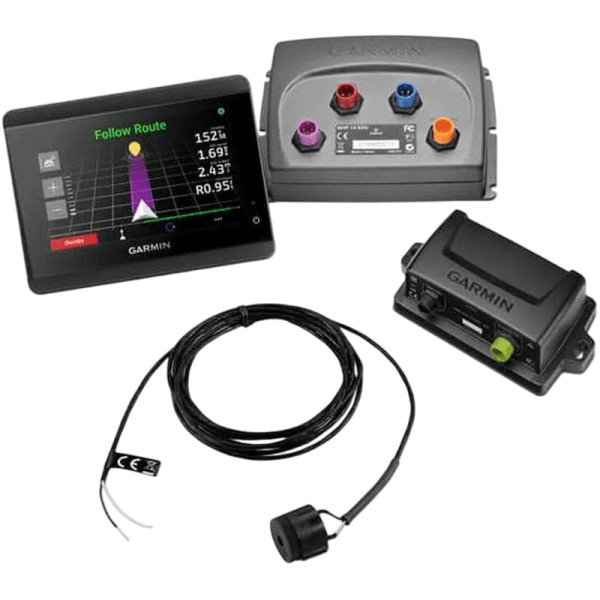

The system consists of an ECU electronic computer, a CCU compass sensor and a GHC 50 control console (depending on package).
All that's left to do is connect this assembly to the power unit. There are several possibilities:

You already have a hydraulic pump, cylinder or rotary motor on board:

Connect the power unit with cable 010-11533-00
Add a GRF10 rudder angle sensor 010-11829-00

Now you've reused your power unit and are ready to sail.

You don't have a power unit:

Garmin cylinders are suitable for most medium to large sailboats.

Linear cylinder type 1 : up to 13 tons displacement
Compact cylinder type 2 : up to 22 tons displacement
Linear cylinder type 2 : up to 35 tons displacement


	GHC 50 pilot controller Ideal for controlling your boat with confidence, the autopilot GHC 50 Garmin console will assist you at the helm wherever you go. It features a bright 5" edge-to-edge touchscreen for an elegant design. You can also share your settings with your Garmin multifunction displays. Your autopilot can be connected via the Garmin Marine Network 'GMN' or via wireless connectivity.

THE CCU: THE BRAIN OF THE REACTOR 40 The Course Computer Unit (CCU) is used to determine course and engine speed. With its advanced 9-axis solid-state attitude and heading reference system (AHRS), it offers virtually unlimited mounting possibilities, whatever the orientation. At the same time, this new system considerably reduces heading errors, course deviations, helm movements and power consumption, while providing optimum on-board comfort.

	ELECTRONIC CONTROL UNIT The robust electronic control unit provides a reliable and stable power supply to autopilot. No autopilot spares you from commissioning and calibration procedures. Aware that electronic equipment shouldn't get in the way of taking to the sea, Garmin has reduced and simplified this step as much as possible. That's the power of simplicity.

GHP REACTOR 40 WIRING KIT Connected to an NMEA0183 or NMEA2000 compatible chartplotter, the autopilot Reactor will follow the programmed route or recorded course perfectly. In addition,with a compatible Garmin chartplotter and G2 Vision, G3 and G3 Vision charts, you benefit from optional features such as autoguiding, which automatically calculates the best route to take to reach your destination. This kit includes the following items: 1 - ECU power cable 3 - NMEA 2000 T-connectors 1 - NMEA 2000 power cable 2 - NMEA 2000 branch cable (2m) 1 - CCU / ECU interconnection cable (6m) 1 - NMEA 2000 male and female terminations 1- Buzzer: connect it to the CCU for audible alerts in case of danger.
